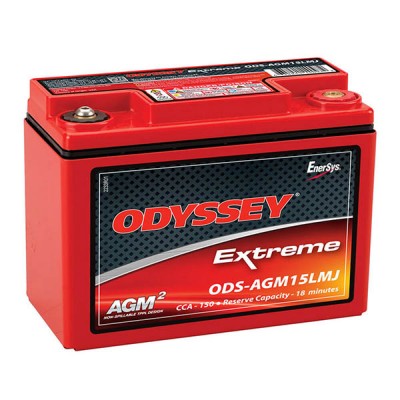

Odyssey Extreme Dry Cell Battery ODS-AGM15LMJ (PC545MJ)

$256.95/Each
Part# 11-08082
MFR Model# ODS-AGM15LMJ

Overview

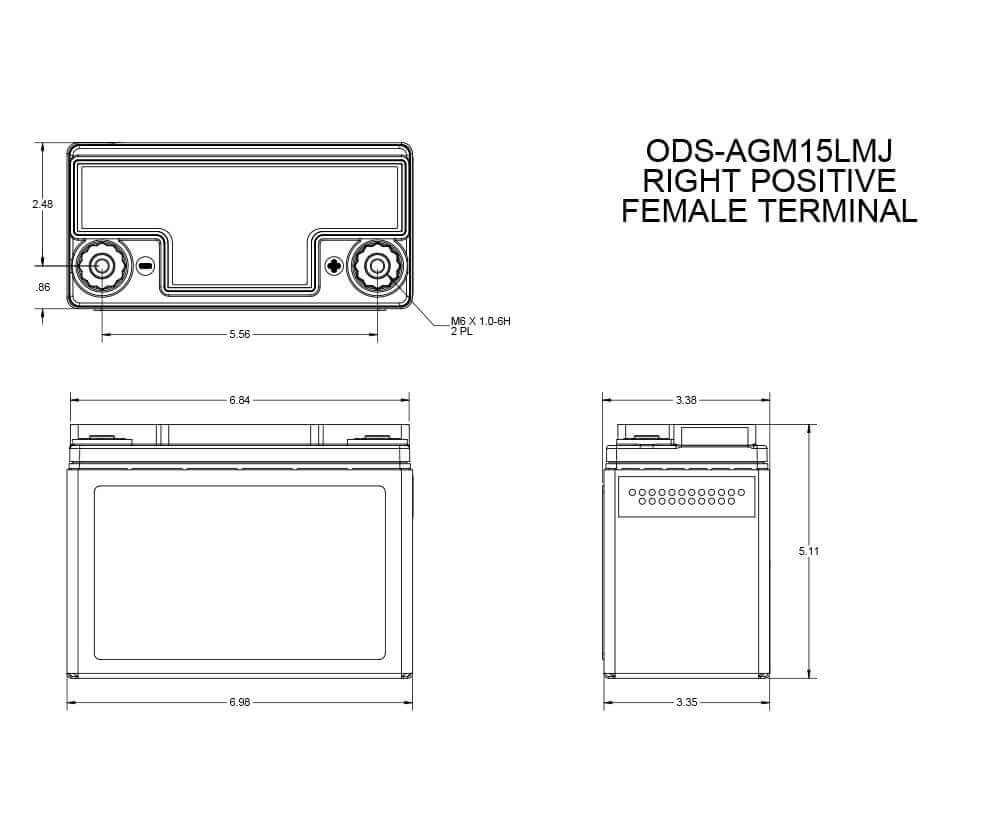

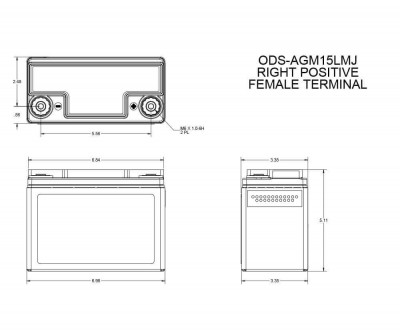

The PC545 MJ measures 7.0" in length, 3 3/8" wide, and 5 1/8" tall. The PC545 MJ weighs 12.6 pounds.

  • 545 cranking amps for 5 seconds
  • 495 cranking amps for 10 seconds
  • 420 cranking amps for 20 seconds
  • Short circuit current over 1200A
  • 14Ah
  • 18 minute reserve capacity with 25amp load
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What diameter bolts are used to attach cables to this Odyssey Dry Cell battery PC545 MJ?

The terminal bolts are metric M6 on this battery.

Q: Is the Odyssey PC 545 model lithium or lead acid construction?

It is a lead acid battery but it is a non-spillable AGM design.

Q: Can this Odyssey Dry Cell PC545 MJ battery be used in certified aircraft?

No. This is intended for use in experimental aircraft.
