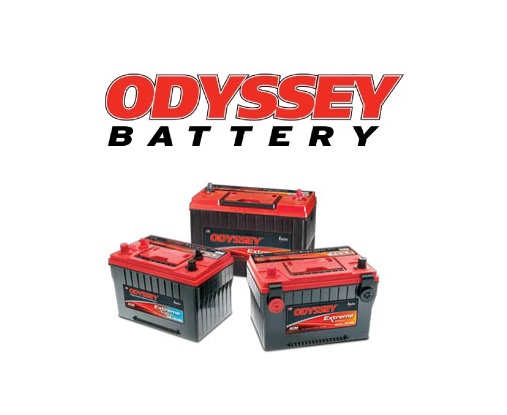

Odyssey Dry Cell Batteries

66 Reviews 7 Answered Questions
From $244.95 to $398.00
Main Image
Description Part Number Price Buy
Odyssey Extreme Battery Ods-AgM16Cl ( Pc-625 )
11-08080
$290.95
Quantity
Odyssey Extreme Battery Ods-AgM15L ( PC545 )
11-08081
$244.95
Quantity
Odyssey Extreme Battery Ods-AgM15Lmj ( PC545Mj )
11-08082
$260.95
Quantity
Odyssey Extreme Battery Ods-AgM16L ( PC680 )
11-02233
$255.95
Quantity
Odyssey Extreme Battery Ods-AgM28L ( PC925 )
11-05173
$381.00
Quantity
Odyssey Extreme Battery Ods-AgM28 ( PC925L )
11-17113
$368.00
Quantity
Odyssey Extreme Battery Ods-AgM28Lmj ( PC925Mj)
11-01651
$398.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Odyssey batteries, with an eight year design life saves you time and money because you do not have to replace your battery as often. It is also the only battery that is capable of delivering a large number of deep cycles ­ up to 400 when fully discharged or up to 500 when discharged to 80%. Plus, the battery is specially designed for high vibration applications.

Unlike conventional batteries that need to be recharged every six to twelve weeks, the Odyssey battery will maintain up to 50% state of charge after 2 yrs if stored at room temperature (77şF). At temperatures lower than 77°F, storage times will be even longer. The cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40şF. Odyssey batteries may be shipped worry free by UPS/Federal Express or air. 2 Year Warranty

Specifications

MODEL Volt PHCA**
5 sec		 CCA* HCA MCA Nominal Capacity Res
Cap
Min.		 Length
In.
(mm)		 Width
In.
(mm)		 Height
In.
(mm)		 Weight
lbs
(kg)		 Terminal Torque
Spec
lbs
(max)		 Internal
Res
(mΩ)		 Short
Circuit
Current
20HrAh 10HrAh

PC310		 12 310 100 200 155 8 7 9 5.43
(138.0)		 3.39
(86.0)		 3.98
(101.0)		 5.9
(2.7)		 M4 - Receptacle 8.9
(1.0)		 27.1 455A

PC370		 12 425 200 315 270 15 14 25 7.9
(200.0)		 3.0
(77.0)		 5.5
(140.0)		 12.5
(5.7)		 M6 Stud 35
(3.9)		 13.5 891A

PC535		 12 535 200 300 265 14 13 21 6.70
(170.2)		 3.90
(99.1)		 6.24
(158.5)		 12.0
(5.4)		 M6 - Receptacle 40
(4.5)		 8 1000A

PC545		 12 460 150 280 220 13 12 18 7.00
(177.8)		 3.38
(85.9)		 5.17
(131.3)		 11.4
(5.2)		 M6 - Receptacle 50
(5.6)		 10 1200A

PC625		 12 540 220 420 340 18 17 26 6.70
(170.2)		 3.90
(99.1)		 6.95
(176.5)		 13.2
(6.0)		 M6 - Receptacle 40
(4.5)		 7 1800A
PC680 12 520 170 350 280 16 16 24 7.27
(184.7)		 3.11
(79.0)		 7.55
(191.8)		 15.4
(7.0)		 M6 - Receptacle† or SAE 3/8” Receptacle 50
(5.6)		 7 1800A

PC925		 12 900 330 610 480 28 27 48 6.64
(168.7)		 7.05
(179.1)		 5.83
(148.1)		 26.0
(11.8)		 M6 - Receptacle† or SAE 3/8” Receptacle 60
(6.8)		 5 2400A

PC950		 12 950 400 600 500 34 32 60 9.8
(250.0)		 3.8
(97.0)		 6.1
(156.0)		 20.0
(9.0)		 M6 Stud 35
(3.9)		 7.1 1700A

PC1100		 12 1100 500 800 650 45 43 87 9.8
(250.0)		 3.8
(97.0)		 8.1
(206.0)		 27.5
(12.5)		 M6 Stud 35
(3.9)		 5.1 2450A

PC1200		 12 1200 540 860 725 42 40 78 7.87
(199.9)		 6.66
(169.2)		 7.60
(193.0)		 38.2
(17.4)		 M6 - Receptacle† or SAE 3/8” Receptacle 60
(6.8)		 4.5 2600A

PC1220		 12 1220 680 960 860 70 64.8 135 10.94
(278.0)		 6.88
(175.0)		 7.48
(190.0)		 45.6
(20.7)		 DIN Lead Post N/A 5.7 2200A

75-PC1230		 12 1230 760 1050 815 55 50 110 9.46
(240.3)		 7.08
(179.8)		 7.22
(183.4)		 45.5
(20.6)		 SIDE 3/8” Receptacle 60
(6.8)		 2.5 3100A

75/86-PC1230		 12 1230 760 1050 815 55 50 100 9.46
(240.3)		 7.08
(179.8)		 7.92
(201.2)		 45.5
(20.6)		 Top SAE SIDE 3/8”
Receptacle		 60
(6.8)		 2.5 3100A

PC1350		 12 1350 850 1080 960 95 88.5 195 13.90
(353.0)		 6.88
(175.0)		 7.48
(190.0)		 60.4
(27.4)		 DIN Lead Post N/A 4.2 2900A

25-PC1400		 12 1400 850 1150 950 65 55 130 9.46
(240.3)		 6.84
(173.7)		 8.69
(220.7)		 50.0
(22.7)		 SAE 60
(6.8)		 2.5 3100A

35-PC1400		 12 1400 850 1150 950 65 55 130 9.46
(240.3)		 6.84
(173.7)		 8.69
(220.7)		 50.0
(22.7)		 SAE 60
(6.8)		 2.5 3100A

34-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 6.76
(171.7)		 7.88
(200.2)		 49.5
(22.4)		 SAE 60
(6.8)		 2.5 3100A

34R-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 6.76
(171.7)		 7.88
(200.2)		 49.5
(22.4)		 SAE, Positive Right Terminal 60
(6.8)		 2.5 3100A

34M-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 6.76
(171.7)		 7.95
(201.9)		 49.5
(22.4)		 SAE - and 3/8” Stud (Pos.)
5/16” Stud (Neg.)		 60
(6.8)		 2.5 3100A

34/78-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 7.08
(179.8)		 7.88
(200.2)		 49.5
(22.4)		 TOP SAE SIDE 3/8”
Receptacle		 60
(6.8)		 2.5 3100A

78-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 7.08
(179.8)		 7.34
(186.4)		 49.5
(22.4)		 SIDE 3/8” Receptacle 60
(6.8)		 2.5 3100A

PC1700		 12 1550 810 1325 1175 68 65 142 13.03
(331.0)		 6.63
(168.4)		 7.78
(197.6)		 60.9
(27.6)		 M6 Receptacle† or SAE 3/8”
Receptacle		 60
(6.8)		 3.5 3500A

65-PC1750		 12 1750 950 1350 1070 74 65 145 11.83
(300.5)		 7.20
(182.9)		 7.50
(190.5)		 58.0
(26.3)		 SAE 60
(6.8)		 2.0 5000A

PC1800-FT		 12 1800 1300 1600 1450 214 190 475 22.75
(577.9)		 4.9
(125.0)		 12.44
(316.0)		 132.3
(60.0)		 3/8" Stud 80
(9.0)		 3.3 3800A

31-PC2150		 12 2150 1150 1545 1370 100 92 205 13.06
(331.7)		 6.89
(175.0)		 9.59
(243.6)		 77.8
(35.3)		 3/8" Stud
or SAE		 150-220
(16.9-22.6)		 2.2 5000A

31M-PC2150		 12 2150 1150 1545 1370 100 92 205 13.00
(330.2)		 6.80
(172.7)		 9.39
(238.5)		 77.8
(35.3)		 SAE - and 3/8” Stud (Pos.)
5/16” Stud (Neg.)		 150-220
(16.9-
22.6)		 2.2 5000A

PC2250		 12 2250 1225 1730 1550 126 114 240 11.26
(286.0)		 10.59
(269.0)		 9.17
(233.0)		 86.0
(39.0)
SAE Terminal and 3/8" Stud 		100
(11.0)
for 3/8"
Stud Only		 2.1 5000A
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Excellent product. Very compact, yet packs a good punch. Well-made and lasts a long time

Ali S Verified Purchase

Odyssey Extreme Battery Ods-AgM16L ( PC680 )
October 28, 2024

John A Verified Purchase

Odyssey Extreme Battery Ods-AgM16L ( PC680 )
July 24, 2024

My engine turns over so fast now I have to hold the brakes!

Rodney C Verified Purchase

Odyssey Extreme Battery Ods-AgM15L ( PC545 )
July 23, 2024

Works better than Concord battery at half the price and much lighter. Greater starting power.

Art C Verified Purchase

Odyssey Extreme Battery Ods-AgM16L ( PC680 )
July 11, 2024

This is my second PC680, the battery is actually in my roadster and never failed to start the car. The existing battery lasted 6 years hopefully this one will do as well.

Michael P Verified Purchase

Odyssey Extreme Battery Ods-AgM16L ( PC680 )
April 13, 2024

Tr O Verified Purchase

Odyssey Extreme Battery Ods-AgM16Cl ( Pc-625 )
April 7, 2024

Fits he standard battery box in my RV9a kit. Looking at Odysseys website it appeared the present batch of batteries might be longer or wider than the one I received from Aircraft Spruce although they carry the same 680 PC designation.

Robert F Verified Purchase

Odyssey Extreme Battery Ods-AgM16L ( PC680 )
March 30, 2024

Great dry cell battery. Strong output, this is my third one.

John P Verified Purchase

Odyssey Extreme Battery Ods-AgM16L ( PC680 )
March 19, 2024

as advertized

Jean-yves L Verified Purchase

Odyssey Extreme Battery Ods-AgM16L ( PC680 )
March 6, 2024

Fred L Verified Purchase

Odyssey Extreme Battery Ods-AgM16L ( PC680 )
March 5, 2024

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the PC 625 approved for installation in a C172A?

No, the Odyseey dry cell batteries, including the PC625 model, are not FAA Approved and cannot be installed in certified aircraft.

Q: Can I use the All Odyssey Dry Cell Batteries in my Beech Skipper with field approval?

This is not a TSO'd battery. As every FSDO is different, you would need to check with your local FSDO prior to purchase to see if they will accept this for a field test.

Q: Is there an Odyssey Dry Cell Battery that is certified for my American Champion 7GCBC? Thanks

The only model that is FAA Approved for installation in certiefied aircraft is the SBS J-16, our part number 11-01945. It is approved for installation in the Piper PA18 and PA19. Any other certified installation will require a field approval.

Q: Can Iuse a regular batt charger on an oddesey battery. Max charging amps? Deep cycle setting or normal?

Per the manufacturer: The odyssey dry cell battery can be charged using a regular battery charger. A deep cycle charger is recommended, as long as the charger does not exceed 15V the amperage can be any value.

Q: Can I use a regular battery charger on an Odyssey battery? Max charging amps? Deep cycle setting or normal?

A regular battery charger can be used. There is no limit to the inrush current, so any amount of amps are fine. The voltage cannot exceed 15.2. Deep cycle and AGM are the better settings for odyssey.

Q: Can the Odyssey PC625 battery be mounted in a horizontal orientation?

Yes, the PC-625 can be mounted in a horizontal orientation.

Q: Should I use a trickle charger to keep it charged?

Yes, a trickle charger is recommended to keep your batteries charged while they are not in use.
