Overview

Features

• Converts low solar energy to efficient pulse charge.
• DAY: Charge & maintain. NIGHT: monitor charge level.
• Safe to leave connected. Full electronic protection.
• Saves your ‘dead’ battery from as low as 4V.
• Displays battery state of charge.
• Energy saving technology.
• Efficient dual conversion.
• Complete 24-7 maintenance.
• Works in any weather!
• CHARGE
• Saves flat batteries from as low as 4V with its unique pulse action.
• Fastest charge is delivered as ‘smart charge’ control selects pulse or continuous charge according to sunlight strength.
• Intelligent maintenance continues the next day if battery retained charge overnight, otherwise the program reverts to OPTIMIZE step.
• MONITOR
• Battery condition is displayed every 3 seconds. Ready indication for STD, hi-performance AGM and lithium LFP batteries. Draws less than 0.5mA during monitor mode.
• Automatically switches to CHARGE when solar power is sufficient.
• MOUNTING

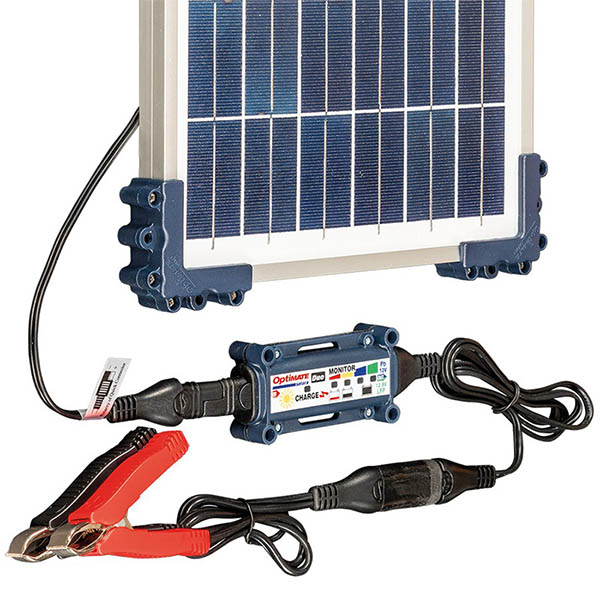

• The OptiMate DUO charger-monitor controller is separate to the solar panel and can be placed close to the vehicle or battery so that charge and maintenance progress can be easily followed. The solar panel must be mounted and angled to receive direct sunlight. The reach / distance between battery and panel is 315cm / 124″. To extend, use OptiMate Cable Extenders O-03, O-13 or O-23 and insert between the solar panel and the OptiMate DUO charge-monitor controller.

Specifications

• Outer dimension, including corner mount brackets:
• Width = 24.9 cm / 9.8 ”
• Height = 37.6 cm / 14.8 ”
• Depth = 2.6 cm / 1 ”
• Solar panel:
• Power: 10 Watts (max.)
• Volts: 12V / 12.8V
• Use: Outdoor.
• Style: Weatherproof – polycrystalline, aluminium frame with 4 x mounting brackets, output cable 200cm / 80″ with SAE connector.
•


• OptiMate Charge controller:
• Charging AMPS: 0.83A from 10W panel (max. average current), 3-5A pulse current
• Use: Indoor / Outdoor (lowest temperature: -4°F / -20°C).
• Save: Low Volt Start of 4V
• Ideal for: STD, AGM & GEL 12V batteries from 2 – 240Ah and Lithium LFP 12.8V / 13.2V batteries
• Input: 15 – 22V
• Style: Weatherproof charge controller case.
• Safe: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.

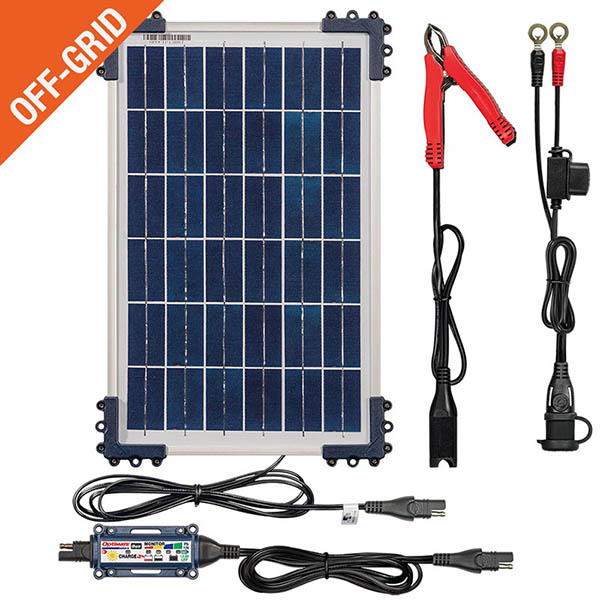

In The Box

• Weatherproof battery lead, standard battery clip set
• 10W solar panel
• OptiMate Solar DUO controller
