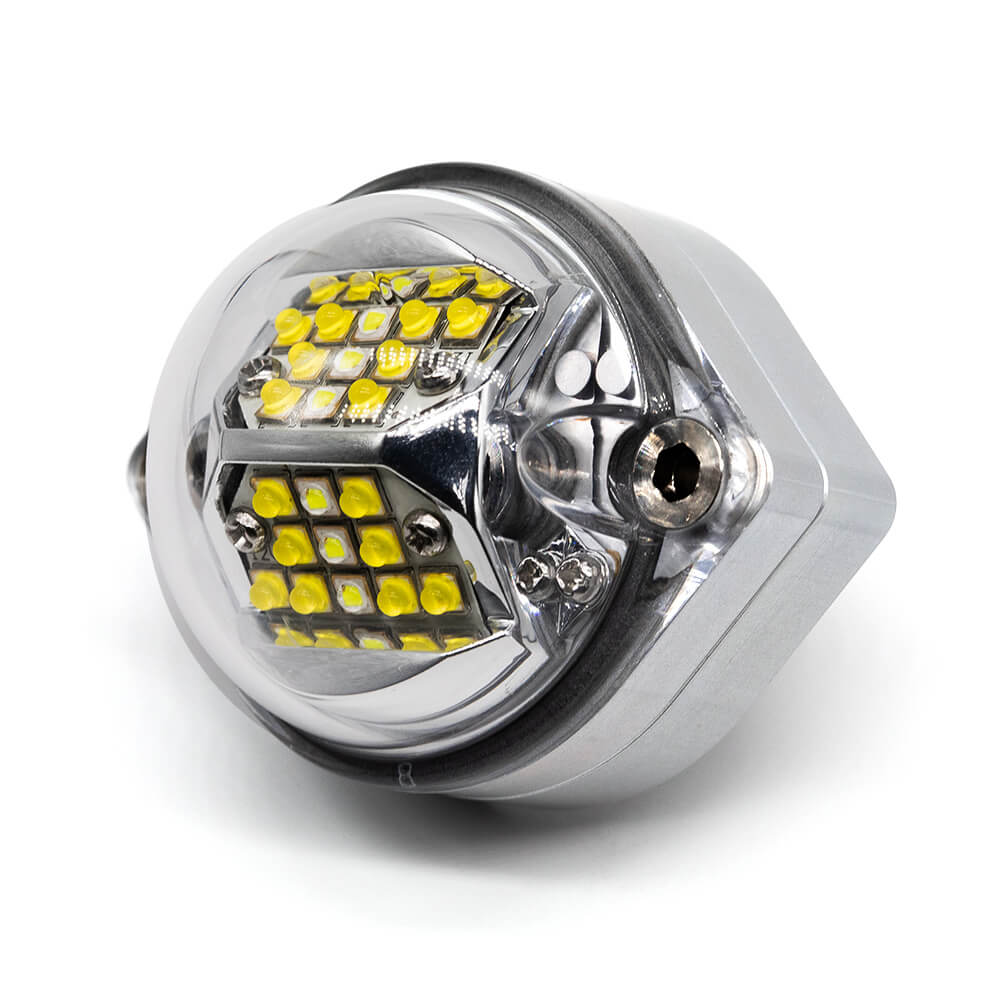

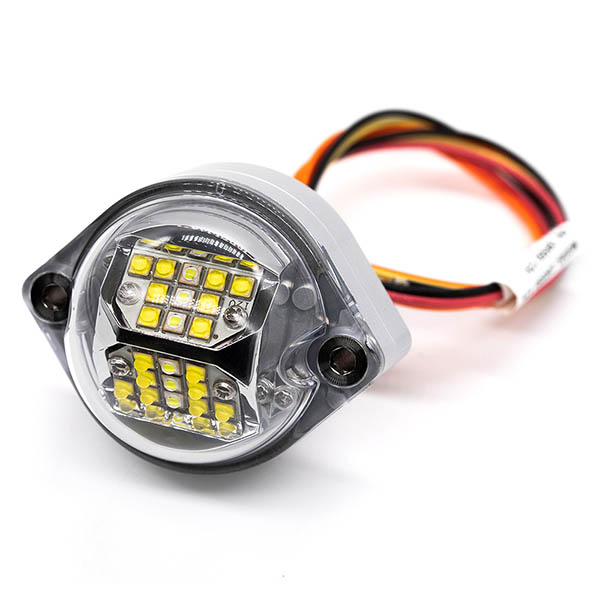

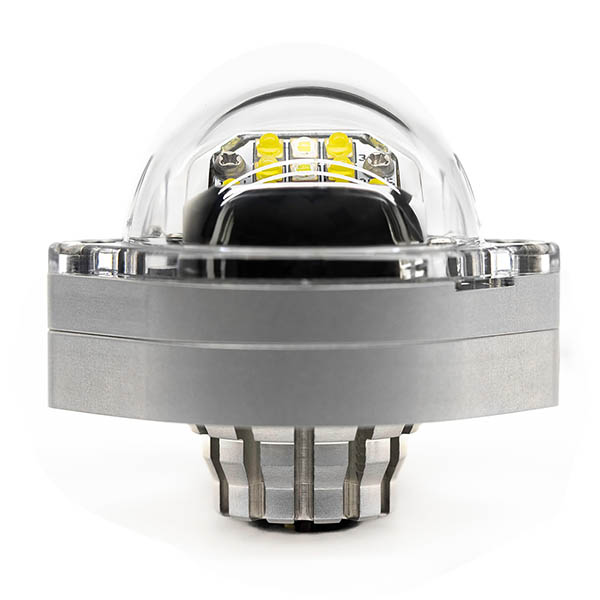

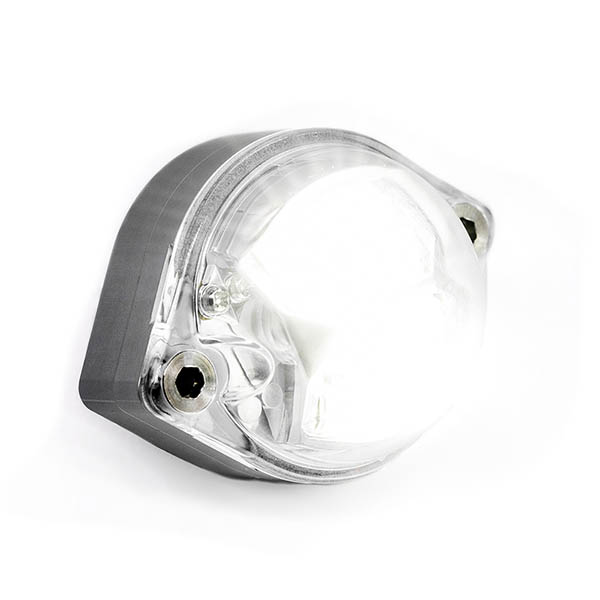

Whelen Orion™ 550 White Tail Position / Anti-Collision LED Light FAA TSO
MFR Model# 01-0772070V01
Overview
| Whelen Aerospace Technologies (WAT) provides the highest performance lighting system for the Orion 550 Series products incorporating both the WHITE flashing Anti-Collision light, and the Tail Position light functions. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. FAA/TSO |
Specifications
- Weight: .20 lbs
- Voltage: 14 VDC
- Current Draw: Position light .2 Amps. Anti-Collision Lights 3.8 Amps
- Smaller base profile to easily mount in supercubs, Vans RV’s, and aircraft with tapered tail fins
- Reduces electrical load and heat output
- Increases safety, see and be seen
- FAA/TSO
Documents
Reviews
Bolted onto my 1940 Taylorcraft 👍
Verified Purchase
Whelen Orion 550 Series White Tail Position/Anti-Collision Light Assembly, 14DC OR5501V
Verified Purchase
Whelen Orion 550 Series White Tail Position/Anti-Collision Light Assembly, 14DC OR5501V
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These are not required for the OR550 but the OR550 can fit into any of these light plates.
Per Whelen: We do not have a lumens spec, the output for the 01-0772070V01 is to meet the TSO-C96a Class II anti-collision light spec which is 400 Effective Candle Power and the Navigation light is rated at a TSO-C30c requirements for a white tail navigation light.
The power draw is identical to the ORION 500 Series. The main difference is the overall size of this light and that it has a much shallower heat sync in the back so it can fit all of the legacy products footprint.
Yes, this light is FAA TSO Approved.
Yes the Orion 550 will fit onto a Mooney M20J. We have added the drawing to the Documents section of the web page for download and review.
This only comes in 14v at this time. Whelen recommends the Orion 500 for a 24/28v application.
No special cable needed. Simple 18 awg wire is all that is required.
The orientation does matter on the 11-18745. This is designed to be mounted in a vertical orientation with the screw holes located at 12 O'clock and 6 O'clock.
We have no data supporting this items use in automotive applications. It is intended for aircraft install.
There are separate power wires for the navigation and anti-collision lights, so it could be wired separately.
