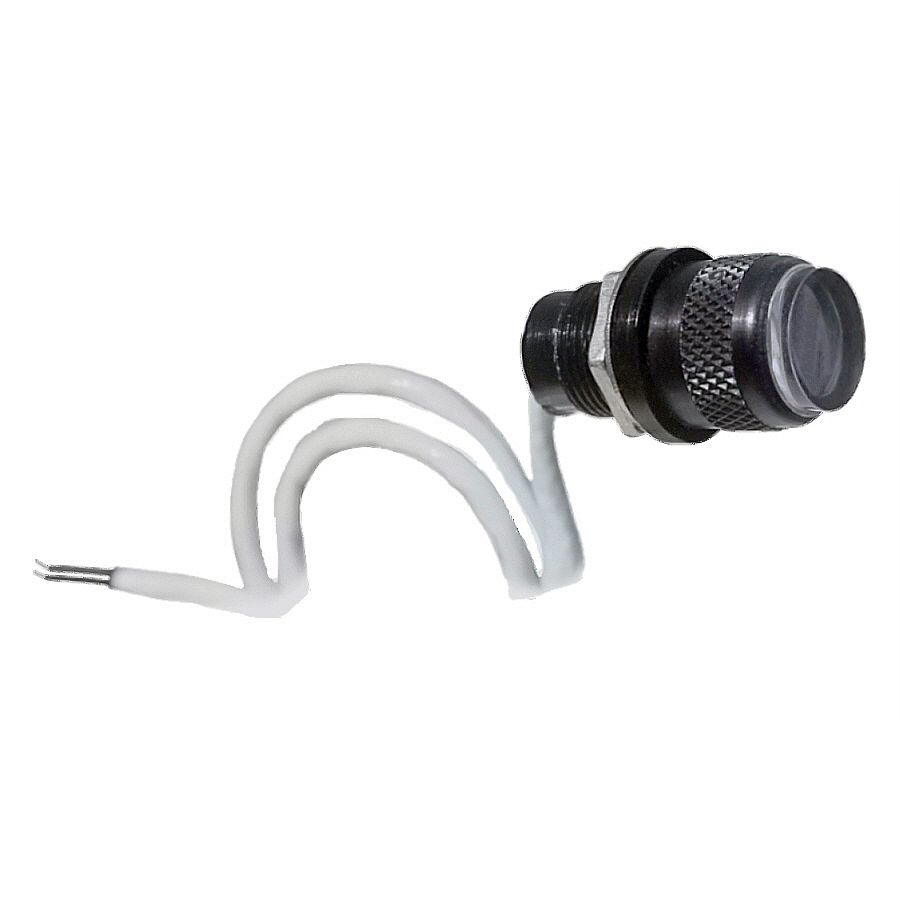

Lone Star LED Panel Indicator (Dual Color)

$152.99/Each
Quantity
Add to Wishlist
Part# 11-10592
MFR Model# LS03-07300

Overview

The Dual color LED illuminates green for normal and red for a problem. Use for any (stand alone annunciation).

  • LED Panel Indicator: .625, .468 or alternate mounting
  • Dual Color - (3) wire Red LED 660nm, Green LED 525nm = .20ma
  • Wide angle 180 degrees

Note: Price listed below is for the LED Panel Indicator ONLY.

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the dual color indicator be used separately as a single unit red and/or green light connected to a 12V source? For example as an indicator the gear is up (red) or down (green). Thanks

It can. You need sensors that are active high. That is, they need to produce a positive voltage when activated, so for a landing gear, you would connect the gear up switch between +12/28 and the red LED input wire, and the gear down switch between +12/28 and the green input wire. The wire would of course go to ground.

Q: I dont quite understand what you mean by .625, .428 or alternate mounting could you explain this?

The .468 is the hole diameter for the base of LED to be inserted into the panel. The .625 is the diameter of the lens body.
