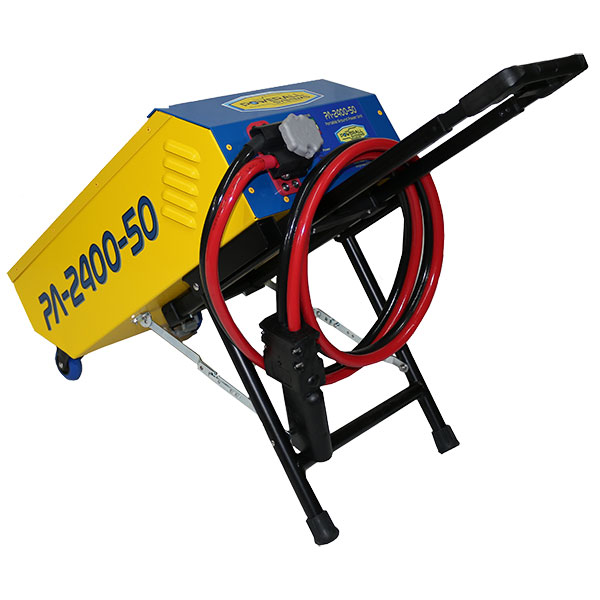

Powerall Portable Ground Power 2400 Peak Amps
Select Model:
PA-2400PA-2400-50Overview
|
This unit is optimum for performing multiple aircraft starts as well as providing continuous power for maintenance requirements while plugged into either a 110 or 220 volt AC source.
Delivering up to 2400 peak amps for starting and up to 25 continuous amps for maintenance functions and EFIS updates, the PA-2400 portable GPU is both compact and powerful. The recessed, heavy-duty "Glide Castors," Pull-Out Handle for easy maneuvering and sturdy steel Angle Stand allows for a straight-forward, extremely low footprint auxiliary power solution for any aircraft maintenance hangar. The PA-2400 has been used in the field to start the following fixed-wing aircraft and helicopters: All Beechcraft King Air Models, Beechcraft 1900 Series, Cessna Caravan 208, Citation 500 and 550 Series, Embraer Bandeirante 110, Piper Cheyenne Series, and Lear 20 Series. All Boeing/McDonnell Douglas Series helicopters, Agusta Series, Bell 205, 206, 407, 222, 230, 430 Series, Airbus Helicopters AS 350, EC120, BO105 and BK117 Series. The PA-2400-50 portable GPU has all the capabilities as the PA-2400, delivering up to 2400 Peak Amps for starting a wide variety of aircraft while providing up to 50 Continuous Amps for maintenance and pre-flight operations. This unit offers the same light-weight compact versatility as the PA-2400 and can be easily stowed in the aircraft luggage compartment when necessary. The PA-2400-50 is the optimum choice for Turbo Prop Aircraft and Turbine Helicopters with EFIS such as the Pilatus PC12, King Air Series, Eclipse 500, Bell 407, Airbus Helicopters EC135 and 145 helicopters and most light turbine helicopters, turboprops, and VLJ's with EFIS. |
Specifications
PA-2400- 2400 Peak Amps
- 25 Amps Cont
- 80 Amp Hour
- 60 Min Recharge Rate
- Length: 28.44 (In)
- Width: 12.00 (In)
- Weight: 9.83 (In)
- Height: 85 lbs
- 2400 Peak Amps
- 50 Amps Cont
- 80 Amp Hour
- 60 Min Recharge Rate
- Length: 26.44 (In)
- Width: 12.00 (In)
- Height: 9.83 (In)
- Weight: 98 lbs
