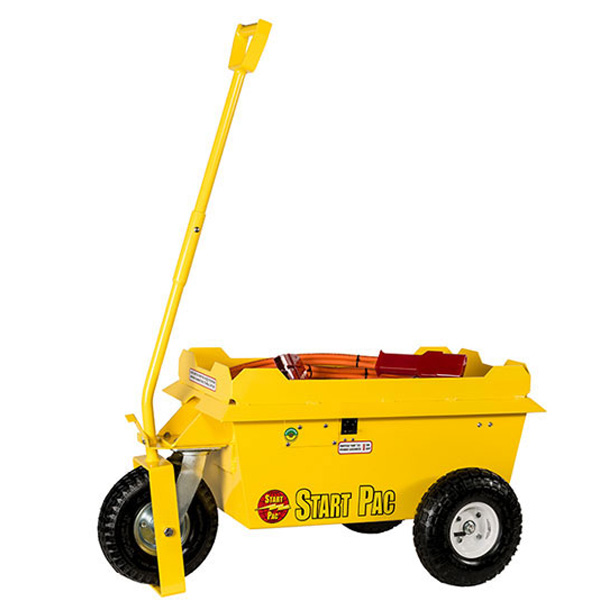

Start Pac Turbine Starting Unit - 28V 3328 Special
Overview
|
This turbine starting unit is designed to provide superior starting for large turbine engines including the TPE 331. Batteries:
Always recharge the GPU until the green light appears. Once charged, it is not necessary to leave unit plugged in. If heater is installed, turn unit off but leave plugged in. Avoid discharging the batteries completely as damage to the cells can result. Always recharge batteries soon after use. NOTE- PLEASE USE #12 OR LARGER AC EXTENSION CABLE |
Features
- This GPU is rated at 2800 peak starting amps and is a full 28.5 Volt unit. Due to the extra starting power provided by the 28.5 Volt batteries, turbine engines will experience faster, cooler starts and extended turbine life. This model is primarily designed for superior starts on large turbine engines and the Garrett TPE 331.
- This unit is more economical than the 3328 as it does not incorporate the high output DC power supply. Also this unit can be configured 110 Volt or 220 Volt AC input. This unit weighs 185 lbs/83.92 kilos.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, this part number comes with: 6- 12v batteries 4- 4v batteries
This model is primarily designed for superior starts on large turbine engines and the Garrett TPE 331.
Yes, these are new, outright.
The 3328 Special is designed for engine starting, if they want to power the aircraft, they will need either the 53300 or the 53400 (both are single phase power supplies specifically designed to be plugged in to AC mains power up aircraft electrical systems and bot require 220V to run.
