Overview

Features

• Sealed/Maintenance-Free - The valve regulated, spill-proof construction allows troublefree, safe operation in any position. There is no need to add electrolyte, as gases generated during overcharge are recombined in a unique
• Valve Regulated Design - Our batteries incorporate a series of one-way low pressure valves. These self sealing valves allow the venting of any excess gasses that may be produced in the battery due to severe overcharging.
• Design Flexibility - Batteries may be used in series and/or parallel to obtain choice of voltage and capacity. Due to recent design breakthroughs, the same battery may be used in either cyclic or standby applications.
• Rugged Construction - The high impact resistant battery case is made of nonconductive ABS plastic to UL94-HB. This material imparts very good resistance to shock, vibration, chemicals and heat. Certain models feature flame retardant (FR) cases.
• Wide Operating Temperature Range - Power-Sonic batteries may be discharged over a temperature range of -40C to +60C (-40F to +140F) and charged at temperatures ranging from -40C to +50C (-40F to +122F)
• Long Service Life - Under normal operating conditions, four or five years of dependable service life can be expected in stand-by applications, or between 200 and 1000 charge/ discharge cycles depending on the average depth of discharge.
• Deep Discharge Recovery - Special separators, advanced plate composition, and a carefully balanced electrolyte system have greatly improved the ability to recover from excessively deep discharge.
• Lead Calcium Plates - Heavy duty lead calcium plates provide an extra margin of performance and life in both cyclic and float applications and give unequaled recovery from deep discharge.
• Operation in any Orientation - Our SLA batteries can be discharged in any orientation, without reduction in performance or leakage of electrolyte.
• Long Shelf Life - A low self discharge rate allows storage of fully charged batteries for extended periods of time before charging is required. Lower storage temperatures further enhance shelf life characteristics.

Specifications

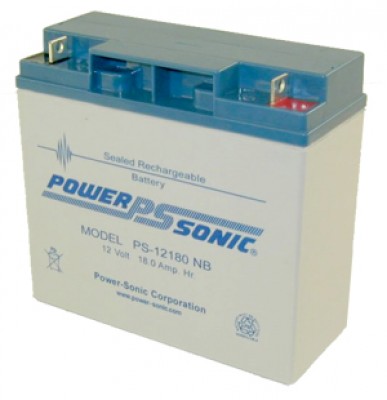

• Model: Powersonic PS-12180NB
• PPS SKU: 35L105S3
• Shipping Weight: 14 lbs
• Availability: Stock / 24 Hours
• Manufactured by: Powersonic
• Dimensions: 7.13"L x 2.99"W x 6.57"H
• Voltage: 12 Volts
• Capacity: 18 Amp Hour(s)
• Chemistry: Lead

Documents

• Technical Brochure
