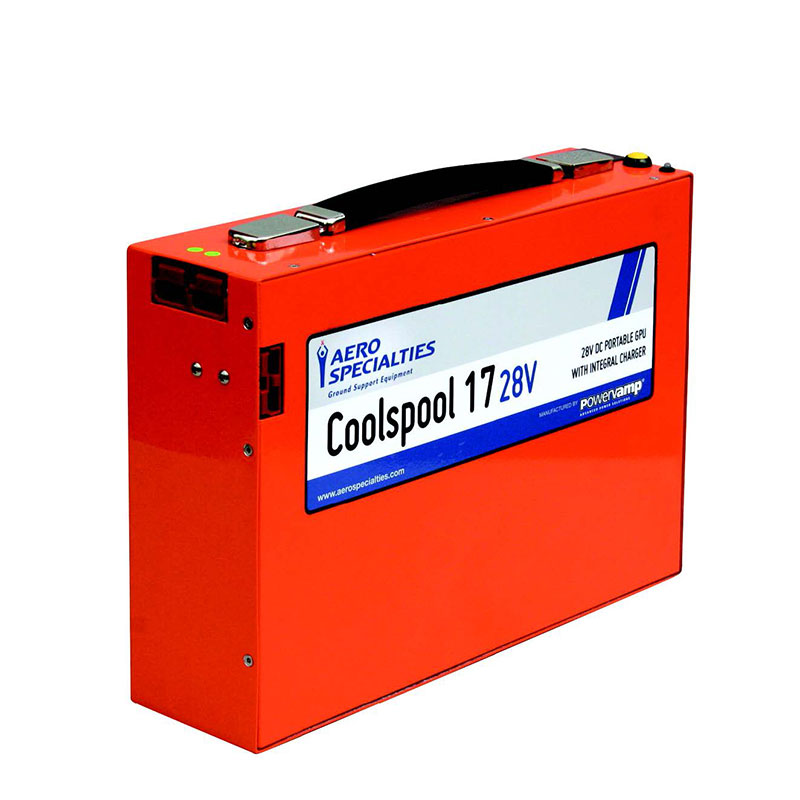

Powervamp Coolspool 17 28V Aircraft Portable Start Unit

0 Reviews 0 Answered Questions
Select Connector Type:
Aircraft ConnectorCroc Clip OutputPiper Connector
Select Length:
6.5 FT13 FT
Select Model:
U.S.AInternational
Quantity
Add to Wishlist

Overview

Produced in partnership with Powervamp, the Coolspool 17 is available in two nominal output voltages, 28V DC. This aircraft start unit is used extensively on light/medium turbine helicopters or aircraft and all 24V DC piston diesel/Avgas engines. Upper Fadec limits vary according to the manufacturer’s software and for this reason two versions of the Coolspool 17 are available.

When compared to a 24V DC start unit of the same capacity, the Coolspool 17 delivers a significantly higher performance, resulting in faster spool-ups and cooler starts impacting directly on turbine life.

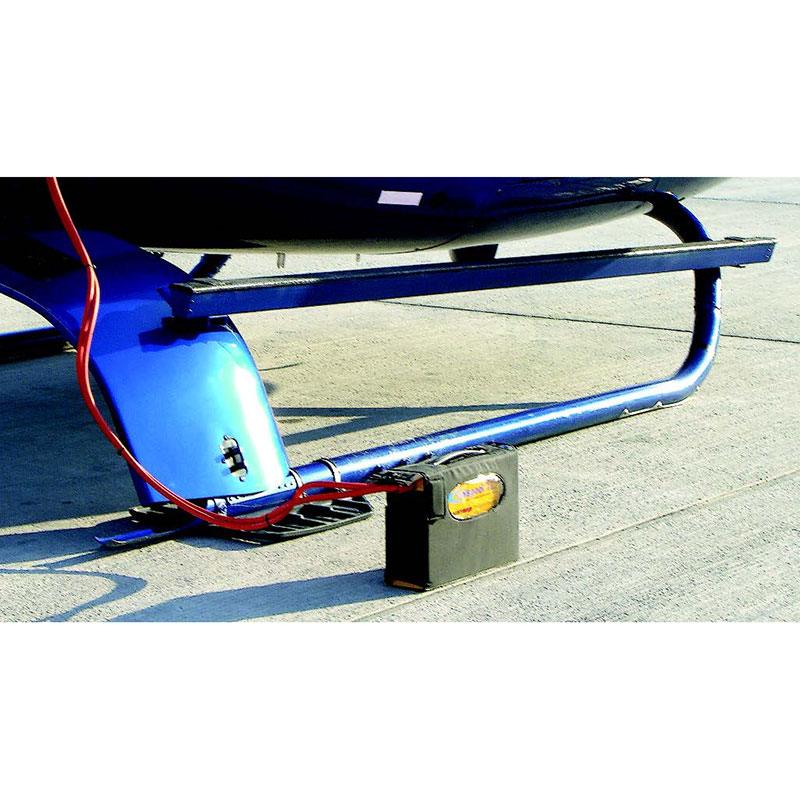

This aircraft start unit is designed to be carried on board for emergency power or turbine starting and is fitted with an automatic 3-stage internal charger for maximum cell longevity.

The Coolspool 17 is fitted with solid state voltmeter with ‘push to view’ button to monitor battery voltage. Securing the output flap of the padded jacket ensures the aircraft start unit is cleared for air transportation. Supplied with NATO lead set, charge lead and heavy-duty canvas protective jacket.

When connected in parallel with Powervamp’s PS30 DC power supply, both units deliver a unique lightweight combination of performance and versatility.

Features

  • High powered sealed lead acid AGM batteries
  • Cleared for air transportation
  • Internal charger with LED status indicator
  • Corrosion resistant aluminium case with carry handle
  • Aircraft cable with heavy-duty NATO connector
  • S50 auxiliary/accessory port
  • Solid state voltmeter with ‘push to view’ feature
  • Heavy-duty canvas protective jacket

Specifications

  • L: 14" (365mm)
  • W: 4" (100mm)
  • H: 10" (275mm)
  • Weight (28V DC Version): 40 lbs. (18kg)
  • Peak amps**: 1800A
  • Standing voltage: 27.3V or 30.7V DC depending on model
  • Amp/hour capacity: 16 Ah @ 10 hr rate (20°C)
  • Operating temp: -40°C to +45°C (-40°F to + 113°F)
  • Case: Aluminium with lie-flat handle
  • Voltmeter: Solid state LED, IP65
  • Aircraft cable: 2m (6ft) with heavy-duty rubber NATO connector
  • Charger: 1.9A 3-stage internal charger / 90–264V AC / 47–63Hz / single phase
  • NCAGE: KD628

  • NOTE: ** Peak amps is a theoretical calculation of the instantaneous current from a momentary dead short across the battery terminals. It is not representative of the power delivered at the aircraft plug which is significantly less, due to cable losses and other factors.**
