RAC B6 Series Miniature Linear Actuators

From $497.00 to $499.00
RAC PN Part Number Travel inch Travel Time Price Buy

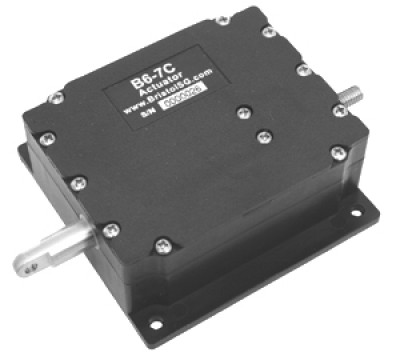

B6-7C
11-16311
.712$497.00
Quantity
B6-7T
11-16312
.712$499.00
Quantity
B6-11C
11-16313
1.119$499.00
Quantity
B6-11T
11-16314
1.119$499.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The B6 actuator is a small, powerful 12-14 Volt DC actuator featuring internal travel limiting switches. When activated, the actuator will continue to run until the power is turned off or until it automatically shuts off at the end of its travel. It can also be stopped in any position by switching off the power. Since the thrust is generated by means of a jackscrew, the output shaft will lock in any position when the power is off. Voltage polarity determines the direction of travel.

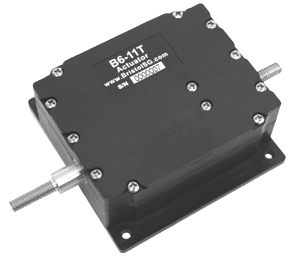

The B6 actuator shares the same footprint as the T2 / T3 Servo. The B6-7C and B6-11C model actuators have a brass output shaft designed to work with the C2 series clevis. The B6-7T and B6-11T model actuators have a brass, 10/32 threaded stud output shaft.

Reviews

As expected!

Levente M Verified Purchase

Rac B6-11T Actuator

November 19, 2024

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does these RAC B6 Series Miniature Linear Actuators have FAA form?

No these are experimental only.
