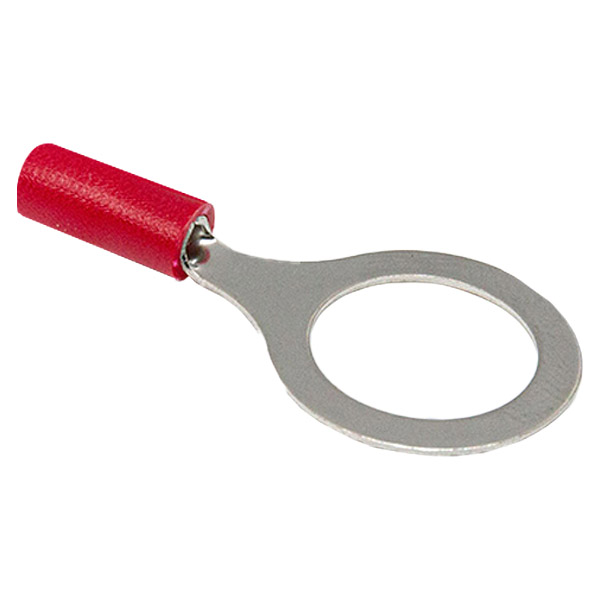

Ring And Spade Tongue Terminals 3/8 Stud Size

$1.24/Piece
Quantity
Add to Wishlist
Part# 11-09314
MFR Model# 320573

Overview

  • Terminal Shape : Ring Tongue
  • Receptacle Style : Straight
  • Body Style : PIDG
  • Barrel Type : Closed Barrel
  • Wire/Cable Type : Regular Wire


Features

  • Terminal Shape : Ring Tongue
  • Receptacle Style : Straight
  • Body Style : PIDG
  • Barrel Type : Closed Barrel
  • Wire/Cable Type : Regular Wire
  • Insulation : Yes
  • Insulation Support : Insulation Support
  • Insulation Diameter (mm [in]) : 2.03-3.18 [.080-.125]
  • Stud Diameter (mm [in]) : 9.53 [0.375]
  • Stud Size : 3/8 [9.53]
  • Shape : RING-041
  • Heavy Duty : No
  • Material : Copper
  • Finish : Tin
  • Color : Red
  • Insulation Material : Nylon

Specifications

  • Wire Range (mm [AWG]): 0.30-1.40² [22-16]
  • Wire/Cable Size (CMA): 509 – 3,260
  • Tongue Material Thickness (mm [in]): 0.84 [0.033]
  • Voltage (VAC): 300
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Golden E Verified Purchase

TE PIDG Ring Tongue Terminal 22-16 Awg .3-1.42MM 3/8 Stud 320573

October 1, 2024

Very short delivery time to europe

Benno B Verified Purchase

TE PIDG Ring Tongue Terminal 22-16 Awg .3-1.42MM 3/8 Stud 320573

April 8, 2022

Douglas L Verified Purchase

TE PIDG Ring Tongue Terminal 22-16 Awg .3-1.42MM 3/8 Stud 320573

July 27, 2021
