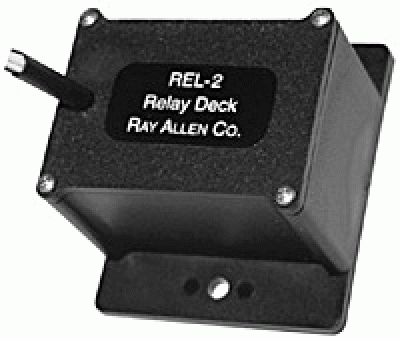

RAC Servo Relay Deck REL-2

$165.90/Each
Quantity
Add to Wishlist
Part# 11-05312
MFR Model# REL-2

Overview

This device converts the momentary contact action of the ROS-4 4-way switch, or any SPST pushbutton switch, into a DPDT action that is necessary to operate Ray Allen servos. You will need one of these relay decks for each servo in your installation. The REL-2 relay deck replaces the REL-1 relay deck.

The REL-2 functions the same as the REL-1, however the wire exit location is on the top. Measures 1.6" (40 mm) x 1.8” (49 mm) x 1.1” (28 mm).

Specifications

  • Capacitance: 1 amp
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Worked as advertised

Fred B Verified Purchase

Rac Servo Relay Deck Rel-2

September 25, 2024

Works as advertised

Mcdole C Verified Purchase

Rac Servo Relay Deck Rel-2

February 24, 2023

Edward L Verified Purchase

Rac Servo Relay Deck Rel-2

August 25, 2022

Perfect replacement for my Rac relay 1.

Martin B Verified Purchase

Rac Servo Relay Deck Rel-2

May 24, 2022

installed and works better than the REL -1 that I replaced

Wade Verified Purchase

Rac Servo Relay Deck Rel-2

March 22, 2022

The package arrived in Italy in 3 days. Perfect service.

Rosario
May 15, 2021

Small, compact and easy to setup. I have 2 of these relays mounted to a plate with terminal strips and mounted under the pilots seat. Wired 4 buttons of my stick grip into them. They work the flaps and trim perfectly.

William F
April 5, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is there wiring information for the Relay Deck?

Yes, we have added the wiring diagram to the web page under the Documents tab for download and review.
