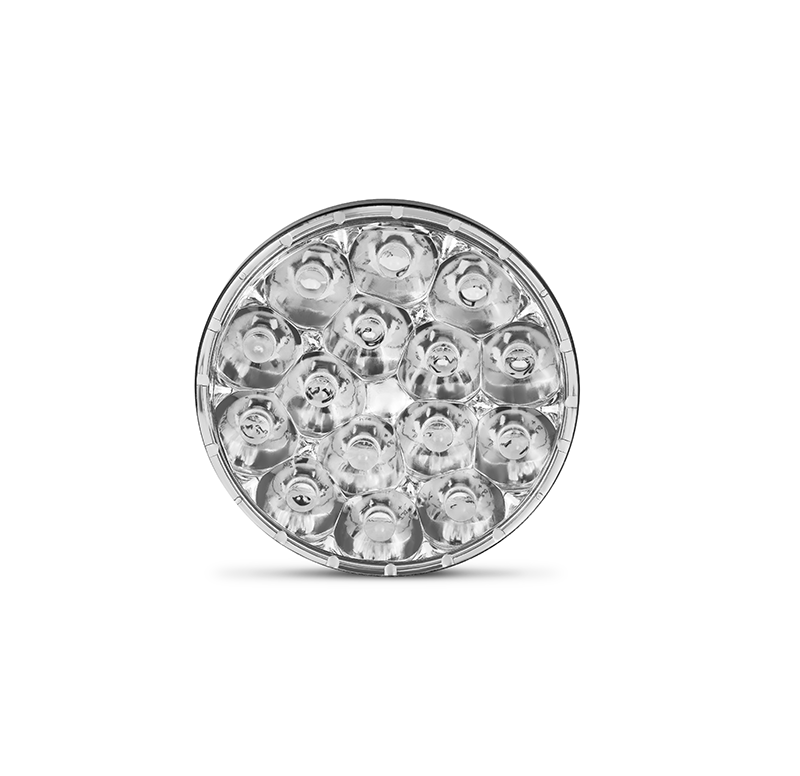

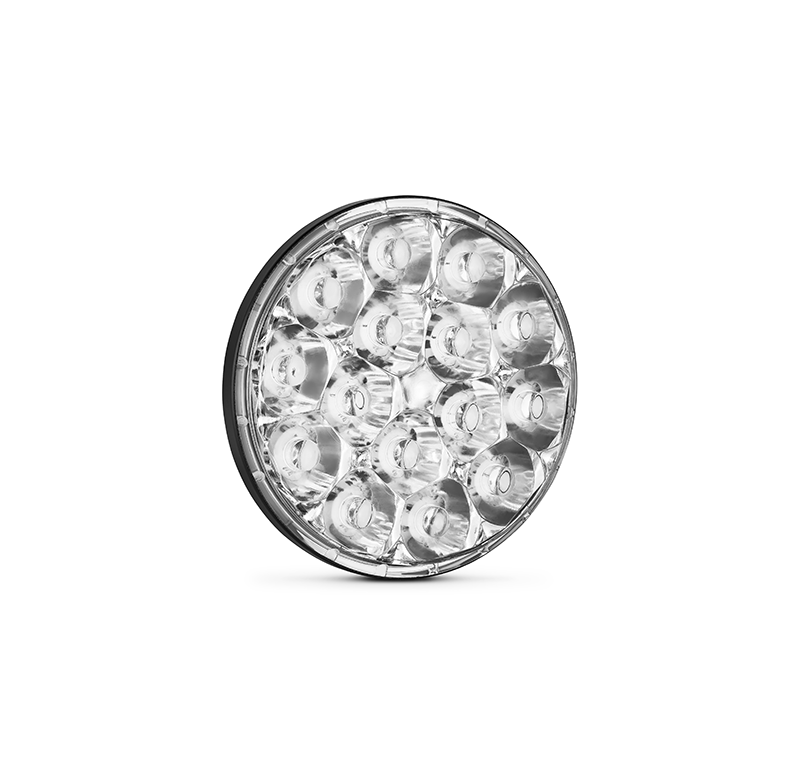

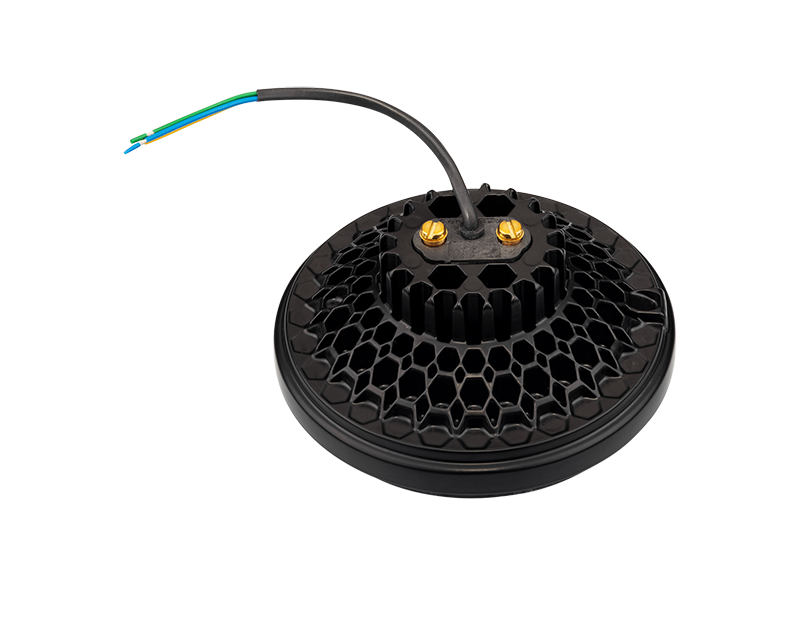

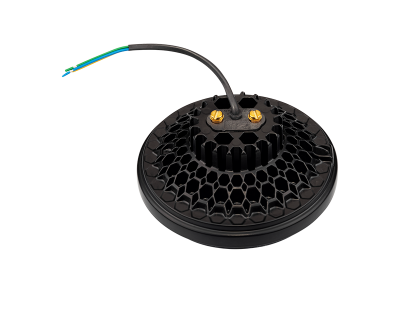

AeroLEDs Sunspot 36 Equinox Dual-Function PAR36 Landing / Taxi - FAA-PMA For Certified Aircraft

Select Voltage
12V24V
Quantity
Add to Wishlist

Overview



AeroLEDs SunSpot 36 Equinox is the industries first true dual function LED Landing and Taxi light. In landing mode, it will output a 20°X20° bright white beam angle for high-speed take-offs and landings to greatly improve visibility both on the ground and in the air from up to 30 miles away. While in taxi mode, the light produces a wider beam spread (20° X45°) that outputs a solid and evenly distributed light pattern for unmatched illumination of the runway/taxiway without impairing the vision of other pilots. All lights in the SunSpot Equinox Series come standard with integrated Pulse or WigWag feature. This feature takes advantage of an LEDs ability to illuminate instantaneously, providing a very immediate and distinct visual cue to other aircraft.

This increased recognition, even in broad daylight, potentially reduces the risk of midair collisions and bird strikes. As with all AeroLEDs products, the SunSpot Equinox consumes less power, is not affected by vibration and outputs a solid, even light beam that provides exceptional color rendering. The SunSpot 36 Equinox replacement LED’s utilize the existing PAR36 mount and electrical connections, with only a double pole double throw (DPDT) switch needed for dual modes.

Features

  • Over 75% more light output than the competition
  • Power consumption: 100 watts max
  • Color temperature: Cool White
  • Built-in pulse mode
  • Easy installation
  • PMA/STC Certified

Eligible Replacements

    12V Light Replacements:
  • H7604
  • GE4509
  • GE4595
  • GE4700
  • Q4632
  • Q4631
  • GE4313
  • GE4503
    24V Light Replacements:
  • Q5587
  • GE4596
  • GE5596
  • Q5596
  • GE4593
  • GE4589
  • GE4502
  • GE4505
  • GE4627
  • GE4591
  • GE Q4591
  • GE4594
  • GE4626
  • GE4587
  • GE Q5587

Specifications

Specification 01-1030-LT-12 01-1030-LT-24
Voltage 14V AC/DC 28V AC/DC
Current 7.1A Landing / 5.4A Taxi 3.5A Landing / 3.5A Taxi
Power 100 Watts
Pulse/WigWag Built In
Synchronization Optional
Thermal Protection Built In
Lumens 11,000
Candela 150,000 Landing / 50,000 Taxi
Beam Profile (@10% Peak) 20º x 20º Landing / 20º x 45º Taxi
Diameter 4.4”
Depth 2.1”
Weight 11.06 oz
Heat Sink Material Aluminum/Black Powder Coat
Lens Material Polycarbonate
Lens Protection Optional Film
Mounting PAR 36 Ring Clamp
MTBF >30,000 Hours
Temperature Range -55C to +70C
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Cannot comment regarding satisfaction because A&P still working on installation, however, before you spend the money on this light with the dual taxi/landing feature, make sure you can find switches that reverse the current, as the light requires. My A&P has been unable to find such switches for my PA 28, therefore may have paid a lot of money for something I cant use........

Louis V Verified Purchase

AeroLEDs Sunspot 36 Equinox Landing And Taxi Light FAA PMA 12V

November 18, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the AeroLEDs Sunspot 36 Equinox shielded wire needed?

Per the : shielded wire is always a better choice if you have other electronics or wires in the area.

Q: Is a synchronizer require if multiple lights used in close proximity?

Per install instructions: this light has a built in pulse function. An additional wire and switch will be required to enable pulse mode
