Tanis Indicator Light LED Tls3039-06-230 With Lead And Socket Connector - 230 Volt

$181.75/Each
Part# 05-14759
MFR Model# TALP-06-2

Overview

Tanis LED Indicator Lights - 6-inch socket connector - 230V.

Features

  • 230 volt
  • 8mm panel mounting
  • Metal body with 5mm red epoxy lens
  • 6 inch long lead
  • Pin or Socket connector

Specifications

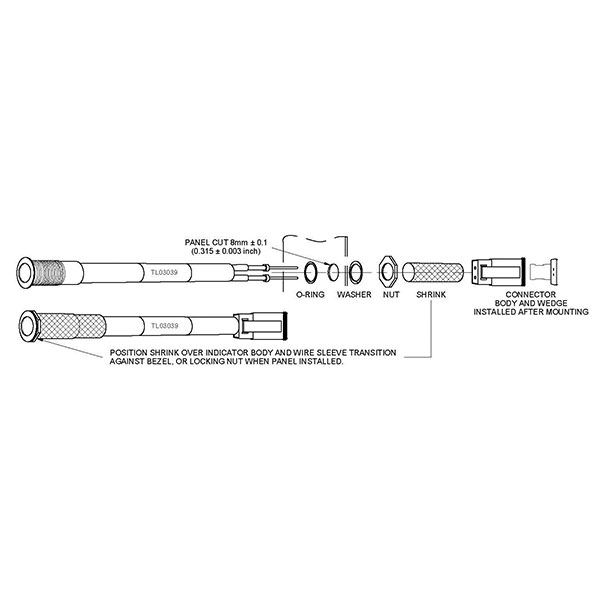

  • Conversion Notes: May require TU03065 washer kit for install in the existing 1/2 inch hole.
  • Old Part Number: TL01026-06-230, TL01026-02-230
  • Voltage:230
  • USA-Cert (8130-3 available): PMA-Subcomponent (YES)

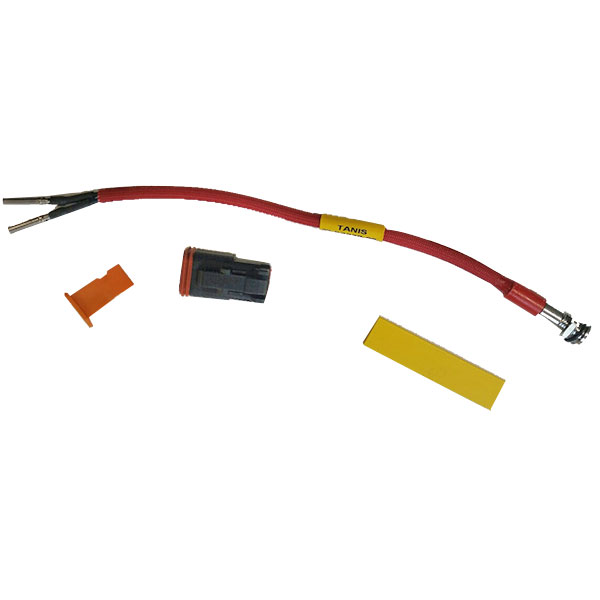

In The Box

  • LED light
  • Sealing O-ring
  • Spring washer
  • Fixing nut
  • Support shrink
  • Connector body
  • Connector wedge
