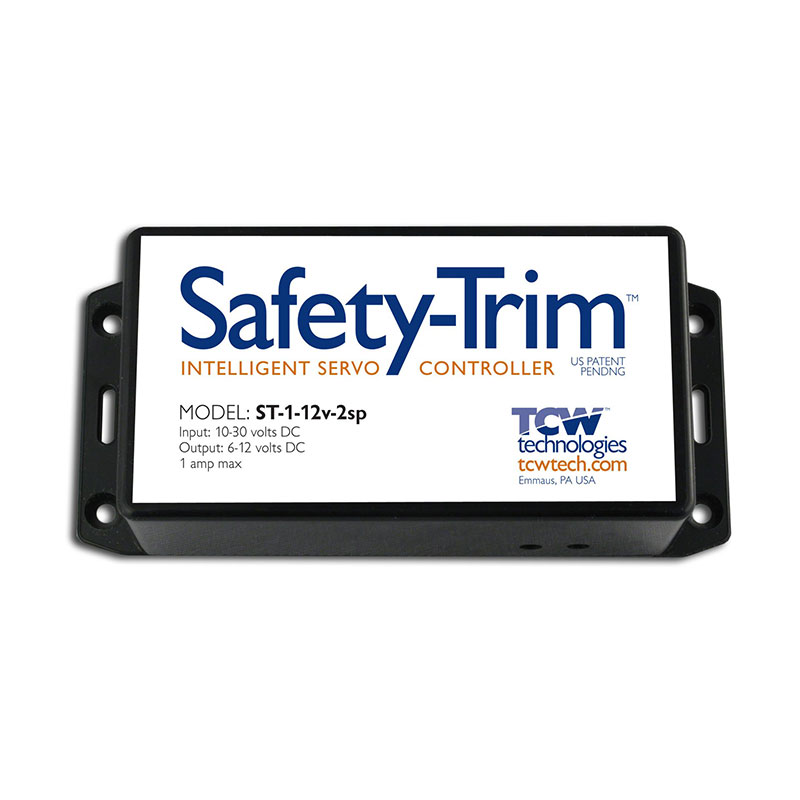

TCW Safety-Trim Intelligent Servo Controller
Select Axis
Single AxisDual AxisSelect Model
StandardTwo SpeedTwo Speed (Heavy Duty)Overview
|
Designed for standard electric trim servos, the Safety-Trim Intelligent Servo Controller (Safety-Trim) is an electronic speed control system for experimental aircraft. Safety-Trim provides the directional switching function as well as the adjustable speed control function needed to drive electric trim motors with a time limited operation of the trim servo motors that reduce the possibility of run-away trim and failure to operate conditions. Safety-Trim is an important safety feature that is short circuit proof and reverse polarity protected. 2 speed preset models are set for high and low speed trim actuation that allow separately adjustable trim speeds for different flight configurations. The single axis heavy-duty model is for DC trim motors and linear actuators rated for operation at 12 volts and up to 10 amp. |
Features
- Electronic servo controller with speed control run-away protection
- Time limited operation prevents trim servo run-away conditions
- Servo travel limited to 3 seconds per trim switch actuation
- Reverse function switch allows pilot to recover from a stuck or failed trim switch
- Eliminates many other components, no extra relay decks or speed controllers needed
- Very simple wiring, no extra parts needed for pilot and co-pilot trim switches
- Designed for standard electric trim servos, such as the Ray Allen T2 & T3 series
- Short circuit proof, reverse polarity protected
- 1 axis, 2 axis models available
- User adjustable, 1 speed and 2 speed models available
- For Experimental aircraft only NOT TSO'd
- Made in USA -- patented
Specifications
| Input Voltage | 10 – 30 volts DC |
|---|---|
| Output Voltage | User adjustable 6-12 volts DC, 1 amp maximum |
| Inputs | Trim switch inputs, closures to ground pilot/co-pilot switches wired in parallel 2 speed switch, closure to ground |
| Output | Time limited, controlled DC voltage to servo Time limit factory set to 3 seconds |
| Wiring | Standard 15-pin D-sub connector (male on controller) pre-made wiring harness with ON/OFF/Reverse switch available |
| Enclosure | Overall dimensions 5.7” x 2.5” x 1.5” UL 94V-0 rated material, 60°C max temperature |
| Weight | 6 oz. |
