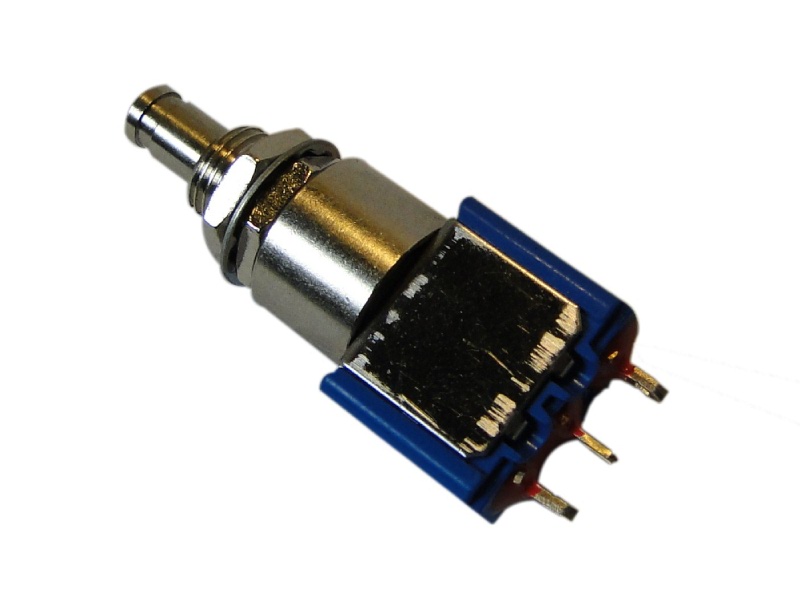

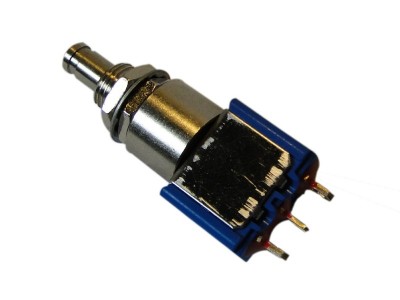

Infinity Aerospace Momentary Push Button Switch

$28.50/Each
Quantity
Add to Wishlist
Part# 11-00218
MFR Model# IM-PBS

Overview

Infinity momentary push button switch with a tactile click used for Infinity Military Stick Grips.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Looks to a good quality switch, haven’t installed it yet, will be doing that next week or so

Jon H
August 17, 2019

Installed this for an AP DISC switch, the wires pulled a bit while I was setting the yoke cap on and the switch fell apart, so word to the wise no torsion loads.

Justin B
January 24, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions? Diameter of threaded portion, max width (so I can see if it'll fit inside a stick). Also, switch position(normally open, normally close, both)?

Approximate dimensions are: Diameter of threaded portion: 1/4", Max width of round portion: 3/8", Max width of rectangular portion: 1/2". It is a normally open or normally closed switch.

Q: Does this Infinty Aerospace Momentary Push Button Swithc come with the plastic cap? (Red or green)

No, the plastic cover is not included. We do offer toggle switch covers separately. See accessories tab for ordering info.

Q: Is this Infinity push button an inversor (normally open and normally closed, both)?

Yes, this is a Normally Open or Normally Closed (8632) SPDT momentary push-button switch.

Q: What are the voltage and current ratings? What type are the contacts?

This switch is rated, 4 amps at 30vdc with soldered contacts.

Q: What is the depth of the switch? From the mounting surface to the tip of the connectors?

Approx 0.9375 inches.

Q: How long are the threads on this INFINITY AEROSPACE MOMENTARY PUSH BUTTON SWITCH?

They are 1/4" long.

Q: I want to know if this switch is normally closed?

This is a Normally Open or Normally Closed SPDT momentary push-button switch.
