- Photo may represent series and not specific product
- SHARE
(Hover to zoom | Use mouse wheel for +/-)
| AN No. | MS No. | Mfgrs. PN | Contact | Toggle Circuit Code |
Price | Buy |
|---|---|---|---|---|---|---|
AN3021-1 | MS35058-21 | JBT - MS No. | SPDT | 1 | $40.55 | |
AN3021-2 | MS35058-22 | JBT - MS No. | SPST | 2 | $28.85 | |

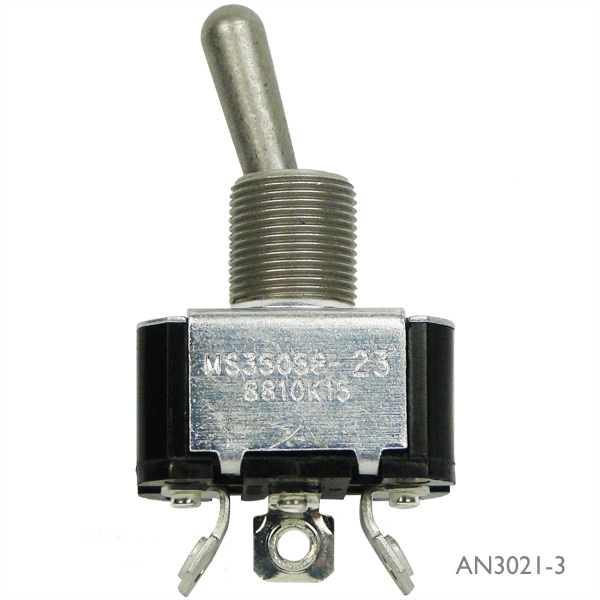

AN3021-3 | MS35058-23 | JBT - MS No. | SPDT | 3 | $32.90 | |
AN3027-2 | MS35059-22 | JBT - MS No. | DPST | 2 | $39.60 | |
AN3027-3 | MS35059-23 | JBT - MS No. | DPDT | 3 | $59.75 | |
AN3027-7 | MS35059-27 | JBT - MS No. | DPDT | 5 | $60.99 | |
| AN3027-4 | MS35059-24 | JBT - MS No. | DPST | 7 | $55.85 |
Overview
|
Toggle switches are available with two or three operating positions, 1 hole mounting and a variety of circuitry & electrical ratings. Contacts are made of solid silver. Wide usage is found in aircraft, mobile, marine, electronic and industrial applications. Available in full "AN" standard size & Ultra Miniature 1/2" size. Leading manufacturers of toggle switches are Micro Switch, Alcoswitch, Cutler Hammer, & JBT, now Cutler Hammer. Orders will be filled with switches of the manufacturer whose product is available in local stock. Note: * Momentary Contact |
Toggle Circuit Table
|
| |  |  |  |
| UP | CENTER | DOWN | |
| 1 | On | Off | On |
| 2 | On | None | Off |
| 3 | On | None | On |
| 4 | On | Off | On* |
| 5 | On* | Off | On* |
| 6 | Off | None | On* |
| 7 | On | Off | None |
| 8 | On | Off | None |
| 9 | None | Off | On* |
| 10 | On | Off* | None |
| 11 | On | None | On* |
| 12 | On* | On | None |
| 13 | On | On | None |
| |
Tech Data
- Tech Data Sheet (PDF)
Dimensions
Reviews
This was used on a Cessna 340A as the main power switch. Has slots on both sides of the switch identical to the one that was removed.
Verified Purchase
Toggle Switch MS35059-22
Great switch, was used on a Cessna 348 as the main battery switch. I don’t go to the one that was removed. It does have slats on each side of the switch barrel.
Verified Purchase
Toggle Switch MS35059-22
Solid construction. Looks and feels like a good switch. It doesnt appear to be a chrome plated toggle.
Verified Purchase
Toggle Switch MS35058-22
Good product, worked well.
Verified Purchase
Toggle Switch MS35058-22
Verified Purchase
Toggle Switch AN3027-3
I have used this switch from Aircraft Spruce for many years (20+) on mobility equipment for the disabled. These devices see rugged and constant use, and Ive never had a failure. Still waiting for one of these to wear out.
Verified Purchase
Toggle Switch MS35059-27
Replaced my push pull navigation light switch with this toggle switch
Verified Purchase
Toggle Switch MS35058-22
as presented
Verified Purchase
Toggle Switch MS35058-22
Feel like quality switches. And fair price. ms35058-22. Lever is not chromed like most switches. I’m sure there is a reason for this, maybe reflection purposes…?
Verified Purchase
Toggle Switch MS35058-22
Very good product, they are made of stainless steel, ideal for outdoors.
Verified Purchase
Toggle Switch MS35059-22
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is a 20 amp switch.
Yes, these are the approximate dimensions: 1-1/8" L x 5/8" W x 5/8" H.
Correct. With "None" in the center position, the switch will toggle only all the way up to all the way down.
Yes, push the lever to either position to activate, and the lever will spring back to center off, if not held in position.
Yes, these switched will work in 14v dc systems.
The hole size for the toggle switches to fit through the panel is 1/2".
The * represents momentary on. Essentially it's on at contact and then once released it is back off. It does not stay on.
The keyway slot is on the down/off position.
Enter 12 in the input box in the "Buy" column in the ordering grid. Then, click the "Add to Cart" orange button below and the items will be instantly added to the shopping cart.
Yes, included are 2 hex nuts, 1 lock ring, and 1 lock washer.
