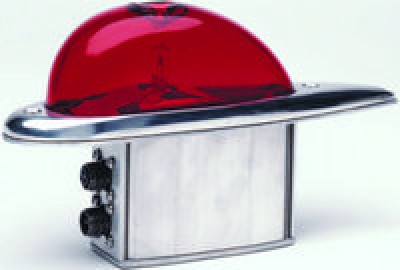

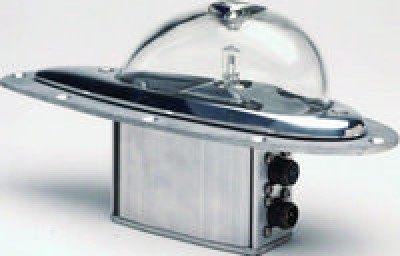

Whelen Halogen Flashing Anti-Collision Light 90044 Series
| Mfg Model # | Lens Color | Mount | Base | Remarks | Part Number | Price | Buy |
|---|---|---|---|---|---|---|---|
| 9004410 | White | Upper | 5 Hole | Capable of synchronizing flash rate with other like unit (FAA TSO-C96a) | 11-07637 | $1322.00 | |
| 9004415 | Red | Lower | 5 Hole | Slave unit (FAA TSO-C96a) | 11-07639 | $1788.00 | |
| 9004453 | White | Lower | 8 Hole | Masked lens (Factory intalled on Beech Barons) (FAA TSO-C96a) | 11-07647 | $2709.00 | |
| 9004434 | White | Upper | 5 Hole | 2.25lbs. Rudder mount (Citations) (FAA TSO-C96a) | 11-07642 | $1788.00 | |
| 9004433 | Red | Upper | 5 Hole | 2.25 lbs. Rudder mount (Citations) | 11-07641 | $2709.00 | |
| 9004454 | Red | Lower | 5 Hole | Lens has 2 drain holes & bottom mounted input connector (Hawker 800) (FAA TSO-C96a) | 11-07648 | $2709.00 | |
| 9004455 | Red | Upper | 5 Hole | Single input connector (Hawker 800) (FAA TSO-C96a) | 11-07649 | $2709.00 | |
| 9004456 | Red | Lower | 5 Hole | Lens has 2 drain holes & single input connector (Older Hawkers) (FAA TSO-C96a) | 11-07650 | $2592.00 | |
| 9004457 | Red | Upper | 5 Hole | 2.25lbs., cable pigtail (Beech Barons) (FAA TSO-C96a) | 11-01968 | $2693.00 | |
| 9004458 | White | Upper | 5 Hole | 2.25lbs, cable pigtail (Beech Barons) (FAA TSO-C96a) | 11-07651 | $2231.00 |
Overview
|
90044 series self-contained, 150 watt, quartz halogen flashing anti-collision light. Factory installed on Lear 31, Falcon 900 and Cessna Citation X. It is also a direct replacement for oscillating beacons on most corporate aircraft. To determine model required for replacement, the following information is needed: Lens color (red or white), upper or lower mounting location, number of mounting holes (5, 8, or 9), weight and position installed. Beacons installed on the rudder, (example: Citations and Barons) require a 2.25 lb. assembly. |
Specifications
- Weight: 1.6 lbs. (726gm) to
- 2.5 lbs. (1134gm)
- Height: 5.5” (140mm)
- Power Consumption: 3.25 amps
- @ 28 VDC
- Replaces: G9950-( ), 40-0100-( ), 30-2140-( ), 40-0117-( ), 40-0127-( ), 30-2647-( )
