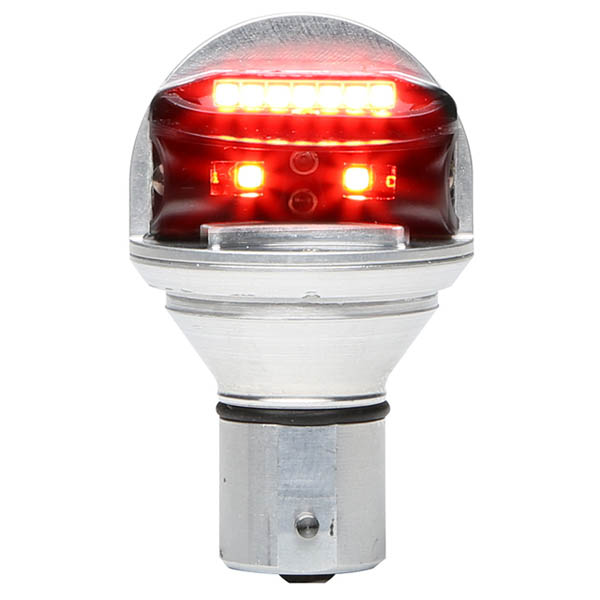

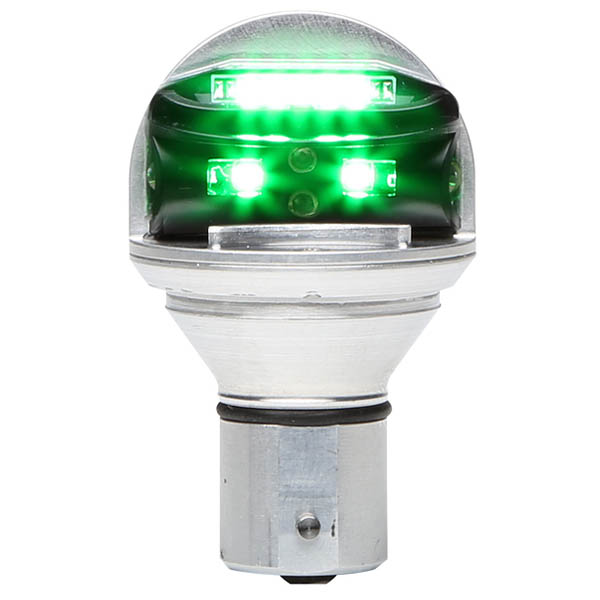

Whelen Chroma™ Position LED Lamps FAA-TSO

Select Color:
Red Green
Select Voltage:
14 Volt28 Volt
Quantity
Add to Wishlist

Overview

LED technology is optimal for aviation applications. Whelen LED lights are time and field tested for reliability and long-life performance under the harsh conditions faced by Fire, DOT, and Law Enforcement professionals around the world.

Whelen Aviation Products exceed industry standards. Whether installed on a Boeing 737, a Gulfstream 650, a high altitude reconnaissance aircraft, or on helicopters operating in the North Sea, Whelen products are trusted to perform in every imaginable environment.

Features

  • Direct replacements for W129028 / 129028 / A7512-24 / W628 / 628 incandescent bulbs
  • Unique reflector design allows for full FAR coverage compliance
  • Robust machined base provides vibration resistance tested in accordance with RTCA/DO160 CAT U2, Curves F, F1 for rotorcraft
  • All electronic logic conformal coated for weather resistance
  • Nickel Plated hard contact eliminates premature wear
  • Keeps original lens configuration to maintain FAA approvals of light assembly
  • LED bulbs have a 10,000 hour operating life, while incandescent bulbs have a fragile filament and a 300 hour average life
  • 85% reduced current draw
  • Five year warranty
  • FAA TSO-C30c Type I and II Approved
  • Meets all FAR requirements for Chromaticity, Intensity, and Coverage FAR Part 23.1383 thru 23.1397, FAR Part 27.1383 thru 27.1397

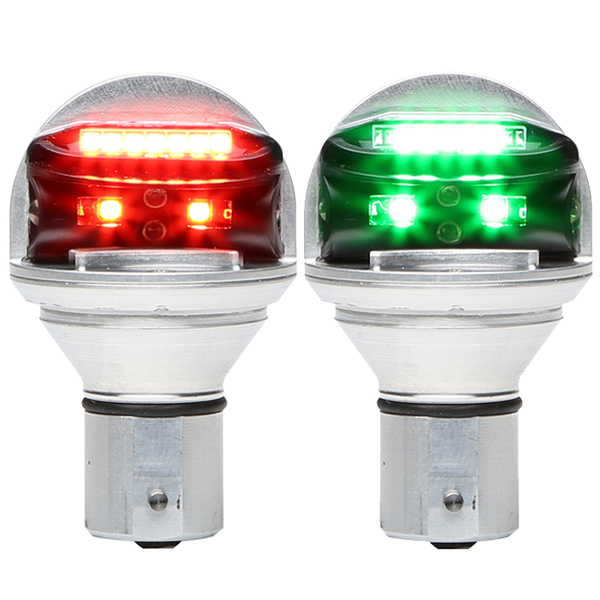

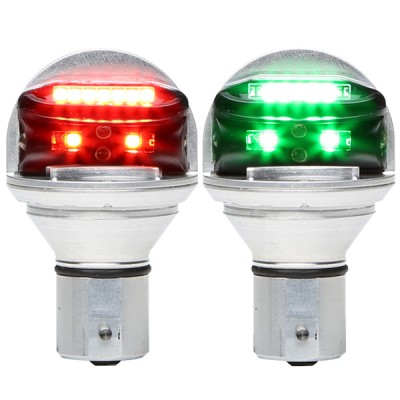

  • RED & GREEN color specific. Dominant wavelengths allow for meeting FAR requirements through a wide variety of aviation Red &
  • aviation Green lenses
  • Fixed current source design provides consistent light output compared to filament lamps and LED resistor type designs, resulting in complete FAR compliance

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Nice ! After I received them and installed , I was happy to pay 130$ for a light bulb 😀 They draw a lower current and I had breaker switch that would occasional flip off. Not with these.

Robert B Verified Purchase

Whelen Chroma Position LED Lamp, 14V, Green

September 13, 2024

Its a lamp - it worked when we installed it. Nothing more to say!

Jpt M Verified Purchase

Whelen Chroma Position LED Lamp, 28V, Red

April 24, 2024

Very bright. An excellent upgrade and easy.

Datchair L Verified Purchase

Whelen Chroma Position LED Lamp, 28V, Red

February 20, 2024

Very bright. An excellent upgrade and easy.

Datchair L Verified Purchase

Whelen Chroma Position LED Lamp, 28V, Green

February 20, 2024

These are not your normal bulb type lights. Very well made. You need to use a little or force to push in place and twist. Feels unnatural but they wont jam, just a nice tight fit. Replaced both left and right with no regret paying the cost. PA38-112. N38PR

Mark G Verified Purchase

Whelen Chroma Position LED Lamp, 14V, Red

January 3, 2024

These are not your normal bulb type lights. Very well made. You need to use a little or force to push in place and twist. Feels unnatural but they wont jam, just a nice tight fit. Replaced both left and right with no regret paying the cost. PA38-112. N38PR

Mark G Verified Purchase

Whelen Chroma Position LED Lamp, 14V, Green

January 3, 2024

Worth the cost. It was a much needed improvement!

Christopher B Verified Purchase

Whelen Chroma Position LED Lamp, 14V, Red

November 27, 2023

Worth the cost. It was a much needed improvement!

Christopher B Verified Purchase

Whelen Chroma Position LED Lamp, 14V, Green

November 27, 2023

Direct replacement and very bright.

Eric C Verified Purchase

Whelen Chroma Position LED Lamp, 14V, Red

September 6, 2023

Direct replacement and very bright.

Eric C Verified Purchase

Whelen Chroma Position LED Lamp, 14V, Green

September 6, 2023

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the current draw for 14 volt Whelen Chroma Position LED lamps?

For 14 volt lamps, they draw 0.30 amps at 14 VDC.

Q: Regarding Whelen Chroma LED Lamps: Do I need to use a clear lens, or the colored lens that are already used with the incandescent bulbs?

You can use the existing colored lenses.

Q: I have a 1989 Piper Warrior and I was wondering if these are just the LED Bulbs? Will they replace the bulbs that are currently installed without replacing the whole position wingtip light?

Yes, these are the bulbs only and are designed to be a "bulb only" replacement for the currently installed lights.

Q: I understand you can use the colored bulbs with the colored lens, but is it better to have a clear lens or is it better to use a colored lens? I have heard that green bulb/green lens may be a better combo.

Per Whelen they are designed to be used with the colored lens. You use the colored lens so that the TSO'd light assy is not modified in any way other than changing the bulb.

Q: How many lumens for the Whelen Chroma Position LED Lamps?

Whelen does not measure their output in lumens. They are 40 candella and are the same output as the w1290 bulbs they replace.

Q: Is the PART # 11-15019 a direct replacement for the A7512-12 bulb? The specs list the A7512-24 but don't specifically mention the A7512-12.

It will, you just need to select the color you need and the 14volt option.

Q: I have briefly looked around and did not see any reference to the post on the base of the Whelen Chroma bulbs. Are they directly opposing or are they offset?

These are off set.

Q: I have read that some LEDs produce RF interference, do these Whelen Chroma bulbs have any problems with radios?

Per Whelen: NO EMI / RFI interference, as Chroma bulbs are built using fixed current sources.

Q: Is there an LED replacement for W-1512?

We have a 5 watt version (11-11374) and a 4 watt version(11-11369.) They are for experimental use only.

Q: May I use the Whelen Chroma led position lights (Part# 11-15017/9) in my PA-38 Tomahawk to replace the normal ones? Piper p/n: 751 381 BULB - Navigation lights (1512).

Yes, that is a direct replacement.
