Whelen Lighthead Adapter Models H102 & H103

Select Model:
H102H103

Overview

Designed for the model A470A or model A450 series remote strobe lighthead assemblies. The model H102 allows flush mounting of the lighthead to the skin of the fuselage or the vertical stabilizer on later model Cessna Single engines. The H103 is designed for strobe assemblies to be installed in the standard 3-3/4” (95mm) dia. rotating beacon mounting hole.

Mfg Model#
Description
Part No.

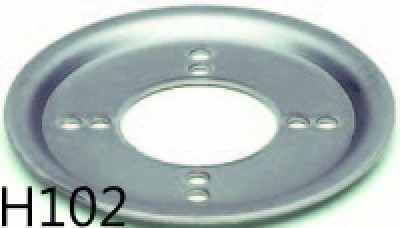

H102
Flush mount adapter
(FAA/PMA)
11-03243

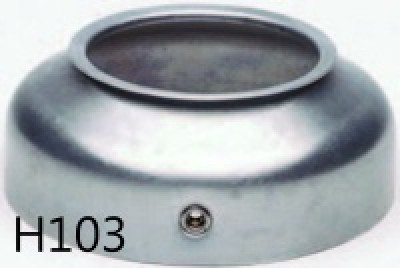

H103
Rotating beacon mount adapter
11-03284

Specifications

  • Drawing Number H102: 30068
  • Drawing Number H102: 30079
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this adaptor work withe the whelen Model 71055 Series beacons? I would like to mount one on my 1955 Cessna 170B

Per Whelen: The H102 can be removed. It is simply a means to "clamp" the legacy lights to the fin cap. The new LED beacons have a mounting base built in that has the same hole pattern as the anchor nuts in the vertical fin of the airplane = easy install. The 71055 will work. The 71080 Series will work (30% brighter) but a little taller. The 7108051 (Spruce p/n - 11-07686) assuming the aircraft is 14volt.
