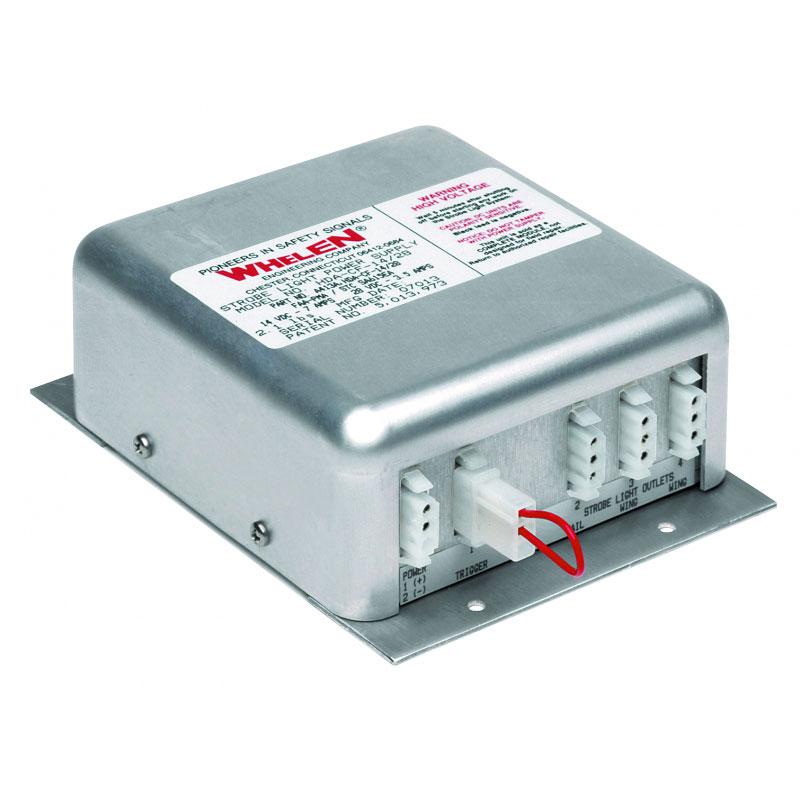

Whelen HDACF Power Supply ( 14V / 28V )
MFR Model# 01-0770028-05
Overview
|
HDACF series provides simultaneous flashing, alternate flashing or both. It will operate one, two or three strobe lightheads. Operating the wing tip strobes in the alternating mode will provide an accumulated 42 joules of power to each light. When in the simultaneous mode, the accumulated power to each light is 21 joules. In the three light mode, the wing tips will flash simultaneous at an accumulated 21 joules each, they alternate with a third light operating at an accumulated 42 joules. On the trigger selector outlet, a switch mounted in place of the jumper will allow wing tip outlets 2 & 3 to be turned off, while the tail outlet 1 will remain on. This function is commonly used when the third light is for ground operations. This power supply will operate from 10 to 30 VDC. Model No. 01-0770028-05 |
Specifications
- Drawing Number: 70028
- Power Consumption: 7.0 amps @ 14 VDC; 3.5 amps @ 28 VDC
- Weight: 2.1 lbs. (953gm)
- Length: 5.50” (140mm)
- Width: 5.0” (127mm)
- Height: 2.37” (60mm)
- Model No. 01-0770028-05
Documents
- Installation Guide (PDF)
- Drawing (PDF)
Reviews
Had to replace a 25 year old unit and this one works perfect
Verified Purchase
Whelen Hdacf 14/28V
Exact replacement. Works perfectly
Verified Purchase
Whelen Hdacf 14/28V
good price
Verified Purchase
Whelen Hdacf 14/28V
Product works as advertised and was delivered on time.
Verified Purchase
Whelen Hdacf 14/28V
Installed easily to replace a failed flasher unit.
Verified Purchase
Whelen Hdacf 14/28V
I ordered the unit as a replacement for an older power supply. Immediately after ordering, I found the problem with the existing supply (bad solder joint). Aircraft Spruce had already shipped the new unit in the hour I took to attempt to cancel the order. The return of the unit for a full refund (except for shipping costs) went flawlessly. Great Job!

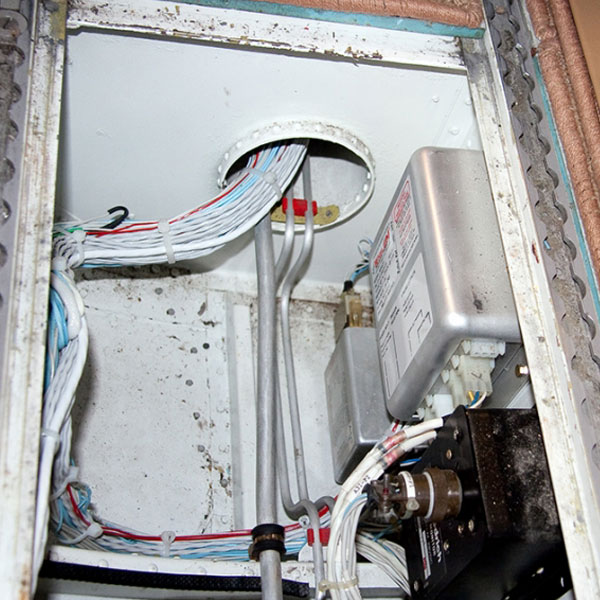

The Whelen A413A/HDA-CF-14/28 Strobe power supply was purchased to replace a failed Whelen power (A413, T3-14) supply that had been in my aircraft since the 70s. The left wing tip section of the old unit had failed. Both the older unit and the new are approved under the same STC SA800EA so, for logbook purposes, it is a simple remove and replace. Several things stand out about the replacement: 1) The mounting holes are identically spaced which means that the new unit fits right down over existing mounting holes . (2) the strobe noise, while still faintly heard in the aircrafts audio system is much quieter. (3) The new unit draws more amps - 7.5 vs. 4.0 (4) The new unit weighs less - 2.1 pounds vs. 3.5 pounds (5) The shield grounds from the cables going to each of the three strobes must be snipped from their existing connection to pin 2 of each connector and connected directly to airframe ground and (most importantly) (6) The unit works beautifully and all lights are brighter.
Works well. Got 10+ years and 1,450 hours out of last one. I could complain about the price too, but they got you grabbing your ankles in anything aviation. Gotta buy another one. Pass the grease.
Very easy to install, replaced 10+ year old failed power supply with this. all 3 strobe lights are bright and working well. The cost is kind of rediculous for what it is
Works great, but apparently made of gold and platinum. $674.00 to make your strobes flash-aviation for the little guy must die.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
There is no difference since they are the same part. The Whelen model number for our part number 11-16218 is 01-0770028-05
Per the supplier: Any 2 outputs can be used depending how you want them to flash.
Per the supplier: Yes, it is the same and is backwards compatible.
Per whelen, it will work fine with older strobes.
This power supply can handle single flash double flash and alternating mode between 1,2 and 3 strobe head units.
