XeVision XeTREME™ LED Generic Mounting Bracket

$48.90/Each
Quantity
Add to Wishlist
Part# 11-19033

Overview

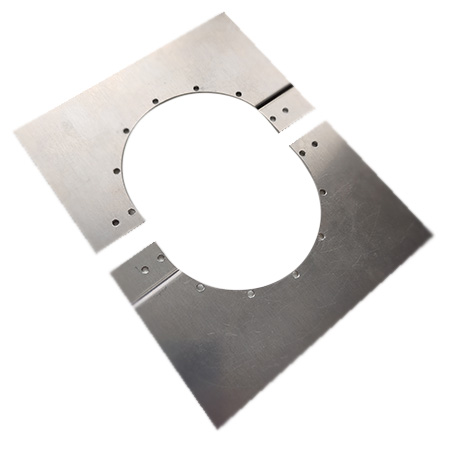

Generic mounting adapter/bracket, 2 parts Al 5052 plates pre-drilled for mounting to light fixtures. Customer needs to make necessary adjustments for mounting the light fixture to the selected location.

Necessary screws for mounting the bracket to the light fixture are part of this kit. Note: Screw length to the light fixture is critical !

The generic mounting adapter/bracket is suitable for installation for Par-36 or Par-46, and any custom mounting adaptations.

Not included in the LED light fixture kits. Alternatively the 2D drawing template can be used (See Documents)

Dimensions

  • Cutout for fixture diam.: 3.90 in. (99 mm)
  • Thickness: 0.08 in. (2 mm)
  • Size: 6.7 in. (170 mm) x 6.3 in. (160) mm
  • Weight: 4 oz. (115 gm) as delivered. Customizing will reduce weight, minimized at approx 2 oz. (57 gm)

In The Box

  • Two matched halves
  • Necessary stainless steel screws
