- Photo may represent series and not specific product
- SHARE
| Material | Thread | Part Number | Price | Buy |
|---|---|---|---|---|
| Cad Plated | 1/4-28 | AN364-428A | $0.20 | |
| Cad Plated | 4-40 | AN364-440A | $0.84 | |
| Cad Plated | 5/16-24 | AN364-524A | $0.88 | |
| Cad Plated | 3/8-24 | AN364-624A | $1.73 | |
| Cad Plated | 632 | AN364-632A | $1.47 | |
| Cad Plated | 7/16-20 | AN364-720A | $2.54 | |
| Cad Plated | 1/2-20 | AN364-820A | $4.35 | |
| Cad Plated | 8-32 | AN364-832A | $0.25 | |
| Cad Plated | 9/16-18 | AN364-918 | $5.35 | |
| Cad Plated | 5/8-18 | AN364-1018 | $3.40 | |
| Cad Plated | 10-32 | AN364-1032A | $0.31 | |
| Cad Plated | 3/4-16 | AN364-1216 | $8.55 | |
| Stainless | 1/4-28 | AN364C-428 | $2.33 | |
| Stainless | 3/8-24 | AN364C-624 | $5.40 | |
| Stainless | 632 | AN364C-632 | $1.39 | |
| Stainless | 7/16-20 | AN364C-720 | $8.80 | |
| Stainless | 1/2-20 | AN364C-820 | $5.35 | |
| Stainless | 8-32 | AN364C-832 | $1.33 | |
| Stainless | 9/16-18 | AN364C-918 | $12.85 | |
| Stainless | 5/8-18 | AN364C-1018 | $7.99 | |
| Stainless | 10-32 | AN364C-1032 | $2.53 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

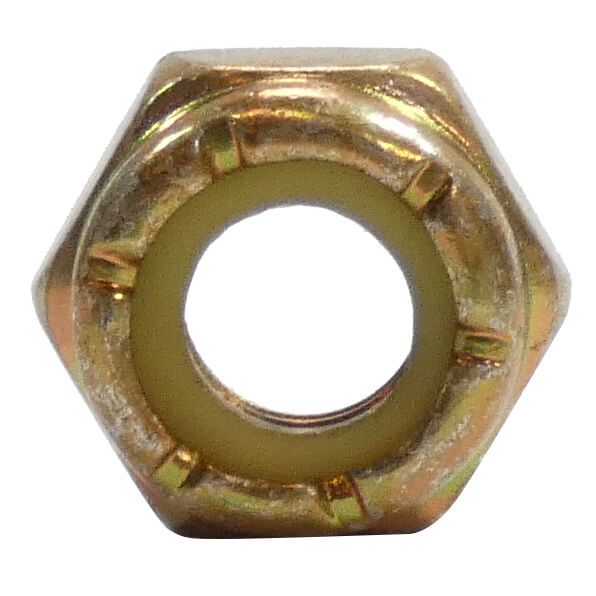

These precision-made nuts are reliable and economical fastening devices The fiber insert gives a friction grip on the threads of the bolt and holds securely. The AN364 (thin) stop nut is for use in structural applications where the bolt is loaded primarily in shear or in any application where the tensile strength of the regular height AN365 is not required. Cad stop nuts are furnished to military specifications. Stainless is furnished to military specification. AN364 (supersedes MS21083) - cad plated stop nuts AN365 (supersedes MS21044) - cad plated stop nuts Click here for AN365 Stop Nuts |
Reviews
Just as described
Verified Purchase
Nut, Elastic Stop MS21083N3
Good
Verified Purchase
Nut, Elastic Stop MS21083N3
Perfect, performed as expected
Verified Purchase
Nut, Elastic Stop MS21083N3
Perfect, performed as expected
Verified Purchase
MS21083N5 Nut Elastic Stop
Perfect, performed as expected
Verified Purchase
Stainless Steel Stop-Nut MS21083C08
Perfect, performed as expected
Verified Purchase
MS21083C3 Stainless Steel Metal AN364C1032
As described, and quick shipping
Verified Purchase
Nut, Elastic Stop MS21083N3
Good quality
Verified Purchase
Elastic Stop Nut MS21083N06
Verified Purchase
MS21083N08 Nut, Elastic Stop
Using the illustrated parts diagram for the Maule tailwheel on Aircraft Spruce’s website I ordered 2 AN360-720A lock nuts. This is a 1/2 inch nut. The low profile one. They sent me two of the high profile nuts under the MS code of MS21083N7. I phoned AS and notified the of this. THY said they would send two correct ones. Next I received two low profile lock nuts 7/16 nuts under the code of MS21083N7. Another call and sent them photos of both ANS so far nothing. No communication and no lock nuts.
Verified Purchase
Nut, Elastic Stop MS21083N7
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
C after the -1032 will indicate that this is a all-metal stop nut. You will need to go with a MS21042 series nut. MS21042-3 will be the correct cross reference part for your MS20364-1032C. You could also order part # 04-01359 which is a MS20364-1032C THIN HEX NUT.
"A" stands for non metallic insert, or elastic/nylon lock nut. They are the same part, we just drop the "a" in our system.
Use MS21044N3 or AN365-1032
