Rotax 912 12.5MM Oil Cooler Hose

$34.55/Foot
Quantity
Add to Wishlist
Part# 15-06907
MFR Model# 836-8

Overview

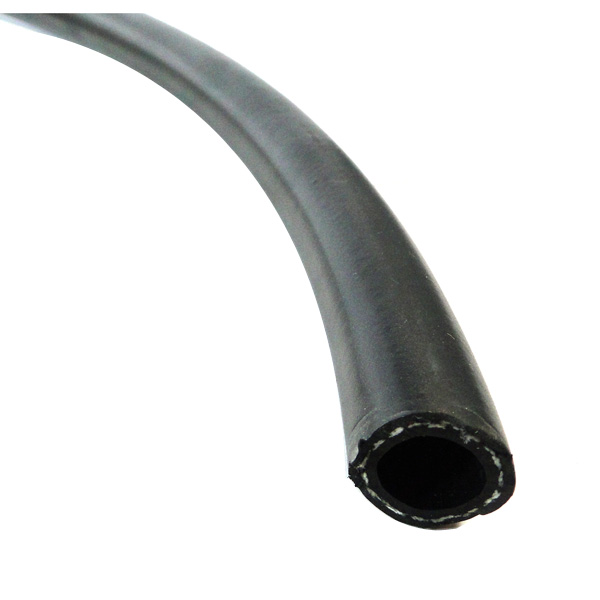

912 Oil Cooler Hose 12.5mm high heat hose for 912-914 oil coolers. Sold by the foot.

ID: 1/2"
OD: 3/4"

Specifications

  • Media: Petroleum base hydraulic fluids and lubricating oils
  • Maximum Working Pressure (psi): Up to 400
  • Hose I.D. Maximum (inch): 3/4
  • Maximum Working Pressure (MPa): Up to 2,8
  • Minimum Working Temperature Oil (F): -55
  • Maximum Working Temperature Oil (F): +302
  • Minimum Working Temperature Oil (C): -48
  • Maximum Working Temperature Oil (C): +150
  • Maximum Working Temperature Air (F): +212
  • Maximum Working Temperature Air (C): +100
  • Maximum Working Temperature Water (F): +185
  • Maximum Working Temperature Water (C): +85
  • Material - Cover: PKR neoprene, blue, MSHA accepted
  • Material - Hose Inner Tube: PKR
  • Compatible Fittings: 82 or HY series
  • Material - Hose reinforcement: One fiber braid

Reviews

Hose fit perfectly on Rotax fittings.

Robert L Verified Purchase

13MM Oil Hose

February 11, 2024

Sorry to say I havent reached the point of using it. It looks to be of excellent quality, as good or better than the hose I just removed as part of my condition inspection. Sorry not to be able to add more at this time.

Robert Verified Purchase

13MM Oil Hose

January 28, 2022

Exactly what I required. Always good service from ACS.

Steven H
June 11, 2017

Replaced oil lines on Rotax 912.

Mike C
May 18, 2017

Just the right size for the metric fittings found on Rotax engines.

Jeffrey F
October 14, 2020

Its a perfect hose and quick delivery. Wish the wall was bit more stiffer to ensure that it wont collapse at bends. Hope it gets harder over time.

Harry
November 17, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the OD of the hose?

The OD of this hose is approx 3/4 inch. The ID is 1/2 inch.

Q: What is the burst PSI on this hose?

Maximum Working Pressure (psi): Up to 400

Q: What is Mfg part number of this hose?

836-8

Q: Is this hose rated for the suction of rotax oil pump?

Yes this hose works for the suction and pressure lines on the rotax engine

Q: What phenix fiting (90 deg) fit in rotax oil hose (12.5 mm ID)

The Penix fittins are not designed to be used with the rotax hose. They are all speced in SAE sizes as well, not metric.

Q: Is this hose metal braided reinforced between the inside and outside layers?

This is a one fiber braid with an inner tube material of PKR.
