Home / Engine Parts / Air Filters / Donaldson /Donaldson Filters
Main Image

Donaldson Filters

40 Reviews 5 Answered Questions
From $81.75 to $802.00
Main Image
Donaldson OEM Description PN Buy

P107150		C-294510-0201, 13203C-150/152 & Various others Engine Intake air filter
08-06027
$236.95
Quantity

P107172		C-294510-0301, 13219C-170/172 Engine Intake air filter
08-06024
$233.95
Quantity

P15-1936		PS600073 / 561-020Piper PA-32R *(Engine Intake air filter)
08-06029
$159.80
Quantity
P107336C-294510-0401C-172XP/ 337 Engine Intake air filter
08-06038
$230.95
Quantity
AM102035FPC-294510-0501Engine Intake air filter
08-06052
$355.00
Quantity

P106150		0750038-4C-180/182/185 Engine Intake air filter
08-06023
$240.95
Quantity

P131367		C-294510-0901TR182/182R Engine Intake air filter
08-06042
$748.00
Quantity

AM102135FP		1250704-3C-206/207/210 Engine Intake air filter
08-06033
$336.00
Quantity
AM102235FP1250704-4C-210 Engine Intake air filter
08-06046
$327.00
Quantity
P1072101250846-1T206/T207/T210 Engine Intake air filter
08-06047
$352.00
Quantity

P131364		C-294510-0801T210N/P Engine Intake air filter
08-06049
$286.95
Quantity
P10842199100181T310/320/335/401/402/421 Engine Intake air filter
08-06056
$215.95
Quantity

P109337		C-294510-0701337/T337 Engine Intake air filter
08-06051
$398.00
Quantity

AM102735EA		9910018-2310/401/402 Engine Intake air filter
08-06054
$224.95
Quantity
AM102935EA9910200-1310R Engine Intake air filter
08-06055
$311.00
Quantity

P128156		9913001-1340/414 Engine Intake air filter
08-06028
$186.90
Quantity

P128157		9910141-1404 Engine Intake air filter
08-06057
$295.95
Quantity

EBG03-0001		C-294501-0101Instrument Air Filter Assembly, Cover & Filter element
08-06059
$744.00
Quantity
P105290C-294501-0203Replaceable instrument Instrument air filter only, part of EBG03-0002 assy
08-06060
$81.75
Quantity

AM103435IA		C-294501-0301Instrument Air Filter
08-06035
$140.75
Quantity

AM103535IA		C-294501-0302Instrument Air Filter
08-06036
$132.75
Quantity

P130374		45-91210, 13917Debonair & Early Bonanza Engine Intake air filter
08-06062
$561.00
Quantity

P105304		35-380035-5, -1Bonanza Engine Intake air filter
08-06032
$277.95
Quantity

P137627		35-380035-7Bonanza Engine Intake air filter
08-06026
$177.85
Quantity

P136680		105-389000-3B76 Engine Intake air filter
08-06063
$266.95
Quantity

P133881		P13-3881B77 Engine Intake air filter
08-06064
$291.95
Quantity

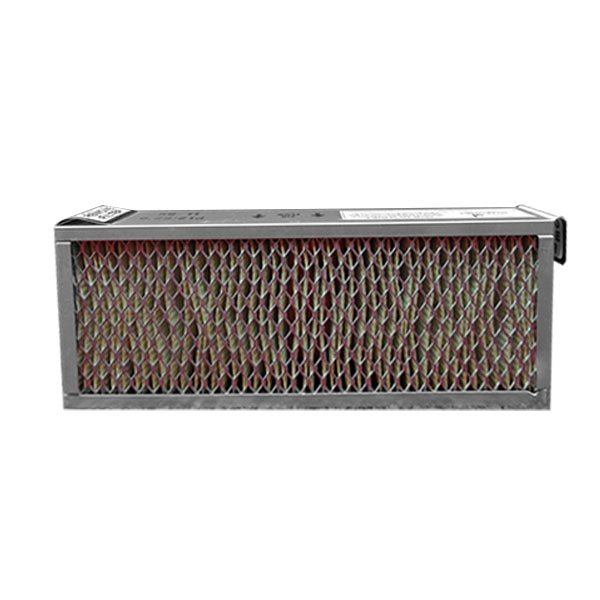

P128219P12-8219, 122601, AM101020FP95-55, A55, B55 Baron Engine Intake air filter
08-06065
$116.75
Quantity
P127996P12-7996, 121128-2, AM101120FPC55, D55, E55 & 58 Baron Engine Intake air filter
08-06066
$182.75
Quantity

P12-8167		96-389005-1E55 & 58 Baron Engine Intake air filter
08-06025
$156.85
Quantity
P10870050-389070-15Duke Engine Intake air filter
08-06067
$295.95
Quantity

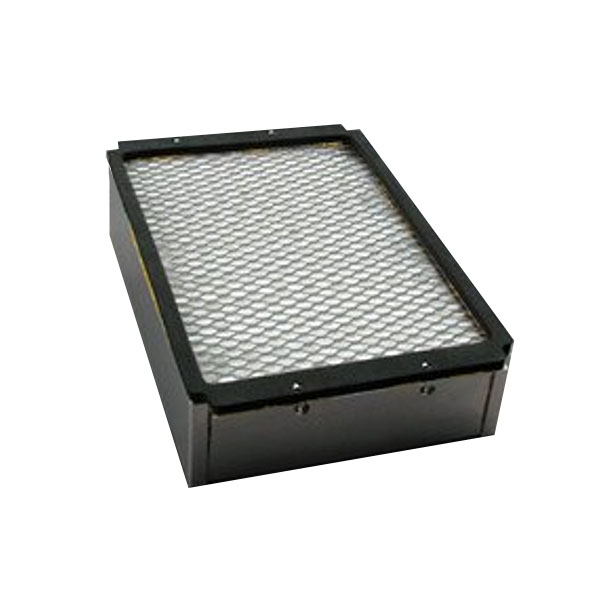

P12443950-389070-2358P Baron Engine Intake air filter
08-06069
$117.75
Quantity

P105798 / AM101720FP		50-389070-11A65, 70, B80 Engine Intake air filter
08-06070
$157.75
Quantity

EBG03-0003		205538-089Instrument air filter
08-06072
$297.95
Quantity

EBG03-0018		101-380039-1King Air Instrument air filter
08-06034
$105.75
Quantity

P136602		560-584PA-28-236 Engine Intake air filter
08-06074
$292.95
Quantity
P138683560-904PA-28-236 Engine Intake air filter
08-06075
$637.00
Quantity

P106590		560-747PA-31 Engine Intake air filter
08-06076
$170.75
Quantity
460-609PA-31P Engine Intake air filter
08-06077
$439.00
Quantity

P136739		560-947PA-32 Engine Intake air filter
08-06078
$433.00
Quantity
P13858086881-2, 560-953PA-44T Engine Intake air filter
08-06080
$802.00
Quantity

AM108365FP		P13-6287M20K Engine Intake air filter
08-06081
$357.00
Quantity

204418-156		77852Lycoming Engine Spin on oil Filter adapter
08-06037
$346.00
Quantity

P11-0172		C-294510-0601Engine Intake air filter
08-06228
$626.00
Quantity

P198281		P198281, CA3559172R & 172S Engine Intake Filter
08-07051
$194.75
Quantity

P198290		P198290, CA3717182S Engine Intake Filter
08-07052
$241.95
Quantity

P197268		P197268T206H Engine Intake Filter
08-07053
$378.00
Quantity

P13-0234		125997-010, BA6210M20J Engine Intake Filter
08-07054
$224.95
Quantity

ED04011		600417-501M20K (s/n 25-1000 and up) engine intake Filter
08-07055
$245.95
Quantity

ED04028		600417-503M20M/R/S Engine Intake Filter
08-07056
$197.75
Quantity

P10-5225		C-294501-0103Various Instrument Air Filter
08-07057
$89.75
Quantity
P617058460-632Oval Piper Filter PA28/PA34
08-07276
$167.75
Quantity
P617053460-630Round Piper Filter PA28/PA44
08-07277
$156.75
Quantity
P617774460-629Round Piper Filter PA23-250 (s/n 27-2505 and up)/PA32
08-07278
$146.75
Quantity

WF334552		3029268 Alternate 3028856, 3029267 P-1018Pratt & Whitney Canada (Various Aircraft)
08-15979
$346.00
Quantity

WF336238		3038142 P-1139Pratt & Whitney Canada (Various Aircraft)
08-15983
$450.00
Quantity
--9546982 HBC, 6260A77 M0Mooney M20J & M20K Air Filter Assembly Cover & Filter
08-15994
$123.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Donaldson has been the OEM source for Cessna, Piper, Beechcraft, and Maule & Mooney since the 1960's. They currently supply Cessna all of their SE Piston aircraft filters, Beech Bonanza & Baron filters, Mooney & Maul with their filters. For Piper they currently supply all of their Turbo charge aircraft with filters. Factory authorized distributor for Donaldson filters

*Images are representative of the product and may not be the exact item shown.

Features

  • High Performance Engine Intake Filters
  • Synthetic media: offers improved air flow and better dust capturing efficiency
  • Engineered to last 500 Flight Hours
  • Washable filter element, use compressed air/warm soapy water
  • Visually inspect the filter at 100 hours remove and clean only as needed
  • See document P46-9075 for complete servicing details
  • Clean installation: dry media, no sticky/messy oil to trap dirt
  • OEM choice for GA aircraft for over 30 years
  • Meets All Flammability requirements per FAR 23.853
  • Solid Construction with no removable parts - no loose screens,
  • elements or screws
  • Dedicated Website to General Aviation products Donaldson General Aviation
  • Exceptional wet weather performance, no oil to wash away in wet weather
  • Moisture passes thru the filter, doesn't build up an oiled surfaces
  • (no oil present)
  • Only filters with * after part number have cellulous media
  • All filters starting with "P" feature our Premium Synthetic filter media
  • No Airworthiness Directives against Synthetic media filters
  • Cost efficient over the life of the filter, 3 years, 500 FH 5 cleanings

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Great Product

Flight T Verified Purchase

Donaldson Air Filter P10-6150
October 17, 2024

Very nice PT6 P3 filter. Much less expensive then the P&W Part.

Alaska A Verified Purchase

Donaldson P3 Compressor Air Filter Element
October 11, 2024

decent price

Central A Verified Purchase

Donaldson Oil Filter Adapter 204418-156
September 20, 2024

Quality PMA part, perfect fit replacement part.

Richard F Verified Purchase

Donaldson Oil Filter Adapter 204418-156
August 29, 2024

Great product - a little high on price

James W Verified Purchase

Donaldson Filter ED04011 M20K
July 2, 2024

This Donaldson filter for an A36 did not include the foam seal to seal the gasket to the airbox. It is needed and even the instructions reference making sure it is applied to the filter. Whats worse is trying to get a hold of Donaldson customer support via the contact numbers on the Donaldson box. Contacted Spruce Customer Service and waiting on a reply. In the meantime, Im in a holding pattern and the A36 is not in the air. I trust in Spruce to help me with this in a timely manner.

Integrity A Verified Purchase

Donaldson Air Filter P13-7627
June 21, 2024

Robert E Verified Purchase

Donaldson Filter P198281
October 24, 2023

Good product

Ronald G Verified Purchase

Donaldson Filter P198281
October 17, 2023

Boss A Verified Purchase

Donaldson Air Filter P10-7150
October 17, 2023

It fit perfect

Steven B Verified Purchase

Donaldson Air Filter P10-7150
May 30, 2023

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these filters subject to AD 84-26-02? AD is for paper element filters and the description says they are synthetic elements?

Per Donaldson: Yes, these filters do in fact feature our Synthetic Pleated media. AD 84-26-02 calls out paper filters or cellulose based filter media. Donaldson no longer manufacture any General Aviation filters with cellulose (paper) filter media.

Q: Does the p107150 come with the attaching screws and gasket?

The filter assembly has a foam tape seal and the fasteners are included.

Q: Does the filter P/N: 101-380039-1 come with the o-ring/packing?

It does not come with oring/packing.

Q: What are the dimensions on the AM102735EA filter?

The OD is 6", the ID is 4" and the height is 7".

Q: Does this come with 8130 paperwork?

Yes, 8130 domestic paperwork is included.
