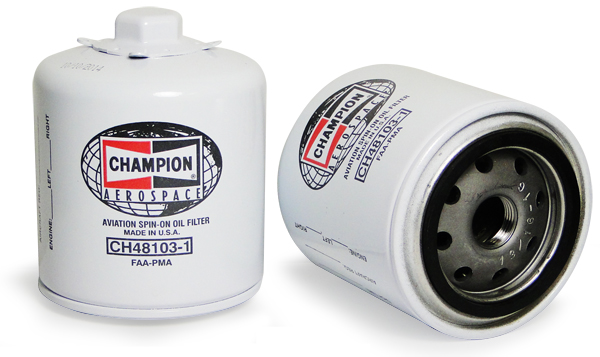

Champion Oil Filter CH48103-1

Select Package Quantity:
Single Filter6 Pack12 Pack
Quantity
Add to Wishlist

Overview

Spin-On Oil Filter CH48103-1 by Champion. Replaces oil filter element. Easy to install. Saves time and clean-up. FAA Approved.

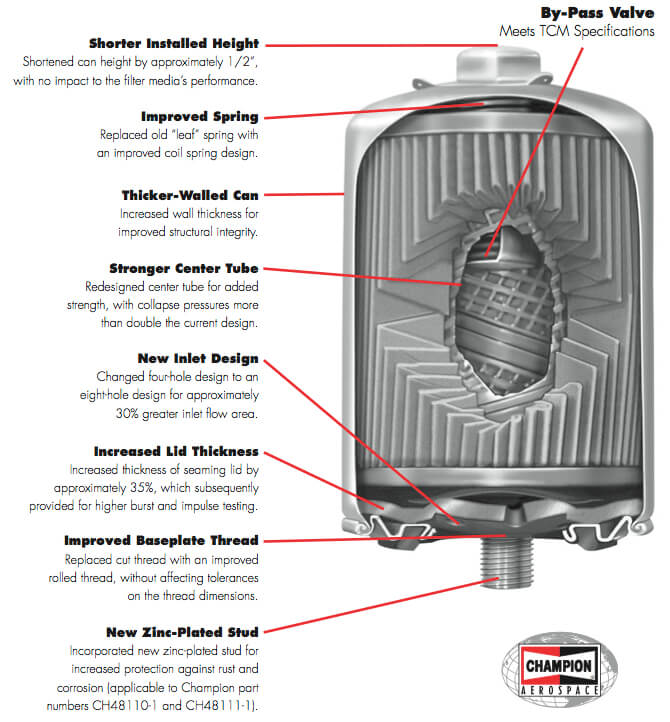

Customers told Champion Aerospace the height of a standard oil filter can make it difficult for them to install the filter in certain engine applications. So, operating on the premise that size really does matter, they made their Champion oil filter can 1/2" shorter and, in the process, added design improvements that now make their filters stronger and more effective than ever before.

Champion Aerospace’s full-pleat, resin-impregnated micronic filter media traps all harmful particles, including metallic chips which result from abnormal engine wear. Because the oil flows through many layers of locked-in fibers, there is no migration of fiber material to clog engine oil passages or affect bearing surfaces. According to industry-approved tests, the Champion oil filter traps and holds more dirt and harmful particles during its normal operating time than any other similar filter.

Features

  • Replacement elements service engine-mounted or line-installed filter systems incorporating a permanent housing assembly.
  • All sizes of replacement elements are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons
  • Modern spin-on oil filters contain the element, incorporating the anti-drain back valve mechanism (and internal bypass valve 48108-1/48109-1), and are sealed in a disposable housing.
  • All sizes of spin-on filters are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons.
  • Silicone impregnated filter gasket aids in future removal.
  • Shorter stud length on CH 48110-1 for tight clearance applications.
  • Heavy, corrugated steel center tube supports each convoluted pleat of the filter element and produces a substantially higher collapse-pressure rating, twice that of other similar filters.
  • Maximum full-flow design, without interference from center-bolt oil filter assemblies, provides increased oil filtration each engine-operating hour.

Specifications

Aircraft Type
Cessna 172N, 177, 177RG, R182, T182, TR18, FTR182
Mooney 50 M20J-201
Piper A-28R-180, 236, 32R-300, 32RT-300T, 32-301, 32R-301
Other 4-3/4"H
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

The very best. Far superior to Tempest

Rick C Verified Purchase

CH48103-1 Champion Oil Filter

September 27, 2024

I chose this oil filter over its Tempest counterpart. I have been very satisfied with the Champion filter and will continue to pay a little extra for it.

David B Verified Purchase

CH48103-1 Champion Oil Filter

July 31, 2024

Its whats on my plane, so we will continue to use it.

Jeremy D Verified Purchase

CH48103-1 Champion Oil Filter

July 9, 2024

Very expensive compared to what it use to cost

Chuck W Verified Purchase

CH48103-1 Champion Oil Filter

June 25, 2024

They are round and shiny.

Freeland A Verified Purchase

CH48103-1 Champion Oil Filter

October 19, 2023

Spin-on replacement for my C82R. The attached nut is 1 and comes off easily with a 1 shallow socket and 3/8 wrench. Changed my oil then took a 900nm IFR flight to Vermont the next day. My engine says, Thanks!.

John W Verified Purchase

CH48103-1 Champion Oil Filter

October 3, 2023

Hartley P Verified Purchase

CH48103-1 Champion Oil Filter

August 5, 2023

Great Product!!!! Always the best quality. Took too long to get so plan your oil changes!!!!

Richard E Verified Purchase

CH48103-1 Champion Oil Filter

April 19, 2023

Product was as expected

Philip P Verified Purchase

CH48103-1 Champion Oil Filter

December 23, 2022

Exactly what I was looking for!!!

Philip B Verified Purchase

CH48103-1 Champion Oil Filter

December 22, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What size threads on the Champion Oil Filter CH48103-1?

13/16-16 thread.

Q: What size threads on Champion oil filter CH48108-1?

3/4-16.
