| Model No. | Description | PN | Price | Buy |
|---|---|---|---|---|
| Christen 801-4 Basic System Kit | For four-cylinder engines. Includes 802 Oil Valve (with plug wrench and plugs for unused ports), 803 Oil Separator, 806-4 Breather Tee, and product manual which provides detailed instructions for application. Weight: 4.75 lb. installed | 801-4 | $2711.00 | |
| Christen 70055-001 | 801-4 Invert Oil System Broch | 05-20600 | $42.65 | |
| Christen 801-6 Basic System Kit | For six-cylinder engines. Same as 801-4 Kit, but is supplied with 806-6 Breather Tee. Weight: 4.75 lb. installed | 801-6 | $2720.00 | |

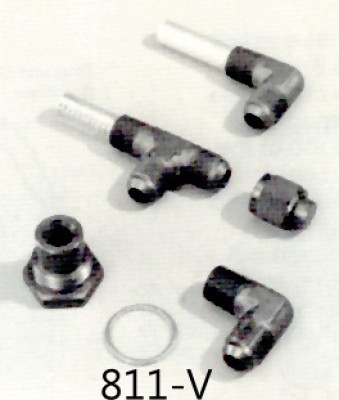

| Christen 811-V Sump Kit | For vertical-screen sump engines. Includes 810-S Oil Strainer Fitting, 810-R Oil Return Fitting, 804-V SUmp Fitting (vertical type) with crush gasket and MS20822-10D elbow. Weight: 0.50 lb. installed | 811-V | $1160.00 | |

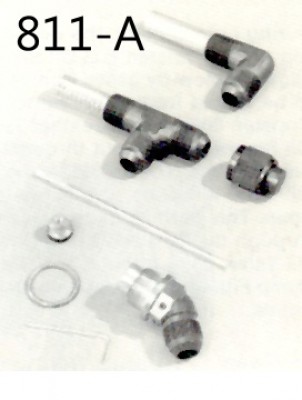

| Christen 811-A Sump Kit | For horizontal-screen sump engines. Includes 810-S Oil Strainer Fitting, 810-R Oil Return Fitting, 805 Sump Plug with insertion tool, 804-A Sump Fitting (angular 360° swiven-type) with crush gasket and wrench for swivel clamping screw. Weight: 0.36 lb. installed | 811-A | $1394.00 | |

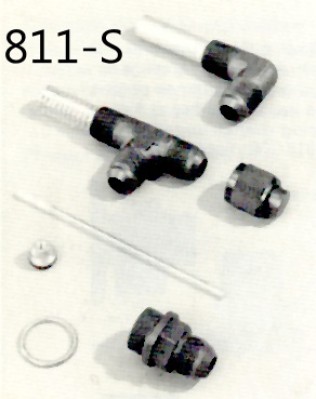

| Christen 811-S Sump Kit | For horizontal-screen sump engines. Includes 810-S Oil Strainer Fitting, 810-R Oil Return Fitting, 805 Sump Plug with insertion tool, 804-S Sump Fitting (straight-type) with crush gasket. Weight: 0.33 lb. installed | 811-S | $1249.00 | |

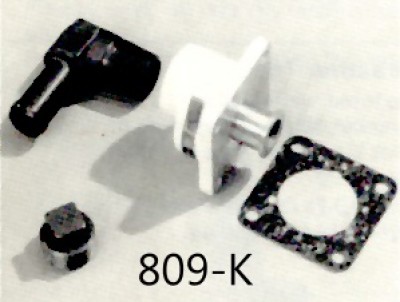

| Christen 809-K Breather Adapter Kit | For engines with forward breather ports such as the O-235 and O-290 models. Includes 809 Breather Adapter with gasket. AN842-12D hose elbow, and MS209-13-6D plug for forward breather port. Weight: 0.53 lb. installed | 809-K | $693.00 | |
| Christen 812-2 Weld Boss Kit | For addition of oil ports to engine sumps. Includes two 812 Weld Bosses and quantity of 5% silicon-aluminum welding rod (type 4043) Weight: 0.12 lb. installed | 812-2 | $227.95 | |
| Christen 812-1 Weld Boss Kit | Same as 812-2 Kit, except with only one 812 WEld Boss for addition of single sump port. Weight: 0.06 lb. installed | 812-1 | $139.75 | |
| Christen 813-4 Breather Coil | Stainless steel spring wire. Installed inside breather hose to permit relatively sharp bends without collapsing or kinking. 10 x 47/64". Weight 0.12 lb. installed | 813-4 | $145.75 | |
| Christen 813-6 Breather Coil | Stainless steel spring wire. Installed inside breather hose to permit relatively sharp bends without collapsing or kinking. 10 x 63/64". Weight: 0.12 lb. installed | 813-6 | $44.50 | |

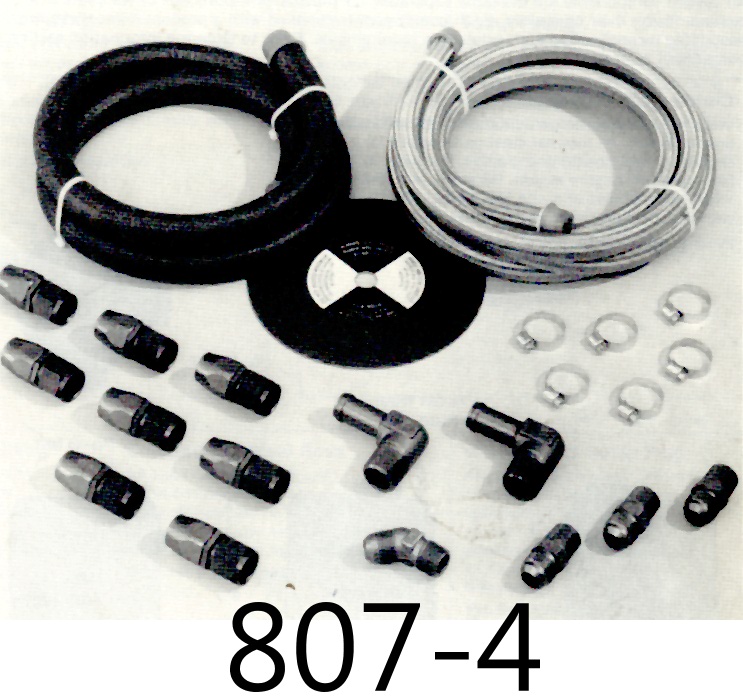

| Christen 807-4 Deluxe Hose and Fittings Kit | All hoses and fittings required for deluxe show-plane quality installation on four-cylinder engines. Includes Aeroquip braided stainless steel hose for oil lines, MIS-H 6000 rubber-fabric hose for breather lines, thin abrasive cut-off wheel for professional-quality hose cuts, AN and MS fittings (blue anodized), Aeroquip hose and fittings (blue and red anodized), and miniature stainless steel hose clamps. All materials are factor new; no surplus. Weight Excluding Hose: 1.53 lb. installed Contents: 3 ea. AN816-10D Nipples 1 ea. MS20823-10D Elbow 2 ea. AN842-12D Hose Elbows 8 ea. Aeroquip 816-10D Hose Fittings 6 ea. 50040-012 Worm-Drive Hose Clamps 10 ft. Aeroquip 601-10 Hose 5 ft. MIL-H 6000-3/4 Hose 1 ea. 50037-001 Abrasive Cut-Off Wheel | 807-4 | $3061.00 | |
| 807-4 Economy Hose & Fitting Kit | These kits include the same items as Aviat Factory Kits but are packaged by Aircraft Spruce | 08-07308 | $2057.00 | |
| 807-6 Economy Hose & Fitting Kit | These kits include same items as Aviat Factory Kits but are packaged by Aircraft Spruce | 08-07309 | $2110.00 |
Overview
|

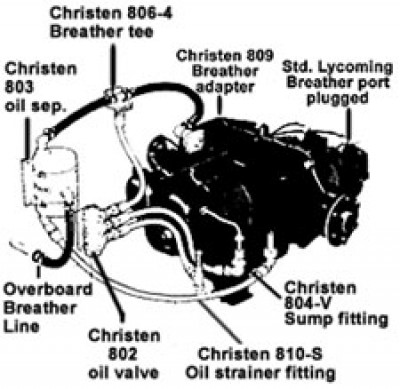

This accessory kit for Lycoming engines provides normal engine lubrication with minimal oil loss during aerobatic flight. It functions as a self-contained extension of the normal engine oil and breather systems.Can be installed in a few hours without engine disassembly. See chart below for System Selection. 809-K Breather Adapter Kit 811-V Sump Kit for Vertical Screen Sump Engines 811-A Sump Kit for Horizontal Screen Sump Engines 811-S Sump Kit for Horizontal Screen Sump Engines 807-4 Hose & Fittings Kit for 4-Cyl. Engines (incl. all required hoses, fittings and clamps) |
System Selection
Download the System Selection (PDF)
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: the difference between this part: 807-4 and 801-4, are the the hoses and fittings? or do I have to buy this 801-4 and if I want the delux hoses and fittings , do I have to buy also this 807-4?
801-4 is the basic kit, and 807-4 is the delux hose and fitting add on. You would need both kits if you want the delux hoses and fittings.
Q: Can I buy the 805 sump plug by itself?
Yes, it can be special ordered. Please contact our sales department for current price and lead time.
Q: Are both the premium and standard hose and fittings kits approved for certified aircraft?
Part is for experimental only. Not to be used on certified aircraft except some Pitts models.
