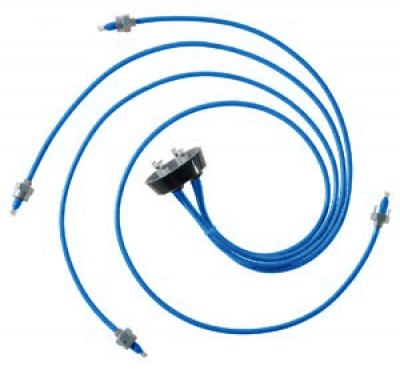

- Photo may represent series and not specific product
- SHARE
(Hover to zoom | Use mouse wheel for +/-)
| Model | Bendix | Slick | 4 CYL |
6 CYL |
Elbow | Straight | PN | Price | Buy |
|---|---|---|---|---|---|---|---|---|---|
| KA11480 | -- | X | -- | X | -- | X | 08-13301 | $1350.00 | |
| KA11480E | -- | X | -- | X | X | -- | 08-13302 | $2440.00 | |
| KA11780 | -- | X | X | -- | -- | X | 08-13303 | $921.00 | |
| KA11780E | -- | X | X | -- | X | -- | 08-13304 | $2455.00 | |
| KA11878 | -- | X | -- | X | -- | X | 08-13305 | $1349.00 | |
| KA11878E | -- | X | -- | X | X | -- | 08-13306 | $2440.00 | |
| KA11884 | -- | X | -- | X | -- | X | 08-13307 | $1347.00 | |
| KA11884E | -- | X | -- | X | X | -- | 08-13308 | $2437.00 | |
| KA11950 | X | -- | -- | X | -- | X | 08-13309 | $1350.00 | |
| KA11950E | X | -- | -- | X | X | -- | 08-13310 | $2440.00 | |
| KA11978E | X | -- | -- | X | X | -- | 08-13311 | $2447.00 | |
| KA12007 | X | -- | X | -- | -- | X | 08-13312 | $972.00 | |
| KA12015 | X | -- | -- | X | -- | X | 08-13313 | $1352.00 | |
| KA12015E | X | -- | -- | X | X | -- | 08-13314 | $2440.00 | |
| KA12037 | X | -- | -- | X | -- | X | 08-13315 | $1352.00 | |
| KA12037E | X | -- | -- | X | X | -- | 08-13316 | $2423.00 | |
| KA12112 | X | -- | -- | X | X | -- | 08-13317 | $914.00 | |
| KA12112E | X | -- | X | -- | X | -- | 08-13318 | $2447.00 | |
| KA12120E | X | -- | -- | X | X | -- | 08-13319 | $2440.00 | |
| KA12121 | X | -- | -- | X | -- | X | 08-13320 | $1422.00 | |
| KA12121E | X | -- | -- | X | X | -- | 08-13321 | $2440.00 | |
| KA12130 | X | -- | -- | X | -- | X | 08-13322 | $1361.00 | |
| KA12130E | X | -- | -- | X | X | -- | 08-13323 | $2444.00 | |
| KA12154 | X | -- | -- | X | -- | X | 08-13324 | $1356.00 | |
| KA12154E | X | -- | -- | X | X | -- | 08-13325 | $2423.00 | |
| KA12157 | X | -- | -- | X | -- | X | 08-13326 | $1361.00 | |
| KA12157E | X | -- | -- | X | X | -- | 08-13327 | $2423.00 | |
| KA12176 | X | -- | -- | X | -- | X | 08-13328 | $1349.00 | |
| KA12216 | X | -- | -- | X | -- | X | 08-13329 | $1349.00 | |
| KA12216E | X | -- | -- | X | X | -- | 08-13330 | $2440.00 | |
| KA12235 | X | -- | -- | X | -- | X | 08-13331 | $924.00 | |
| KA12235E | X | -- | X | -- | X | -- | 08-13332 | $2450.00 | |
| KA12244 | X | -- | -- | X | -- | X | 08-13333 | $1431.00 | |
| KA12244E | X | -- | -- | X | X | -- | 08-13334 | $2440.00 | |
| KA12247 | X | -- | -- | X | -- | X | 08-13335 | $1349.00 | |
| KA12247E | X | -- | -- | X | X | -- | 08-13336 | $2440.00 | |
| KA12259 | X | -- | -- | X | -- | X | 08-13337 | $1349.00 | |
| KA12318 | -- | X | -- | X | -- | X | 08-13339 | $1824.00 | |
| KA12318E | -- | X | -- | X | X | -- | 08-13340 | $2440.00 | |
| KA12339E | X | -- | -- | X | X | -- | 08-13341 | $2440.00 | |
| KA12360 | X | -- | X | -- | -- | X | 08-13342 | $930.00 | |
| KA12360E | X | -- | X | -- | X | -- | 08-13343 | $2447.00 | |
| KA12364 | X | -- | X | -- | -- | X | 08-13344 | $934.00 | |
| KA12364E | X | -- | X | -- | X | -- | 08-13345 | $2455.00 | |
| KA12365E | X | -- | X | -- | X | -- | 08-13346 | $2447.00 | |
| KA12381 | -- | X | -- | X | -- | X | 08-13347 | $1427.00 | |
| KA12381E | -- | X | -- | X | X | -- | 08-13348 | $2423.00 | |
| KA12423 | X | -- | X | -- | -- | X | 08-13349 | $932.00 | |
| KA12423E | X | -- | X | -- | X | -- | 08-13350 | $2447.00 | |
| KA12447 | X | -- | -- | X | -- | X | 08-13351 | $1349.00 | |
| KA12474 | X | -- | -- | X | -- | X | 08-13352 | $1431.00 | |
| KA12474E | X | -- | -- | X | X | -- | 08-13354 | $2440.00 | |
| KA12508E | -- | X | X | -- | X | -- | 08-13355 | $2458.00 | |
| KA12616 | X | -- | X | -- | -- | X | 08-13356 | $914.00 | |
| KA12616E | X | -- | X | -- | X | -- | 08-13357 | $2447.00 | |
| KA12628 | X | -- | -- | X | -- | X | 08-13358 | $1349.00 | |
| KA12628E | X | -- | -- | X | X | -- | 08-13359 | $2440.00 | |
| KA12709 | X | -- | -- | X | -- | X | 08-13360 | $1355.00 | |
| KA12712 | X | -- | -- | X | -- | X | 08-13362 | $2444.00 | |
| KA12712E | X | -- | -- | X | X | -- | 08-13364 | $2440.00 | |
| KA12742 | X | -- | -- | X | -- | X | 08-13365 | $1349.00 | |
| KA12745 | X | -- | -- | X | -- | X | 08-13366 | $1349.00 | |
| KA12745E | X | -- | -- | X | X | -- | 08-13367 | $2440.00 | |
| KA12778 | -- | X | -- | X | -- | X | 08-13368 | $1350.00 | |
| KA12778E | -- | X | -- | X | X | -- | 08-13369 | $2440.00 | |
| KA12790 | X | -- | -- | X | -- | X | 08-13370 | $1349.00 | |
| KA12790E | X | -- | -- | X | X | -- | 08-13371 | $2440.00 | |
| KA12828 | -- | X | -- | X | -- | X | 08-13372 | $1340.00 | |
| KA12828E | -- | X | -- | X | X | -- | 08-13373 | $2440.00 | |
| KA12851 | X | -- | -- | X | -- | X | 08-13374 | $1349.00 | |
| KA12851E | X | -- | -- | X | X | -- | 08-13375 | $2440.00 | |
| KA12854 | X | -- | -- | X | -- | X | 08-13376 | $1324.00 | |
| KA12854E | X | -- | -- | X | X | -- | 08-13377 | $2440.00 | |
| KA12865 | X | -- | -- | X | -- | X | 08-13378 | $1349.00 | |
| KA12865E | X | -- | -- | X | X | -- | 08-13379 | $2440.00 | |
| KA12980 | X | -- | -- | X | -- | X | 08-13380 | $1349.00 | |
| KA12890E | X | -- | -- | X | X | -- | 08-13381 | $2440.00 | |
| KA12932 | -- | X | -- | X | -- | X | 08-13382 | $1350.00 | |
| KA12932E | -- | X | -- | X | X | -- | 08-13383 | $2440.00 | |
| KA14001 | -- | X | X | -- | -- | X | 08-13384 | $980.00 | |
| KA14002 | -- | X | X | -- | -- | X | 08-13385 | $938.00 | |
| KA14004 | -- | X | X | -- | -- | X | 08-13386 | $920.00 | |
| KA14004E | -- | X | X | -- | X | -- | 08-13387 | $2455.00 | |
| KA14033 | X | -- | X | -- | -- | X | 08-13389 | $924.00 | |
| KA14003E | X | -- | X | -- | X | -- | 08-13390 | $2399.00 | |
| KA17001 | X | -- | -- | X | -- | X | 08-13391 | $1254.00 | |
| KA17001E | X | -- | -- | X | X | -- | 08-13393 | $2438.00 | |
| KA17002 | X | -- | -- | X | -- | X | 08-13394 | $1254.00 | |
| KA17002E | X | -- | -- | X | X | -- | 08-13395 | $2438.00 | |
| KA17005 | X | -- | X | -- | -- | X | 08-13396 | $816.00 | |
| KA17005E | X | -- | X | -- | X | -- | 08-13397 | $2455.00 | |
| KA17006 | X | -- | X | -- | -- | X | 08-13398 | $820.00 | |
| KA17006E | X | -- | X | -- | X | -- | 08-13399 | $2455.00 | |
| KA17007 | X | -- | X | -- | -- | X | 08-13400 | $820.00 | |
| KA17007E | X | -- | X | -- | X | -- | 08-13401 | $2455.00 | |
| KA17008 | X | -- | X | -- | -- | X | 08-13402 | $820.00 | |
| KA17008E | X | -- | X | -- | X | -- | 08-13403 | $2455.00 | |
| KA17011 | -- | X | X | -- | -- | X | 08-13404 | $820.00 | |
| KA17011E | -- | X | X | -- | X | -- | 08-13405 | $2455.00 | |
| KA12365 | X | -- | X | -- | -- | X | 08-13407 | $914.00 | |
| KA14001E | -- | X | X | -- | X | -- | 08-13408 | $2455.00 | |
| KA11730 | X | -- | -- | X | -- | X | 08-13409 | $1433.00 | |
| KA11730E | X | -- | -- | X | X | -- | 08-13410 | $2440.00 | |
| KA11740 | X | -- | -- | X | -- | X | 08-13411 | $1370.00 | |
| KA11740E | X | -- | -- | X | X | -- | 08-13412 | $2440.00 | |
| KA12007E | X | -- | X | -- | X | -- | 08-13413 | $2471.00 | |
| KA12120 | X | -- | -- | X | -- | X | 08-13414 | $1349.00 | |
| KA12176E | X | -- | -- | X | X | -- | 08-13415 | $2440.00 | |
| KA12508 | -- | X | X | -- | -- | X | 08-13416 | $927.00 | |
| KA17012E | X | -- | 8 CYL | -- | X | -- | 08-13418 | $2434.00 | |
| KA11978 | -- | -- | -- | X | -- | -- | 08-13419 | $1355.00 | |
| KA12045E | -- | X | X | -- | X | -- | 08-13420 | $2447.00 | |
| KA12351 | X | - | X | -- | -- | X | 08-13421 | $914.00 | |
| KA12351E | X | - | X | -- | X | -- | 08-13422 | $2447.00 | |
| KA12402 | X | - | X | -- | -- | X | 08-13423 | $921.00 | |
| KA12402E | -- | X | X | -- | X | -- | 08-13424 | $2450.00 | |
| KA12411 | -- | X | X | -- | -- | X | 08-13425 | $914.00 | |
| KA12411E | -- | X | X | -- | X | -- | 08-13426 | $2447.00 | |
| KA12780 | -- | X | -- | X | -- | X | 08-13427 | $1349.00 | |
| KA12780E | -- | X | -- | X | X | -- | 08-13428 | $2440.00 | |
| KA12896 | -- | X | -- | X | -- | X | 08-13429 | $1355.00 | |
| KA12896E | -- | X | -- | X | X | -- | 08-13430 | $2440.00 | |
| KA12938 | -- | X | -- | X | -- | X | 08-13431 | $1350.00 | |
| KA12938E | -- | X | -- | X | X | -- | 08-13432 | $2440.00 | |
| KA14000E | -- | X | X | -- | X | -- | 08-13433 | $2447.00 | |
| KA14005 | -- | X | X | -- | -- | X | 08-13434 | $929.00 | |
| KA14005E | -- | X | X | -- | X | -- | 08-13435 | $2455.00 | |
| KA14006 | -- | X | X | -- | -- | X | 08-13436 | $914.00 | |
| KA14006E | -- | X | X | -- | X | -- | 08-13437 | $2447.00 | |
| KA14007 | -- | X | X | -- | -- | X | 08-13438 | $921.00 | |
| KA14007E | -- | X | X | -- | X | -- | 08-13439 | $2455.00 | |
| KA14027 | -- | X | X | -- | -- | X | 08-13440 | $929.00 | |
| KA14027E | -- | X | X | -- | X | -- | 08-13441 | $2455.00 | |
| KA14045 | -- | X | X | -- | -- | X | 08-13442 | $914.00 | |
| KA14045E | -- | X | X | -- | X | -- | 08-13443 | $2447.00 | |
| KA16001 | -- | X | -- | X | -- | X | 08-13444 | $1356.00 | |
| KA16001E | -- | X | -- | X | X | -- | 08-13445 | $2440.00 | |
| KA16002 | -- | X | -- | X | -- | X | 08-13446 | $1350.00 | |
| KA16002E | -- | X | -- | X | X | -- | 08-13447 | $2440.00 | |
| KA16014 | -- | X | -- | X | -- | X | 08-13448 | $1437.00 | |
| KA16014E | -- | X | -- | X | X | -- | 08-13449 | $2440.00 | |
| KA16044 | -- | X | -- | X | -- | X | 08-13450 | $1350.00 | |
| KA16044E | -- | X | -- | X | X | -- | 08-13451 | $2440.00 | |
| KA12772E | -- | X | -- | X | X | -- | 08-13452 | $2440.00 | |
| KA12769 | -- | X | -- | X | -- | X | 08-13453 | $1096.00 | |
| KA12769E | -- | X | -- | X | X | -- | 08-13454 | $2441.00 | |
| KA12447E | -- | X | -- | X | X | -- | 08-13455 | $2440.00 | |
| KA12779 | -- | X | -- | X | -- | X | 08-13456 | $1350.00 | |
| KA12779E | -- | X | -- | X | X | -- | 08-13457 | $2440.00 | |
| KA14002E | -- | X | X | -- | X | -- | 08-13458 | $2455.00 | |
| KA12259E | X | -- | -- | X | X | -- | 08-13460 | $2440.00 |
Overview
|
UNIQUE SPRING DESIGN:
PowerUp ircraft engine ignition harnesses incorporate a negative-pitch spring design (the tip of the coil spring extends inward) allowing the coil spring tip to lie flat against the spark plug electrode, providing 360º contact. Ignition energy is maximized and flashover is reduced to a minimum. REPLACEABLE CONTACT SPRINGS: Replacement springs are available separately saving you time and money when a field repair is necessary. PLATED STEEL NUT: Steel nuts offer superior strength compared to aluminum nuts and reduce the potential for galling during installation. PERFORMANCE – PLUS: Using a tinned-copper, nickel plated braid shielding substantially reduces EMI and combined with a very flexible 19 strand conductor of stainless steel wire provides the ultimate in wire conductivity and ease of installation. STRAIGHT & 90 DEGREE STEEL ELBOW LEADS AVAILABLE: Steel nuts offer superior strength compared to aluminum nuts and reduce the potential for galling during installation. ABRASION AND HEAT RESISTANT: The abrasion resistant red polymer cover has been engineered specifically for the high-temperature environment of reciprocating engines. |
Reviews
5 stars thanks again
Jose T
Verified Purchase
Verified Purchase
PowerUp KA11740 Ignition Harness Blue
July 14, 2024
Well made and a perfect fit for my O-320.
Christopher M
Verified Purchase
Verified Purchase
PowerUp KA12364 Ignition Harness Blue
July 29, 2023
Plane C
Verified Purchase
Verified Purchase
PowerUp KA16001 Ignition Harness Blue
May 17, 2022
Perfect fit, great product! Shipped fast.
Harley G
Verified Purchase
Verified Purchase
PowerUp KA12896 Ignition Harness Blue
December 9, 2021
Always excellent service
Sam C
Verified Purchase
Verified Purchase
PowerUp KA11740 Ignition Harness Blue
October 21, 2021
Nice harness. Went in without any hitch replacing the original one.
Jim C
Verified Purchase
Verified Purchase
PowerUp KA12364 Ignition Harness Blue
June 2, 2021
Jim C
Verified Purchase
Verified Purchase
PowerUp KA12364 Ignition Harness Blue
June 2, 2021
A neat and well labelled harness that fitted perfectly. For those that are wondering, it includes cabling for both magnetos. It comes with a handy set of clamps and a generous number of cable ties.
David W
October 22, 2020
Just what I was looking for, Thank You.
Andy
September 23, 2020
Very well made.
Rick
March 6, 2020
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Part # 08-13303 (KA11780 KELLY IGNITION HARNESS BLUE):How many cables are in this set of harnesses? Two sets of 4 cables? Just one set of 4?
It is two sets of four leads to hook up both the left and right magneto.
Q: Is it possible to order just the harness for the left mag of the KA16014, which is the slick part number M6027?
Yes these can be special ordered for you. Please contact our sales department for pricing and lead time.
Q: On KA12007 Harness, is this for 2 magnetos or just 1? Thank you
This is a complete harness for both mags.
Q: Is there a difference between the red and blue harnesses other than the color?
No difference other than the color or the leads.
