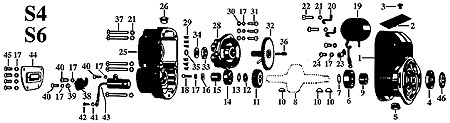

Ref No. |
Part No. | Description | Price | Buy |
---|---|---|---|---|
2 | 08-13953 | Plate - Mag Ident | $49.50 | |
4 | 07-18017 | Oil Seal | $45.50 | |
5 | 10-157134 | Vent - Mag Housing | $8.99 | |
6 | 10-81806 | Bearing - Mag, Drive End | $71.75 | |
7 | 2-161-1 | Shim Washer - .0025" | $10.50 | |
7 | 2-161-2 | Shim Washer - .004" | $14.50 | |
7 | 2-161-3 | Shim Washer - .005" | $5.35 | |
7 | 2-161-4 | Shim Washer - .008" | $5.35 | |
7 | 2-161-5 | Shim Washer - .010" | $9.70 | |
7 | 2-161-6 | Shim Washer - .012" (Drive End Bearing) | $8.65 | |
9 | 10-25788 | Bushing - Drive Shaft | $78.75 | |
10 | 10-90788-5 | Key - Woodruff | $4.85 | |
11 | 10-157123Y | Gear-Dristrib., Small (S4) | $211.95 | |
11A | 10-157120Y | Gear-Distrib., Small (S6) | $94.99 | |
12 | 10-3503 | Spacer-Brkr End Bearing | $5.75 | |
13 | 2-199-1 | Shim Washer - .002" | $6.95 | |
13 | 2-199-2 | Shim Washer - .004" | $6.50 | |
13 | 2-199-3 | Shim Washer - .005" | $5.90 | |
13 | 2-199-4 | Shim Washer - .008" | $7.50 | |
13 | 2-199-5 | Shim Washer - .010" | $5.75 | |
13 | 2-199-6 | Shim Washer - .012" (Breaker End Bearing) | $6.50 | |
14 | 2-202 | Bearing-Magnet, Brkr End | $111.75 | |
15 | 10-88543-1 | Cam - Breaker | $33.60 | |
16 | 10-51354 | Washer - Plain (Cam Screw) | $6.60 | |
18 | 10-35936-10 | Screw - Cam | $6.60 | |
20 | 10-50765 | Clamp - Coil Core | $14.90 | |
22 | 10-35937-8 | Screw - Coil Core Clamp | $5.99 | |
23 | 10-5752 | Clip - Primary Lead | $18.90 | |
26 | 10-157135 | Plug - Distributor Housing | $10.50 | |
28 | 10-52949 | Block - Distributor (S4) | $188.75 | |
28A | 10-52958 | Block - Distributor (S6) | $286.95 | |
29 | 10-50737 | Spring -H.T. Cable Contact | $3.40 | |
32 | 10-357584 | Gear-Distrib., Large (S4) | $211.95 | |
32A | 10-357586 | Gear-Distrib., Large (S6) | $323.00 | |
33 | 10-50752 | Washer - Felt | $2.19 | |
35 | 10-92815-37 | Ring-Retain. (Distrib.,Gear) | $1.74 | |
36 | 10-9595 | Brush - Carbon | $20.50 | |
37 | 10-157158 | TCM Screw | $8.50 | |
39 | 10-14268 | Washer - Plain | $5.90 | |
45 | 10-157161 | Screw - Breaker Cover | $6.65 | |
43 | 10-51676 | Condenser | $196.75 | |
46 | 10-51678 | Oil Slinger - Drive Shaft | $27.95 |
Factory new IO-550B magnetos timing plugs were loose, one even fell out and got lost, had to replace with this. Not very impressive from Continental!? But Spruce bailed us out with this proper replacement plug.
TCM Plug-Distib 10-157135
Great service proper parts
TCM Screw 10-157158
TCM Key Woodruff 10-90788-5
TCM 10-400012 Magneto I.D. Plate
TCM 10-400012 Magneto I.D. Plate
PowerUp ES10-51676K Capacitor
👌👍👌👍👌👍
TCM Oil Slinger 10-51678
This fit my Bendix D3000 D-Mag just fine, IO-360A1B6D
TCM Vent Housing 10-157134
TCM Shim Washer 2-199-6 012
TCM Shim Washer 2-199-2 004
