Slick by Champion 6300 Magneto Service Parts List
From $2.90 to $1375.00
(Hover to zoom | Use mouse wheel for +/-)
| Description | Part Number | Price | Buy |
|---|---|---|---|
| Slick M2556 Cotter Pin | 07-26958 | $11.50 | |
| Slick Nut M3019, Imp Coupling | 07-26953 | $23.50 | |
| Slick M3172 Washer | 07-26943 | $24.95 | |
| Slick Magneto Impulse Coupl Assembly | 07-26950 | $1375.00 | |
| K3179 Pressure Vent Plug | 08-00274 | $23.50 | |
| M1077 Slick Air Vent | 07-01260 | $20.80 | |
| Slick M1968 Tachometer Plug | 08-02471 | $171.80 | |
| Slick Magneto Frame M3837 | 08-00275 | $1071.00 | |
| Slick Magneto Frame M3900 | 08-00271 | $967.00 | |
| K3307 Gasket Pressure Kit | 08-00277 | $274.95 | |
| M3006 Ball Bearing | 07-26956 | $132.75 | |
| Slick Rotor M3047 | 08-00278 | $919.00 | |
| Slick M3018 Bearing Plate Clamp | 07-26954 | $7.50 | |
| Slick M3221 Screw Bearing Cap | 07-26940 | $56.75 | |
| Slick M3637 Contact Kit | 08-00273 | $294.95 | |
| Slick Coil K3975 | 08-03723 | $1216.00 | |
| Slick Magneto Screw M2555 | 07-26959 | $5.35 | |
| Slick M3125 Screw | 08-00281 | $5.99 | |
| M3180 Pressure Tube Fitting | 08-00280 | $53.75 | |
| Slick M1280 Air Vent Plug Fema | 08-01803 | $24.95 | |
| M3084 Slick Air Vent With Hood | 07-26947 | $76.75 | |
| Slick M3015 Screw | 07-26955 | $5.85 | |
| Slick Magneto Housing Dist M3902 | 07-26935 | $642.00 | |
| Slick Condenser M3183 / K3984 | 07-26942 | $453.00 | |
| Slick M2532 Washer | 07-26961 | $2.90 | |
| K3320 Bearing Kit | 08-00282 | $686.00 | |
| Slick K3302 Bearing Replace Kt | 08-01375 | $419.00 | |
| Slick Carbon Brush K3215 | 07-26941 | $43.50 | |
| Slick K3823 Block & Gear Assembly | 08-07072 | $1243.00 | |
| Slick M3021 Screw | 07-26952 | $6.60 | |
| M3826-10 Slick Magneto Spacer | 08-03826 | $11.50 | |
| Slick M917 Impulse Coupling Spring | 08-01764 | $85.75 | |
| Slick Magneto Contact Point Kit M3081 | 07-26948 | $232.95 | |
| Slick M2536 Woodruff Key Ea | 07-26960 | $12.85 | |
| Slick Oil Seal M3062 | 07-26949 | $49.50 | |
| Slick Oil Seal M3331 | 08-05241 | $52.75 | |
| Slick Magneto Rotor Gear M3827 | 07-26937 | $60.75 | |
| Slick Magneto Rotor Gear M3828 | 07-26936 | $60.75 |
Overview

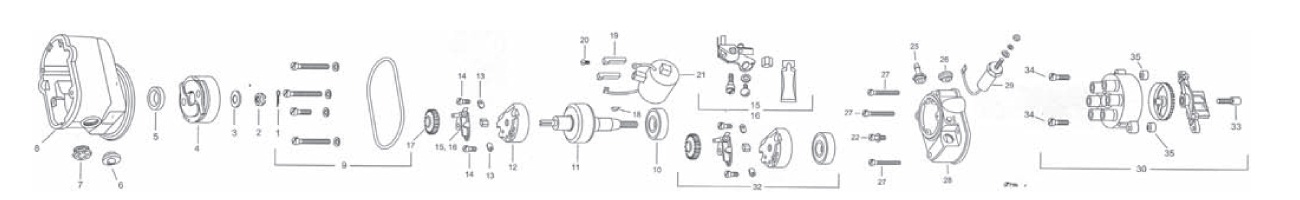

Reference Chart
Click Here To Enlarge
| Description | 6310 | 6314 | 6320 | 6324 | 6331 | 6340 | 6350 | 6351 | 6355 | 6360 |
| Cotter pin | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 |
| Nut, Impulse Coupling | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 |
| Washer, Impulse | ||||||||||
| Coupling | M3172 | M3172 | M3172 | M3172 | - | - | - | - | - | - |
| Impulse Coupling Ass. | M3050 | - | M3050 | - | - | - | - | - | - | - |
| Oil Seal | M3062 | M3062 | M3062 | M3062 | - | - | - | - | - | - |
| Pressure Vent Plug | - | - | M3179 | M3179 | M3179 | M3179 | - | - | - | M3179 |
| Air Vent | M1077 | M1077 | - | - | - | - | M1077 | M1077 | M1077 | - |
| Frame | M3837 | - | M3837 | - | - | M3900 | M3900 | - | - | M3900 |
| Gasket Pressure Kit | - | - | K3307 | K3307 | K3307 | K3307 | - | - | - | K3307 |
| Ball Bearing | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 |
| Rotor | M3047 | - | M3047 | - | - | - | - | - | - | - |
| Bearing Cap Assembly | - | - | - | - | - | - | - | - | - | - |
| Bearing Cap Clamp | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 |
| Screw | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 |
| Contact Pt. Kit-Primary | M3081 | M3081 | M3081 | M3081 | M3081 | M3081 | M3081 | M3081 | M3081 | M3081 |
| Contact Pt. Kit-Second. | - | - | - | - | - | - | - | - | - | - |
| Rotor Gear | M3828 | M3828 | M3828 | M3828 | M3828 | M3828 | M3828 | M3828 | M3828 | M3828 |
| Woodruff Key | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 |
| Coil Wedge | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 |
| Screw | - | - | - | - | - | - | - | - | - | - |
| Coil** (see below) | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 |
| Screw | M2555 | M2555 | - | - | - | - | M2555 | M2555 | M2555 | - |
| Adapter | - | - | - | - | - | - | - | - | - | - |
| Screw | - | - | - | - | - | - | - | - | - | - |
| Pressure Tube Fitting | - | - | M3180 | M3180 | M1280 | M1280 | - | - | - | M1280 |
| Air Vent with Hood | M3084 | M3084 | - | - | - | - | M3084 | M3084 | M3084 | - |
| Screw | M3015 | M3015 | - | - | - | - | M3015 | M3015 | M3015 | - |
| Housing, Distributor | M3902 | M3902 | M3902 | M3902 | M3902 | M3902 | M3902 | M3902 | M3902 | M3902 |
| Condenser | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 |
| Distributor Block & | ||||||||||
| Gear Assembly | K3823 | K3823 | K3823 | K3823 | K3823 | K3823 | K3823 | K3823 | K3823 | K3823 |
| Washer | M2532 | M2532 | - | - | - | - | M2532 | M2532 | M2532 | - |
| Bearing Kit | K3320 | K3320 | K3320 | K3320 | K3319 | K3319 | K3319 | K3319 | K3319 | K3319 |
| Carbon Brush | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 |
| Screw | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 |
| Spacer | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 |
| Description | 6361 | 6362 | 6363 | 6364 | 6365 | 6367 | 6371 | 6380 | 6382 | 6390 |
| Cotter pin | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 |
| Nut, Impulse Coupling | M3019 | M3019 | M3019 | M3019 | M3492 | M3019 | M3492 | M3019 | M3019 | M3019 |
| Washer, Impulse | ||||||||||
| Coupling | - | - | M3172 | - | - | - | - | - | M3172 | M3172 |
| Impulse Coupling Ass. | - | M3050 | - | - | - | - | - | M3050 | M3050 | - |
| Oil Seal | - | M3062 | - | M3062 | - | M3062 | - | M3062 | M3062 | - |
| Pressure Vent Plug | M3179 | - | M3179 | - | M3179 | - | - | - | - | - |
| Air Vent | - | M1077 | - | M1077 | - | M1077 | M1077 | M1968 | M1968 | M1077 |
| Frame | - | M3837 | M3900 | - | M3900 | - | M3900 | - | - | M3900 |
| Gasket Pressure Kit | K3307 | - | K3307 | - | K3307 | - | - | - | - | - |
| Ball Bearing | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 |
| Rotor | - | M3047 | - | - | - | - | - | M3047 | M3047 | - |
| Bearing Cap Assembly | - | - | - | - | - | - | - | - | - | - |
| Bearing Cap Clamp | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 |
| Screw | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 |
| Contact Pt. Kit-Primary | M3081 | M3081 | M3637 | M3081 | M3637 | M3081 | M3637 | M3081 | M3081 | M3637 |
| Contact Pt. Kit-Second. | - | - | M3637 | - | M3637 | - | M3637 | - | - | - |
| Rotor Gear | M3828 | M3828 | M3828 | M3828 | M3828 | M3828 | M3828 | M3828 | M3828 | M3828 |
| Woodruff Key | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 |
| Coil Wedge | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 |
| Screw | - | - | - | - | - | - | - | - | - | - |
| Coil** (see below) | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 |
| Screw | - | M2555 | - | M2555 | - | M2555 | M2555 | M2555 | M2555 | M2555 |
| Adapter | - | - | M3154 | - | - | - | - | - | - | M3154 |
| Screw | - | M3125 | - | - | - | - | - | - | M3125 | - |
| Pressure Tube Fitting | M1280 | - | M1280 | - | M1280 | - | - | - | - | - |
| Air Vent with Hood | - | M3084 | - | M3084 | - | M3084 | M3084 | M3084 | M3084 | M3084 |
| Screw | - | M3015 | - | M3015 | - | M3015 | M3015 | M3015 | M3015 | M3015 |
| Housing, Distributor | M3902 | M3902 | - | M3902 | - | M3902 | - | M3902 | M3902 | - |
| Condenser | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 |
| Distributor Block & | ||||||||||
| Gear Assembly | K3823 | K3823 | K3823 | K3823 | K3823 | K3823 | K3823 | K3823 | K3823 | K3823 |
| Washer | - | M2532 | - | M2532 | - | M2532 | M2532 | M2532 | M2532 | M2532 |
| Bearing Kit | K3319 | K3320 | K3302 | K3320 | K3302 | K3320 | K3302 | K3320 | K3320 | K3302 |
| Carbon Brush | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 |
| Screw | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 |
| Spacer | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 |
Reviews
Victor B
Verified Purchase
Verified Purchase
Slick Carbon Brush K3215
June 18, 2024
Victor B
Verified Purchase
Verified Purchase
Slick Magneto Contact Point Kit M3081
June 18, 2024
worked!!
Mike K
Verified Purchase
Verified Purchase
Slick Magneto Impulse Coupl Assembly
March 28, 2024
Product was as expected. Turned out I didn’t need these. Aircraft Spruce was very easy to work with on the return thanks
Michael R
Verified Purchase
Verified Purchase
Slick Condenser M3183 / K3984
February 12, 2024
As expected
Michael R
Verified Purchase
Verified Purchase
Slick Magneto Contact Point Kit M3081
February 12, 2024
Part ordered is still en-route to me in New Zealand. (last noted departing Japan)
Phillip K
December 24, 2020
Received promptly. Installation pending.
Don K
July 14, 2020
Easy to get, and it is just what it said it was. Does the job fast and fine. Paul C
Paul C
January 3, 2020
Protected packaging outstanding.
Clarence A
September 8, 2019
Champion products for Slick magnetos is a good quality product. Over the past several years the prices for individual parts has increased dramatically. I will continue to purchase parts from Champion however I will also use Kelly Aerospace on occasion.
Tim W
February 19, 2017
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: What is included in the Slick magneto contact point kit M3081?
It comes with the points, attaching hardware, and a small tube of grease.
Q: Which is assembly item #30 on the reference chart. What is the part number?
K3823 Distributor Block and Gear Assembly our part number 08-07072.
