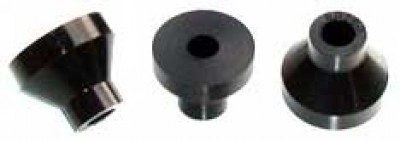

Urethane Cone Style Engine Mount Bushings
Overview
|
These engine mount bushings are made of a special urethane formula which outlasts most other mounts. They have been in use on smaller 4 cylinder Lycoming engines from the 0-235 series to the GO-480 series for years, and are now available to the experimental aircraft market. *SOLD INDIVIDUALLY* |
Application
- These cone type mounts are applicable to the following engine models:
O-235-C1, -C1B, -C2A, -C2C, -F, -F1B, -G2A
O-290-D, -D2, -D2B, -D2C
O-340-A, O-340-B
O-320-A2A, -A2B, -A2C, -A3A, -A3B, -A3C, -B2A, -B3A, -B3B, -B3C, -E1A, -E2A
IO-320-E2A
O-435-A, -A2
GO-480-B, -B1A6, -B1B, -B1C, -B1D, -C1B6, -D1A, -F6, -F1A6, -F2A6, -F4A6, -G1A6, -G1D6, -G2D6, -G2F6, -G1H6, -G1J6.
Specifications
- ID: .500"
- OD: .85"
Reviews
I agree with the other guys. Too hard, too long, too skinny. Messed with these almost a day before I got the superiors and it was done.
Verified Purchase
Lycoming Style Cone Engine Mount Exp
fast shipping
Verified Purchase
Lycoming Style Cone Engine Mount Exp
Great Product but does not fit on Lycoming O-290-D2 series engine. I used PN: 60883 for my 5-point (on firewall) mount.
Face it, urethane is a much better material for these mounts! But be careful in ordering - I have the O-235-C (with no suffix!), and these dont fit. The neck coming off the small end of the cone is found on later O-235s, but not my ol reliable. Replacing the ones that had been on the engine for 18 months - it was fun to see the deformation in the old mount. Makes me wonder if I will have to worry about the new mounts and the spinner rubbing the cowling.... Pretty clearly I should have replaced the conical mounts on about a 5 year interval.
will yse them on my o-290 as Ive got them on my o-235 they go on nice
Exactly what I ordered but not what I wanted. I should have read the reviews. It seems like it is designed to squeeze into place and form to the mount tab. If not, it absolutely does not fit as other reviews illustrate. The manufacturer should explain their product better to save trouble.
Verified Purchase
Lycoming Style Cone Engine Mount Exp
Pure trash. Lasted 10 hours literally on my j3.
Do not buy, it does not fit the advertised list of engines. These are smaller diameter and about an inch longer than Lycoming conical mount rubber bushings.
Verified Purchase
Lycoming Style Cone Engine Mount Exp
Didn’t fit my O-235-C2C. Needed part number 71032 instead.
They dont fit like stock ones, I have 0-320 A2B. They are too long and the cone is smaller on the small diameter of cone. Not sure how they are suppose to work but I cant use them and I needed them today to mount my engine....
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Approximate dims: 1.625" Diameter of Larger End, .84" Diameter of Smaller End, .50" ID, 1.325" Length
