Aerospace Logic Single Tank Fuel Level Indicator
From $926.00 to $1246.00
Overview
|

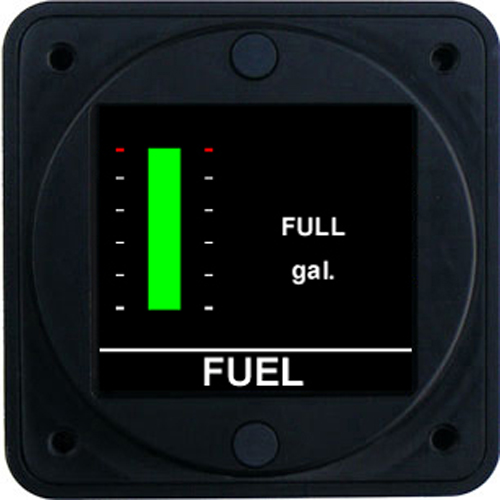

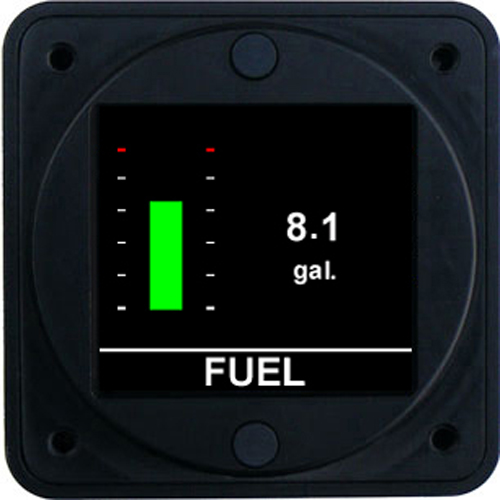

Aerospace Logic AOG Expedite Available, additional charges will apply. Single Tank Fuel Level Instrument Instruments are advanced, next generation airborne fuel level reporting instruments that support two fuel tanks. Fuel level functionality is TSO'd and meets the repeatable accuracy requirements of SAE AS405C, +/- 1US Gallon. Functional displays include: Graphical indication of fuel level in the tank Digital fuel quantity for the tank Fully programmable color indication to meet all aircraft marking requirements Graphical fuel level indication, starting at power on These instruments are TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR). It is a requirement of the STC that this be the only fuel level indicator, when installed. These instruments utilize the existing fuel senders. *FL201D Instrument for CIES Sender Version Only* |
Features
- Certification / Compliance:
TSO C44bCanadian STCFAA STCCertified as primary replacement
- SoftwareDO-178B
- DC Power Source
Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV
- Operating Temperature
Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC
- Signal Input
Resistive: 0.25 Ohm to 300 Ohm
- Sender Orientation
User selectable, proportional or inversely proportional to fuel quantity
- Accuracy
AS405C +/- 1 USG
- Display Units
US Gallons per hour or Litres per hour, user selectable
- Range0 to 120 USG (defined by fuel sender/tank size)
- Display
Sunlight readable LCD176 X 192 display pixels65,535 colors
- Annunciator Output
100mA sink with reverse EMF protection
- RS-232 Data
Output 1 second per full sequence at 57.6K bps (8/N/2/N)
- Interface Connector
DB-25
- Software Functionality
Primary Display: Fuel level in the tank

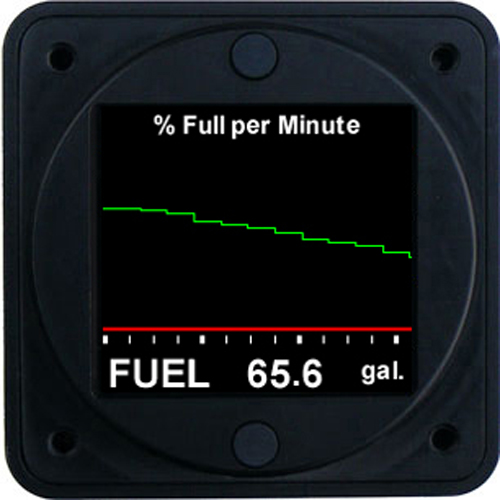

Trend Graph: Graphic display of level vs time
Specifications
- Dimensions: 2.45” X 2.45” X 0.96”
- Weight (excluding harness): 4.05 oz
- Finish: Black anodized 6061 aluminum
