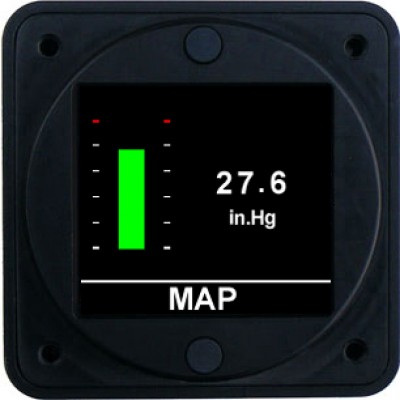

Aerospace Logic Single Manifold Pressure Kit
MFR Model# MP200K
Overview
|
Aerospace Logic AOG Expedite Available, additional charges will apply. MP200K Single Manifold Pressure Kit The MP200 is an advanced, next generation single manifold pressure instrument. Manifold pressure functionality is TSO'd and meets the pressure accuracy requirements of SAE AS8042. Functional displays include: Real-Time analog data depiction and digital value display of manifold pressure Graphical trend display of manifold pressure data The MP200K is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR). This kit includes a A200-PMP manifold pressure sensor and all installation hardware |
Features
- Certification / Compliance:
TSO C44bCanadian STCFAA STCCertified as primary replacement
- SoftwareDO-178B
- DC Power Source
Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV
- Operating Temperature
Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC
- Signal Input
Pressure 0.5V to 3.0V
Fuel Flow: 5V pulse width modulated
- Display Units
Manifold Pressure: 0.0 inHg to 50.0 inHg
Fuel Flow: 0.6 to 30gph
Fuel Used: 0.6 to 999.9 gallons
- Accuracy
Manifold Pressure: AS8042 +/- 0.1inHg
Fuel Flow: +/- 0.1gph
- Display
Sunlight readable LCD176 X 192 display pixels65,535 colors
- Annunciator Output
100mA sink with reverse EMF protection
- RS-232 Data
Output 1 second per full sequence at 57.6K bps (8/N/2/N)
- Interface Connector
DB-25
- Software Functionality
Primary Display: Fuel level in the tank
Trend Graph: Graphic display of level vs time
Specifications
- Dimensions: 2.45” X 2.45” X 0.96”
- Weight (excluding harness): 4.05 oz
- Finish: Black anodized 6061 aluminum
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

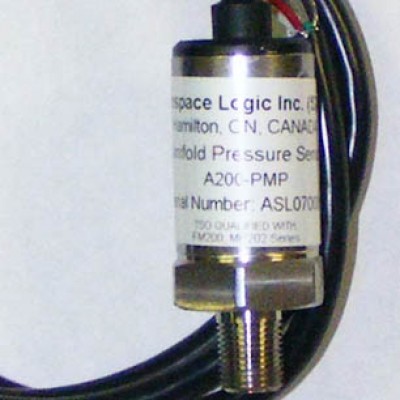

The MP200K comes with a digital pressure sending unit. The sending unit has a 1/8 NTP port for attachment.
