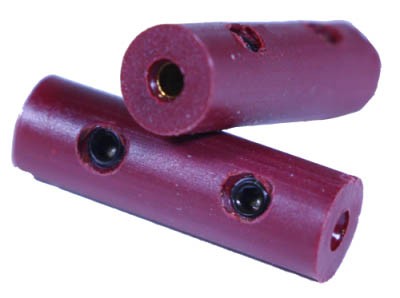

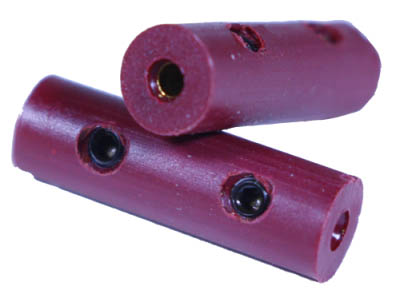

Electronics International Wire Overlap Connector / Splice OLC-2

$2.35/Piece
Quantity
Add to Wishlist
Part# 10-05470
MFR Model# OLC-2

Overview

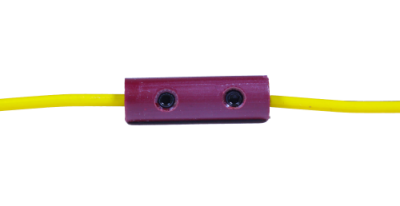

The OLC-2 eliminates the needs for soldering, crimps, and expensive connectors, all while creating a perfect connection between two wires. The two wires are stripped 3/8” and then slid into opposing ends of the OLC-2, where they overlap each other. A set screw on the side of the OLC-2 is gently tightened, and presses into the overlapping wires, creating a cold solder joint where the two wires meet. The OLC-2 can also be used to create perfect connections with Thermocouple wire, which means no more bulky TC connections.

Wire Compatibility: Minimum Gauge - 24awg, Maximum Gauge - 16awg

E.I. products include all documentation and certifications
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Better than spade connectors. No instructions though...need to look on line.

M.s. D Verified Purchase

Electronics International Overlap Connector Olc-2

September 3, 2024

Absolutely love these connectors, use them all the time.

Dixon A Verified Purchase

Electronics International Overlap Connector Olc-2

March 20, 2024

These work great, but theyre not overlap connectors. The OLC-1 , with a single set-screw, is an overlap connector. The OLC-2 is made for mostly single-strand thermocouple wire and the wires dont need to touch inside the connector, hence the 2 set-screws.

Jerry K
February 8, 2024

You either use these or youre wrong

Garrett S Verified Purchase

Electronics International Overlap Connector Olc-2

May 21, 2023

Magaero L Verified Purchase

Electronics International Overlap Connector Olc-2

February 16, 2023

The best type K thermocouple wire connector out there. Simple, streamline, fast and secure. Way better to use this than the JPI ring connector method.

Lewis M Verified Purchase

Electronics International Overlap Connector Olc-2

January 10, 2023

No problem.

Kenneth L Verified Purchase

Electronics International Overlap Connector Olc-2

August 3, 2022

Quality product, however an Allen wrench should be included.

Aerotecnica Verified Purchase

Electronics International Overlap Connector Olc-2

May 25, 2022

Great product… solved long term intermittent electrical problem… Neat clean connect to thermal coupler

Larry P Verified Purchase

Electronics International Overlap Connector Olc-2

September 7, 2021

The product was delivered with a small delay, but every single spare arrived

Muisca A Verified Purchase

Electronics International Overlap Connector Olc-2

June 26, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of the EI OLC-1 overlap connectors?

Dimensions: .47" long, .25" diameter.

Q: What is the weight of the EI Overlap connector OLC-1?

These weigh approx .0035 lb each.

Q: What gauge wire will these connectors (OLC-1) accept?

Per E.I. - Minimum Gauge - 24awg, Maximum Gauge - 16awg

Q: What is the set screw type and size?

Per E.I.: This is an allen head set screw, 4-40 threads, and approx 1/8" long. The hex wrench for this set screw is .050 allen key.

Q: How many connectors in the pack, one or two?

These are priced and sold individually. 1 comes with qty 1.

Q: What is the inside diameter?

1/16 or .063
