Mitchell Instrument Clusters (Block Style)

From $210.95 to $218.95
Total Gauge Capacity Configuration Part No. Price Buy
6 Gauges3 Wide 2 High
10-01708
$210.95
Quantity
8 Gauges4 Wide 2 High
10-01709
$218.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

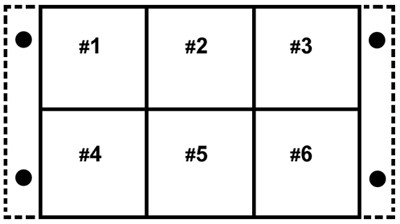

Available in 6 gauge (pictured above) or 8 gauge clusters. On 8 gauge clusters, two additional gauges are added to the right side of the one pictured. Specify gauge and position desired for all cluster gauge positions. Prices are for the backplane (panel) only. Add price of each gauge for total cluster price.

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of the 3 wide 2 high cluster gauge box?

The gauge mount holds six gauges which are each 1.5 inches square so the opening for the gauges should be 3.05 wide by 4.55 high. The frame has a mounting lip that is one half inch wide around the entire face of the mount.
