Mitchell Instrument Clusters (Horizontal Style)

From $130.75 to $205.95
Total Gauge Capacity Configuration Part No. Price Buy
2 Gauges2 Wide 1 High
10-02739
$130.75
Quantity
4 Gauges2 Wide 2 High
10-04020
$163.75
Quantity
4 Gauges4 Wide 1 High
10-01710
$166.85
Quantity
5 Gauges5 Wide 1 High
10-01711
$162.75
Quantity
6 Gauges6 Wide 1 High
10-01712
$205.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

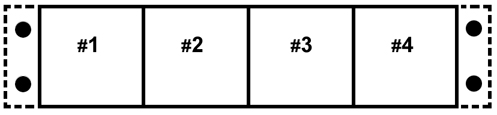

Available in 2 gauge, 4 gauge (pictured), 5 gauge, or 6 gauge clusters. On 5 gauge and 6 gauge clusters, additional gauges are added to right side of the one pictured. Specify gauge and position desired for all cluster gauge positions. Prices are for the backplane (panel) only. Add price of each gauge for total cluster price.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

If you already have Mitchel modular gauges, a few years old, the new frame will not support the old gauges due to a change in the plug design. I was changing the configuration in my airplane after receiving the new frame, my old gauges would not fit. I had to send the gauges back to Mitchell to have the old plugs replaced with the new style (for a fee).

Ronnie M
December 4, 2023
