| Model | Description | Part Number | Price | Buy |
|---|---|---|---|---|

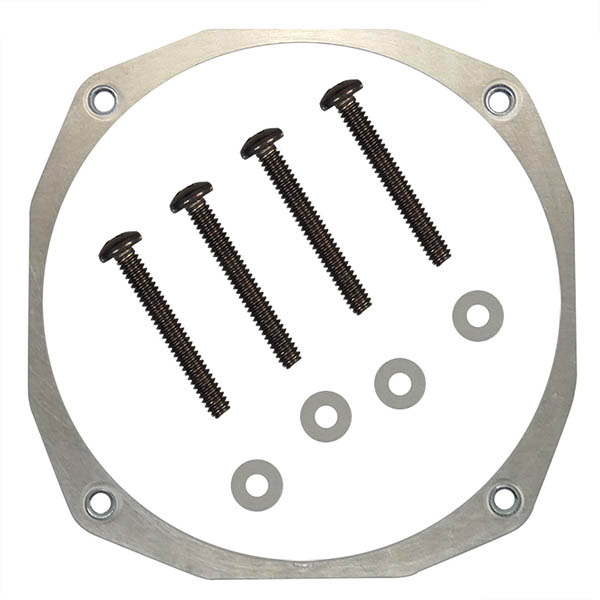

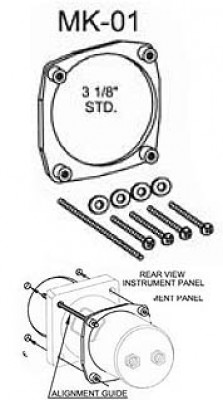

| MK-01 | 3-1/8” Standard | 10-00335 | $25.50 | |

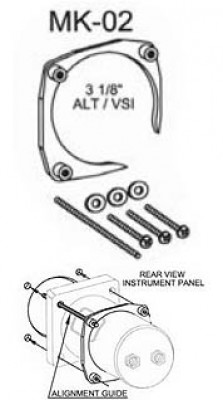

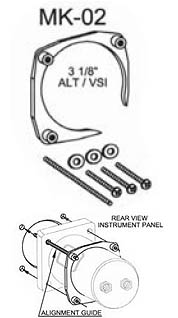

| MK-02 | 3-1/8” ALT/VSI | 10-00336 | $25.50 | |

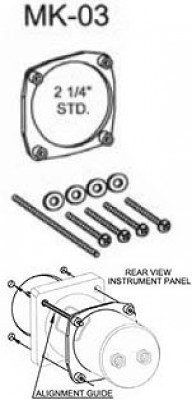

| MK-03 | 2-1/4" Standard (Designed for TSO’d gauges, may not fit non-TSO | 10-00337 | $25.50 | |
| MKNR-05 | Pan Head Screws (12 Pack) | 10-00338 | $20.50 | |
| MKNR-06 | Countersunk Screws (12 Pack) | 10-00339 | $23.50 | |
| AP-01 | Alignment Mounting Pin | 10-03696 | $2.95 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
Precision machined nut ring instrument mounting kit. Designed to slide on from the back side of the instrument using the alignment guide pin inserted trough a screw hole. Pulling on the alignment pin from the front side of the panel allows you to hold the instrument in correct alignment in the panel. Specially designed self-locking pan head black brass mounting screws and nylon washers are the easily installed from the front. Countersunk self-locking black brass scrws are also available. Nut rings can be installed without removing hoses, tubing, or electrical connections. Designed to raplace "grasshopper nuts"!
|
Reviews
Makes nut ring installation simple
Verified Purchase
Mk Alignment Mounting Pin
Worked just fine but make sure to get mounting pin for simple installation
Verified Purchase
Mk-01 Instrument Nut Ring
Great aide for installing the nut ring
Verified Purchase
Mk Alignment Mounting Pin
Worked perfectly make sure you buy the alignment pin too
Verified Purchase
Mk-01 Instrument Nut Ring
Good product !
Verified Purchase
100 Deg Cntrsnk Self Lock 12Pk
Mounting bracket is very nicely made. As mentioned in previous reviews it did need just a bit of trimming for a flush fit on the altimeter but that’s easily accomplished and took maybe two minutes to mark and cut. Once done, it went together easier than had I used instrument nuts. Nicely packaged. Everything needed is included. Only suggestion to the manufacturers would be to anodize it but not a big deal, just my personal preference
Verified Purchase
Mk-02 Instrument Nut Ring
Perfect for my purpose.
Super easy, perfect fit. A great solution.
Awesome product. There is no way I could have installed my new airspeed indicator in my Ercoupe’s panel without this, there is hardly any room and this plate worked perfectly. Before installing I put a piece of double sided tape in between the insturment and the mount to help hold it in place. Would definitely recommend
Absolutely perfect for my RV9. Purchased with my 2.25 gauges. Installation is a snap. Caution: Some of my gauges were slightly larger than ring ID. No problem - just sanded out a little.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes. They come with 4 6-32 1 1/4" long brass screws in the package.
