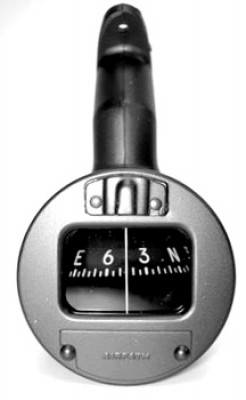

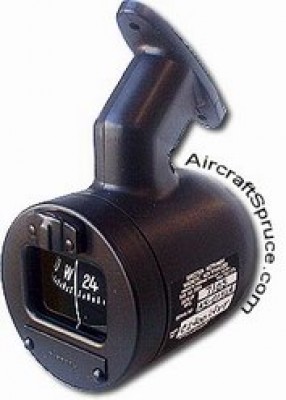

Airpath Overhead Compass C2400-L4Vt (TSOd)

Select Hemisphere:
Northern HemisphereSouthern Hemisphere
Quantity
Add to Wishlist

Overview

Standard Magnetic Compensator
Markings: Black & White
Leads: 1Ft. White Wire
Lighting: Red 12VDC
Finish: Black

Factory new Airpath compass as used in almost all production aircraft. 2-1/4".

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

very good

Smiles C Verified Purchase

Airpath C2400 L4Vt Overhead Compass Lit 12V North Hem TSO

March 15, 2024

All good: Just what I needed. Arrived promptly.

Michael P Verified Purchase

Airpath C2400 L4Vt Overhead Compass Lit 12V North Hem TSO

November 7, 2023

Bradley G Verified Purchase

Airpath C2400 L4Vt Overhead Compass Lit 12V North Hem TSO

February 22, 2022

Thanks for compass

Helge R Verified Purchase

Airpath C2400 L4Vt Overhead Compass Lit 12V North Hem TSO

January 14, 2022

This arrived well packaged with no issues. This was a replacement for an old worn out original compass. Thanks again AircraftSpruce.

Derek E
October 16, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the mounting hole spacing on this model?

Center hole to center hole is 2 inches.

Q: can you provide the angle of the mount?

The mount for part number 10-01345 and 10-01346 is set at a 41 degree angle.

Q: Is the Airpath overhead compass C2400-L4VT a maintenance free compass, is it liquid filled? I don't want a compass that needs to be resealed every 2 years because of evaporation / seal leaks.

Yes, the Airpath compass is liquid filled. We are not aware of any maintenance free compasses.

Q: Do you sell a mounting adapter so that I can mount this C2400-L4VT overhead compass in my Piper Warrior? In the Warrrior its mounting on the Windshield center post using a U channel mount.

There are no mounting adapters available for the C2400-L4VT overhead compass.

Q: Can you tie this into a 24V system if you replace the 12V lightbulb with a 24V light bulb?

Per Vendor: "Yes, they can change the bulb to 24V as long as their system supports 24V lighting."
