Alpha Systems AOA Doubler Mounting Plate

$1053.00/Each
Quantity
Add to Wishlist
Part# 11-20657
MFR Model# DSTR-AOA-4200K

Overview

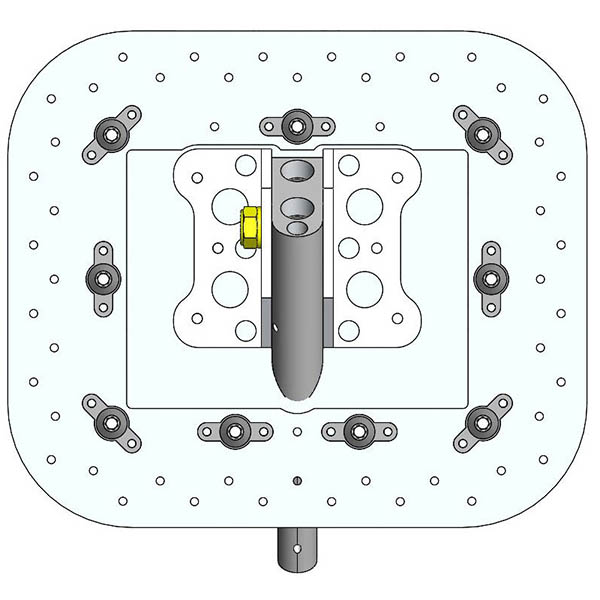

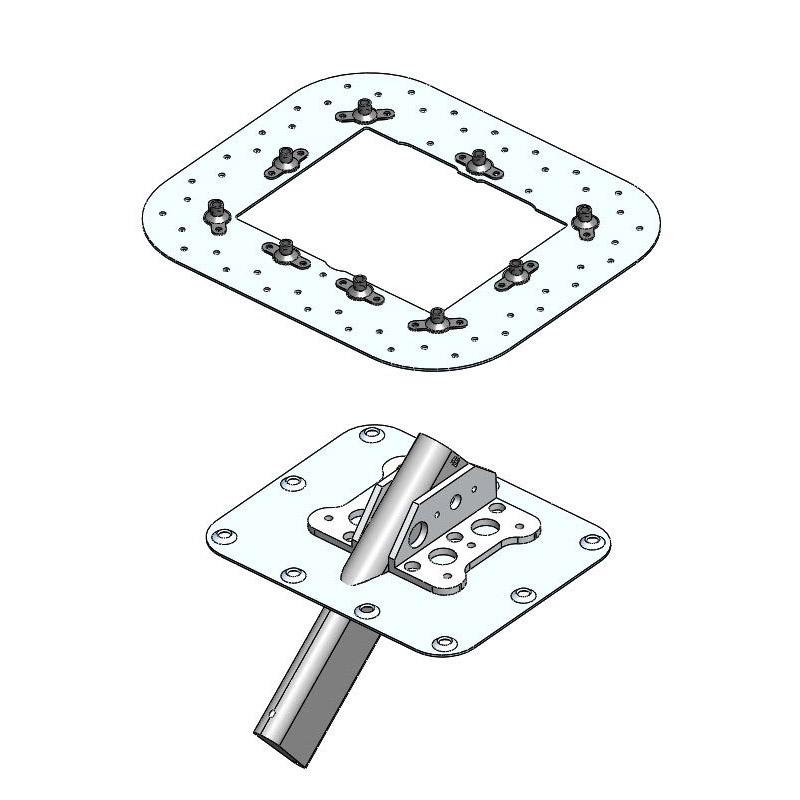

Doubler 5-1/4" x 4-1/4" Custom AoA Probe Mounting Plate used by installers for TBM aircraft or other aircraft that do not have an inspection cover.
  • Easy 3 step process.
  • Allows simple location, drilling, and accurate placement.
  • Minimizes installation time.
  • Designed to allow solid mounting in a location when NO inspection cover or suitable mounting option exists.

Specifications

  • Complete Kit Weight: Approximately .445 LBs / 7.1 oz
  • Doubler Plate Size: 7" x 6"
  • AOA Probe Mounting Plate Size: 5-1/4” x 4-1/4”

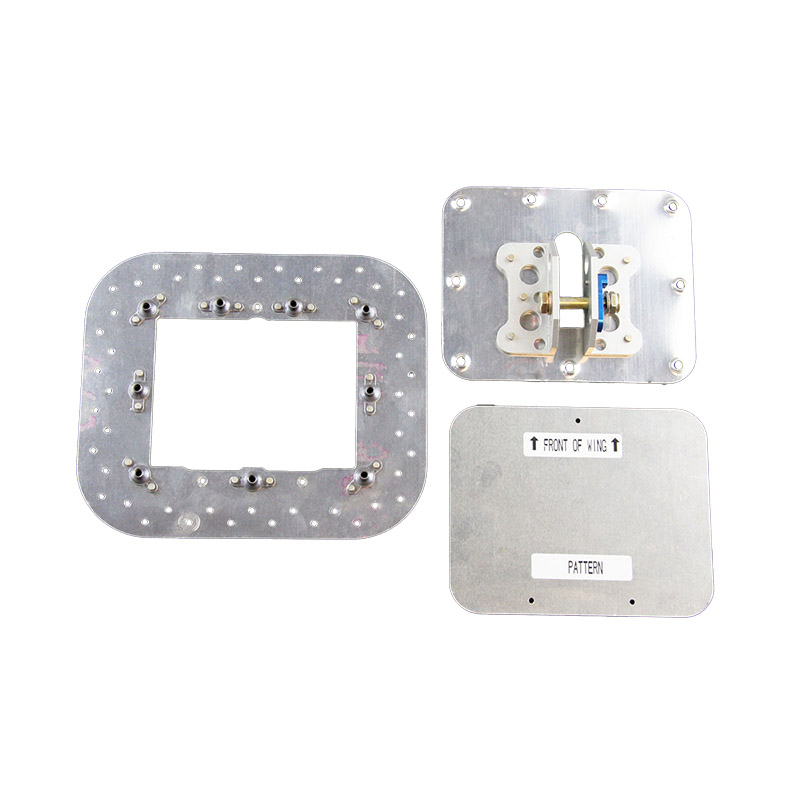

In The Box

  • AOA Probe Mounting Template (AOA-4203)
  • Doubler Plate (AOA-4202)
  • AOA Probe Mounting Plate (AOA-4201)
  • Bolt
  • Stop Nut
  • Blue Pneumatic Hose 36ft
  • White Pneumatic Hose 36ft
  • 2 Washers: 1/4" Steel
  • Blue Probe Locking Retainer
  • 9 Screws: 8-32 Flathead x 15/32
  • Installation Instructions
