- Photo may represent series and not specific product
- SHARE
| Description | PN | Price | Buy |
|---|---|---|---|

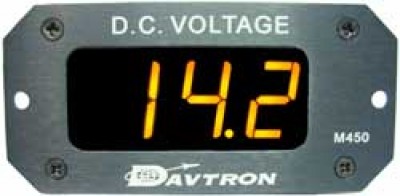

| MODEL 450 VOLTMETER AMBER LED | 10-24505 | $239.95 | |
| MODEL 450A VOLTMETER AMBER LED WITH REMOTE SENSING | 10-04555 | $275.95 | |
| MODEL 450-GRN VOLTMETER GREEN LED | 10-04553 | $247.95 | |
| MODEL 450A-GRN VOLTMETER GREEN LED WITH REMOTE SENSING | 10-04556 | $285.95 | |
| MODEL 450-WHT VOLTMETER WHITE LED | 10-04554 | $246.95 | |
| MODEL 450A-WHT VOLTMETER WHITE LED WITH REMOTE SENSING | 10-04557 | $285.95 |
Overview
Davtron M450 Features:
Download M450 Brochure Davtron FAA PMA # PQ1062NM |
Installation
- Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval.
- FAA/PMA Approval
- Beech 35, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, 35-33, 35-33A, with STC SA4381WP or SA4193 installed
- Download FAA 337 Form
Specifications
- Range: 8 volts to 32 volts
- Input current: 150 M.A.
- Resolution: .1 volt
- Weight: 3 oz.
- Complete w/cable & connector
- Operating temp: -20°C to +60°C
- Accuracy: ±1% of full scale
- Warranty: one year
- Unit default alarm set to flash 11v or below
- R3 & R4 located on back board
- Alarm off/1.5 ohm resistor on R3
- Alarm 20v or less/1.5 ohm resistor
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Is the Davtron voltmeter model 450 FAA/PMA approved?
Yes, PMA# PQ1062NM approved.
