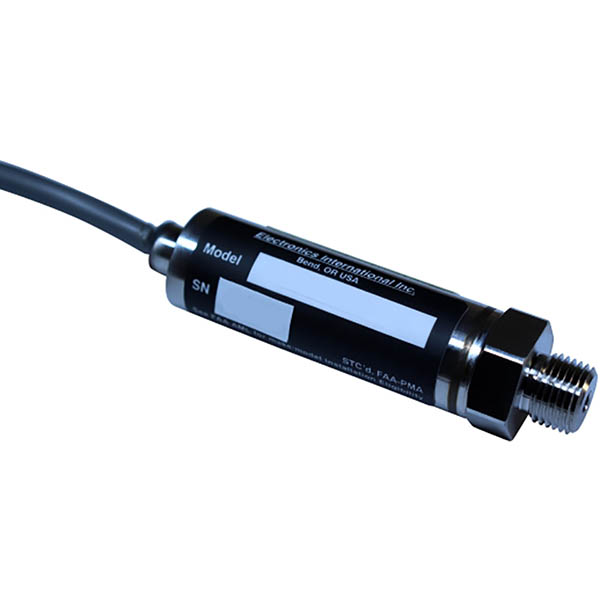

EI PT-100GA-T Pressure Transducer

$532.00/Each
Quantity
Add to Wishlist
Part# 10-07383
MFR Model# PT-100GA-T

Overview

EI PT-100GA-T Pressure Transducer
Model Comparison
Model PT-30GA PT-100GA PT-100GA-T Torque PT-300GA PT-3000S
Working Pressure 0-35 PSI 0-115 PSI 0-115 PSI 0-345 PSI 0-3,450 PSI
Over Pressure 60 PSI 200 PSI 200 PSI 600 PSI 6000 PSI
Burst Pressure 120 PSI 400 PSI 400 PSI 1,200 PSI 12,000 PSI
Pressure Type Gauge Gauge Gauge Gauge Sealed

Features

  • FAA TSO’d, STC’d, PMA’d
  • Accurate and stable, precise pressure measurements.
  • Robust Construction, stainless steel body and pressure ports.
  • Perfected over decades of testing and field trials.
  • Stainless Steel
  • Pressure Range: 0 – 115 PSI

Specifications

  • Type: Gauge Pressure
  • Working Pressure: 0-115 PSI
  • Over Pressure: 200 PSI
  • Burst Pressure: 400 PSI
  • Accuracy: +/- 1%
  • Output: Ratiometric to P.S. (10 mV/V)
  • Material: 316L SS
  • Power Supply: 5-14 Vdc
  • Certifications: FAA TSO’d, STC’d, PMA’d

Documents

In The Box

  • PT-100GA-T Pressure Transducer
  • OLC-1 Connectors (4)
  • Installation Instructions
