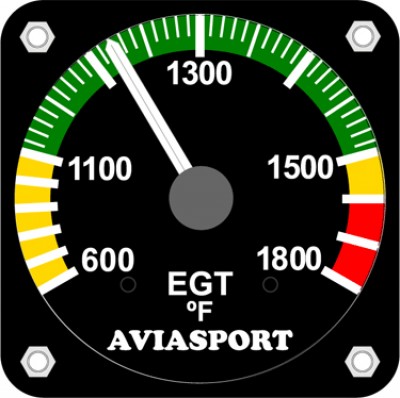

AvIasport Rotax 912 EGT Gauge Fahrenheit - 2 1/4 Inch

$171.85/Each
Quantity
Add to Wishlist
Part# 15-08557
MFR Model# IM-781

Overview

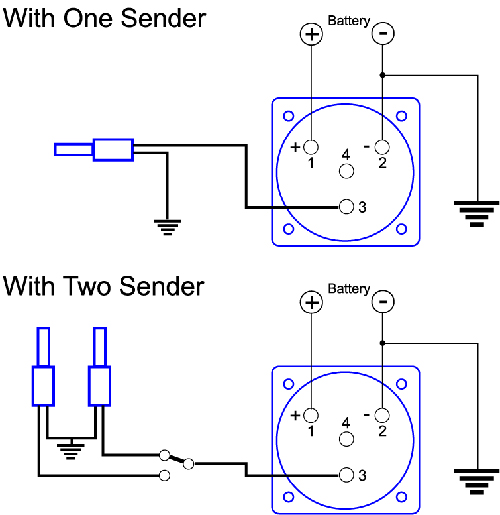

The IM-781 instruments have been designed especially to measure the EGT in Rotax® engines 912. The IM-781 is available in 2 1/4" (57 mm) diameter. With a optional switch, you can measure the Temperature of two EGT. The instruments use a pointer thats turns 240º, witch gives them great resolution. Their display areas are divided into red, green and yellow zones in line with the ROTAX limits.

Thanks to embedded operational amplifiers, this instrument has a high accuracy, but needs a power supply of 12V or 24V.

Specifications

  • Case: Plastic
  • Weight: 200g
  • Suitable for: Rotax 912 With Type "K" sender
  • Power Supply: 10-30VDC
  • Power Current: 0.1 Amp. Max.
  • Scale: 600-1800 ºC
  • Subdivision scale: 10ºC
  • Max. Deviation: 1%
  • Dimensions: 2 1/4" (57 mm) diameter
  • Calibration: Calibrated by the manufacturer prior to shipment.

Reference Chart
