Mechanical Fuel Gauge

$172.75/Each
Quantity
Add to Wishlist
Part# 05-16700
MFR Model# 7083-00011

Overview

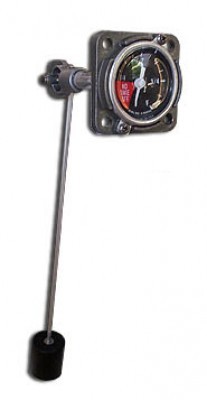

Lever-action gauge measures fuel level from full to empty on fractional dial. Matte-white markings on 2" black dial with red "No Take-off" sector below the 1/4 full mark. Cork float has 4" travel. Wire arm 12" long may be cut off to required length, wire bent to 90° angle to secure cork float. 1-13/16" between mounting hole centers. Hermetically sealed dial assembly has magnetically driven, silicone-damped or position pointer to prevent flutter.

Click here to download the specifications in PDF format.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Excellent gauge, very well made. Installed in my newly constructed RV3 fuselage tank.

James M Verified Purchase

Rochester Mechanical Fuel Gaug

February 12, 2023

Nicely made unit. Float travel is more like 24 inches than the stated 4 inches. The float can be moved to reduce the required travel. 4 inches is more like the minimum travel it can be adjusted to.

Dan F
July 12, 2018

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this fuel gauge 05-16700 come with the gasket to install it?

Yes, a 15-4 Buna N gasket is included.

Q: Is the float, part #05-03395, made of cork or neoprene?

The material this part is made of is nitrile rubber.

Q: Is the weld flange adapter (ACS part #10361) that fits this gauge steel or aluminum?

The weld flange adapter is 6061-T6 aluminum.

Q: Does it have the 4 mounting screws. Mine were totally rusted in and had to be destroyed taking it out.

No, this does not come with the hardware.

Q: Does it have the 4 mounting screws? Mine were totally rusted in and had to be destroyed taking it out.

The screws are included.

Q: Does this require a flange welded in to the tank or can it simply be bolted in?

We believe you would need to use the weld flange adapter, part number 10361.
