Rapco Vacuum System Kits

Select Version:
216CW Kit215CC-9 KitAccessories Only (No Pump)
Quantity
Add to Wishlist

Overview

This Vacuum System Kit is ideal for use on experimental aircraft, allowing the kit builder to obtain all of the necessary components of their vacuum system in one convenient kit. The price of this kit reflects a substantial discount over the individual prices of the components if purchased separately.

RAP215CC VACUUM PUMP
For engines with COUNTER CLOCKWISE turning accessory drives on a standard AND20000 mounting pad. Lycoming O-235, O-290, O-320, O-360, IO-360, O-540, IO-540, Rotax 912, 914

RAP216CW VACUUM PUMP
For engines with CLOCKWISE turning accessory drives on a standard AND20000 mounting pad.Continental IO-240, IO-470, IO-520 Jabiru 2200, 2300

RAP215CC-9 VACUUM PUMP
For engines with COUNTER CLOCKWISE turning accessory drives on a standard AND20000 vertical mounting pad. Continental O-200

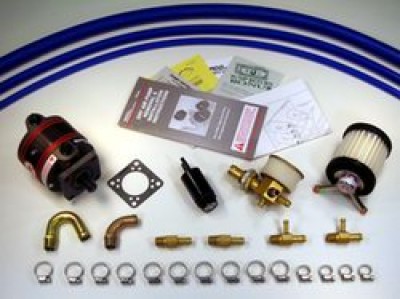

In The Box

  • 1 Vacuum Pump w/Gasket
  • 1 RA2H3-12 Vac. Regulator w/Garter Filter
  • 1 RA-D9-18-1 Filter Assembly
  • 1 Suction Gauge
  • 1 RA1K1-6-10 90° 5/8" Fitting
  • 1 RA1K8-6-10 152° 5/8" Fitting
  • 2 RA1K31-4-6-4 3/8" and 1/4" T-Fitting
  • 2 RA1K10-4-6 3/8" Fitting
  • 1 - Silicone Hose 5/8" x 3'
  • 1 - Silicone Hose 3/8" x 5'
  • 1 - Silicone Hose 1/4" x 6'
  • 10 - #8 Hose Clamp
  • 4 - #4 Hose Clamp
  • 1 Installation Diagram

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are the pumps in these Rapco Vacuum System Kits new or overhauled? Is there any core charge?

All the pumps in these kits are NEW from factory. There is no core charge as there is no core necessary to return.

Q: I've a Cessna 172 with Venturis for my vacuum system. With the O-360 engine can this vacuum system and PUMP be installed? Thanks Barry

Yes, the Rapco Vacuum system will work with your O-360. This is intended for use with experimental aircraft only.

Q: How much does the RAPCO VACUUM system weigh?

Approx 4.75 lbs.
