RC Allen RCA8310-3 Series Electric Digital Turn Coordinator

0 Reviews 0 Answered Questions
Select Version:
Standard (No Battery Backup)With Backup BatteryStandard NVIS (No Battery Backup)NVIS with Backup Battery
Quantity
Add to Wishlist

Overview

The RCA8310-3 and bank instruments. It is designed to be intuitive to use, and look and react the same as a mechanical gyro instrument.

Because the RCA8310-3 has no mechanical gyroscope, it is much more stable and reliable than mechanical gyro instruments. It can be set to output all necessary signals for legacy autopilot applications. Optional features, such as Internal Battery Back-up (recommended) and NVIS compatibility are also available.

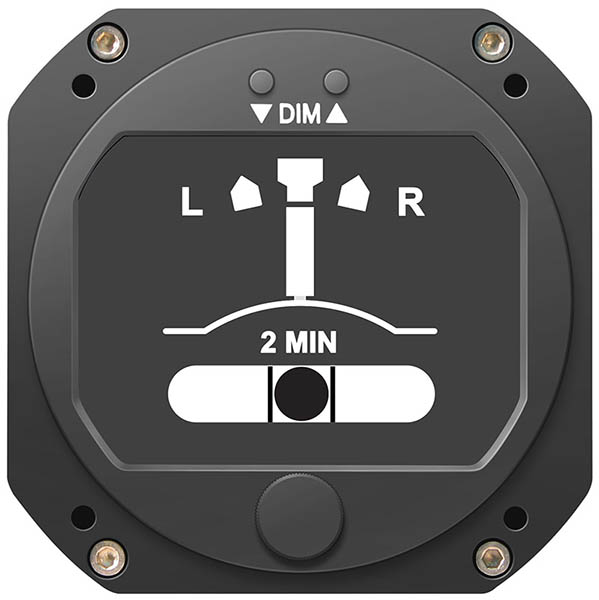

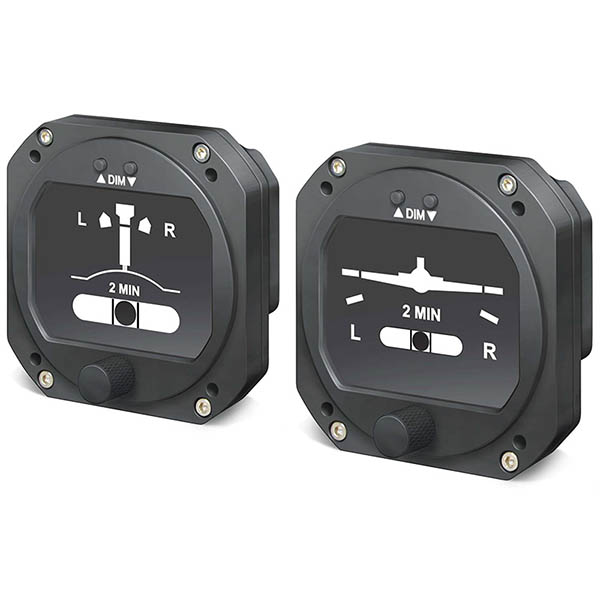

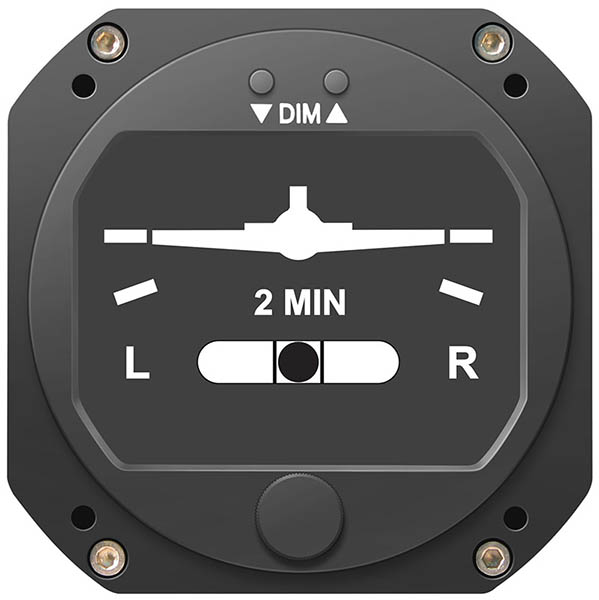

The RCA8310-3 comes standard with a variety of customizations allowing you to select between three classic/traditional looks: 1) Turn Coordinator 2) Turn and Bank (with doghouse indexes) and 3) Turn and Bank (without doghouse indexes). The autopilot output signals can be disabled if not required. Each configuration displays a ball type inclinometer (slip indicator) to show slip and skid for a coordinated turn.

Features

  • Totally self-contained
  • Quick-set Heading Bug
  • Internal Magnetometer and GPS
  • Sharp Dimmable Display
  • Dual Processor Performance
  • Multi-volt Operation (9 to 32 Volts)
  • Fits standard panel cutout
  • Vibration Resistant
  • All digital - No moving parts
  • Black anodized bezel
  • Lightweight - 8oz. Max
  • FAA Certified

Specifications

  • OPERATING VOLTAGE: 9 to 32 VDC
  • RUNNING CURRENT:
    • (14VDC SYSTEM) 0.35 AMP MAX
    • (28VDC SYSTEM) 0.20 AMP MAX
  • CIRCUIT BREAKER SIZE: 1 AMP
  • AUTOPILOT OUTPUT 0-1.6VDC
  • TC VALID SIGNAL: VALID > 9 VDCINVALID < 1 VDC
  • OPERATING TEMPERATURE RANGE: -20º TO +55º C
  • MATING CONNECTOR: DB15 2146T13 OR EQUIVALENT
  • WEIGHT: 6.75 oz
  • DISPLAY RESOLUTION: 320 X 240 Pixels, Backlight, color LCD
  • BATTERY BACKUP: Rechargeable LiPO, 3.7V 500mAh (1.85 Wh)
  • BATTERY LIFE: Up to 3 hours
  • DIMENSIONS/PANEL CUTOUT: SEE FIGURE 1.1
  • EYE VIEWING ANGLE ENVELOPE:
    • Horizontal Left and Right: 35 Left, 35 Right
    • Vertical Up and Down: 35 Up, 35 Down
    • Minimum distance from display surface: 6 inches
    • Maximum distance from display surface: 48 inches
  • SOFTWARE VERSION: Version 8.01
  • FAA SPECIFICATION CONFORMANCE: TSO-C113b, TSO-C3e, DO-160G, DO-178B Level C and DO347
  • MEETS OR EXCEEDS: AS8034C and AS8004
