RC Allen Oil Temperature Indicator

$962.00/Each
Quantity
Add to Wishlist
Part# 10-03445
MFR Model# 29-1004-10

Overview

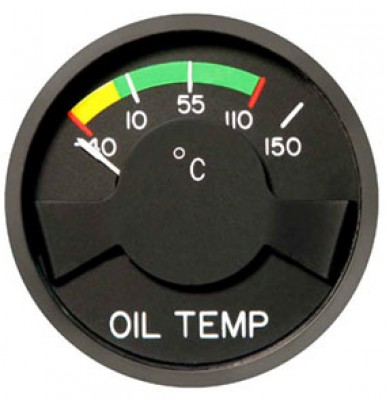

Housed in a 2" diameter case, this instrument can be calibrated in C° or F°. Oil Temperature is sensed by a MS28034-1 resistance bulb.
Made in the USA

Specifications

  • 2" Diameter x 3.12" Length
  • Weight: 0.4 lbs
  • Power: 28VDC
  • Connector: MS3112E8-4P
  • Green Arc at 0° C to 110° C
  • Yellow Arc at -40° C to 0° C
  • Red Line at -40° and 110° C
  • Connector pin out:
  • A: TEMPERATURE BULB
  • B: TEMPERATURE BULB GROUND
  • C: +28 VDC
  • D: GROUND
