Description | Part No. | Price | Buy |
---|---|---|---|
1-1/4 inch UMA Electronic Oil Temperature Gauge NON TSO Range: 100-300 deg. F | 10-00047 | $321.00 | |
1-1/4 inch UMA Electronic Oil Temperature Gauge for Rotax 912 NON TSO Range: 100-300 deg. F | 10-02779 | $321.00 | |
2-1/4 inch UMA Electronic Oil Temperature Gauge TSO Range: 100-300 deg. F | 10-02443 | $413.00 | |
2-1/4 inch UMA Electronic Oil Temperature Gauge NON TSO Range: 100-300 deg. F | 10-22285 | $282.95 |

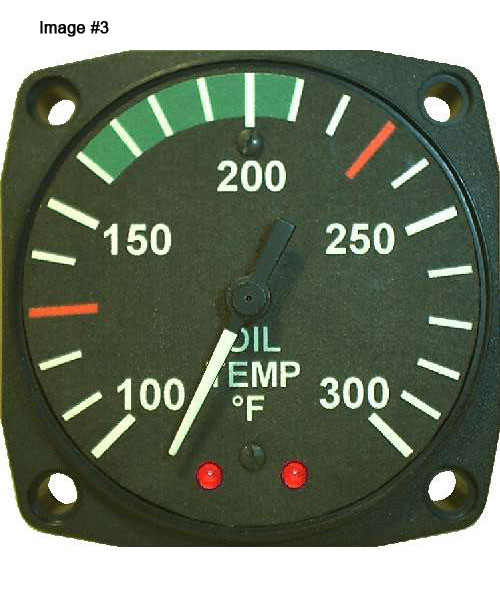

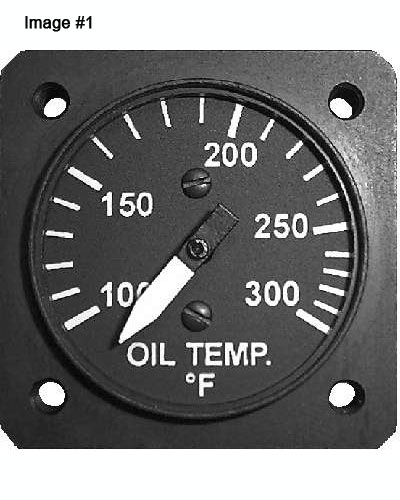

These rugged aircore gauges work with either thermocouple or thermister probes. Standard markings are black and white. 1-1/4 inch (Refer to Image #1) UMA Electronic Oil Temperature Gauge Case: Aluminum Weight: 4.0 oz. 2-1/4 inch (Refer to Image #2) UMA Electronic Oil Temperature Gauge TSO'd Case: Valox 420 Plastic Weight: 5.0 oz. 2-1/4 inch (Refer to Image #3) UMA Electronic Oil Temperature Gauge Case: Valox 420 Plastic Weight: 4.8 oz. Custom range markings available. Please see options tab. |
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
While many of UMA Gauges are TSO/PMA'd, they do not have STC's.
Per UMA, PN:10-00047 is for 5k thermistor probes while PN:10-02779 is designed for VDO temperature probes.
Any of the 1B series uma probes would work. Just depends what thread size to determine which exact part number.
No it does not. For Lycoming/Continental engines, please see part number 10-00418.
Part #'s 10-02779 and 10-02443 are FAA TSO Approved. Part #'s 10-00047 and 10-22285 are non TSO and are for experimental aircraft only.
It will not include a harness but the mating connector is included.
9-12 vdc w/overvoltage protection
12-28 VDC
