Sigma-Tek 5000B Series Standard Attitude Gyro

From $2300.00 to $3666.00
Sigma-Tek Model Display Colors Inclinometer Lighted Panel Tilt Part Number Price Buy
1U149-0105000E-13Blue/BlackNoYes0
10-04790
$2793.00
Quantity
1U149-010-15000B-37Blue/BrownNoYes0
10-01071
$2702.00
Quantity
1U149-010-45000B-54Blue/BrownNoYes8
10-04655
$2787.00
Quantity
1U149-010-55000B-64Blue/BlackNoYes8
10-04660
$2800.00
Quantity
1U149-013-1
5000B-45
Blue/BrownYesYes0
5000B-45
$3666.00
Quantity
1U149-013-3
5000B-53
Blue/BrownYesYes8
5000B-53
$3334.00
Quantity
23-501-06-95000B-20Blue/BlackNoNo0
10-00389
$2560.00
Quantity
23-501-06-12500B-24Blue/BlackNoNo8
10-04652
$2316.00
Quantity
23-501-06-165000B-36Blue/BrownNoNo0
5000B
$2394.00
Quantity
23-501-06-17
5000B-42
Blue/BrownNoNo8
5000B-42
$2300.00
Quantity
23-501-033-3
5000B-46
Blue/BrownYesNo0
5000B-46
$2927.00
Quantity
23-501-034-4500B-51Blue/BrownYesNo8
5000B-51
$2989.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

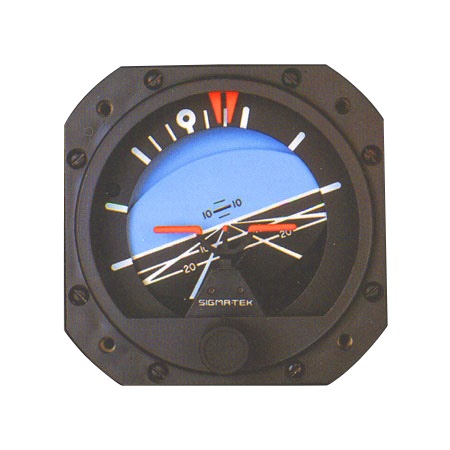

The 5000B is an air-driven gyro that has a pictorial horizon mask and fixed airplane. The mask moves to indicate climb, dive, and bank. Bank and pitch attitudes are displayed so that the pilot’s sensing of the gyro indication is the same as the interpretation of the relation between the wings of the aircraft and the natural horizon during visual flight.

This instrument is FAA certified, and can be used to replace the aircraft’s turn coordinator when equipped with an inclinometer.

The Standard configuration can replace most air driven gyros with the major difference being in the layout and colors of the display.

NOTE: Lighted instruments do not include lamp trays, please see accessories to purchase separately.

Specifications

  • Height: 3.38"
  • Width: 3.38"
  • Depth: 7.35"
  • Weight: 1.8 lbs. max.
  • Markings: Matte white
  • Finish: Dull black
  • Temperature: -30° to 50° C
  • Vibration: CPS: 5 to 50
  • Maximum Double Amplitude: 0.020 in.
  • Maximum Acceleration: 1.5 G's
  • Humidity: 0% to 95% at 32° C
  • Altitude: 0 to 40,000 ft.
  • Warning Flag: No

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can this kind of horizon work with a Cessna 172S?

The Sigma-Tek 5000 series is certified (TSO'd) and is intended for installation into a certified aircraft. The options are up to you to select.

Q: Do the Sigma-Tek 5000B gyros use cannon plugs or trays for lighting?

The 14V tray is part 10-02757. The 28V tray is part 10-02758.

Q: Are these attitude indicators new or overhauled?

These gyros are new, outright.

Q: Will this unit be a direct replacement for a 1U149-004-1 attitude indicator with a Century IIB autopilot?

No, it is not a direct replacement.

Q: Is this Sigma Tek 5000B horizon electric? or it need a vacuum pump to work?

This is an air driven(vac) gyro.
