Size | Name | Type | Range | Markings | PN | Price | Buy |
---|---|---|---|---|---|---|---|
2-1/4" | Suction | -- | 2-8 inches HG | GA 4.6-5.4 | 10-00090 | $362.00 | |
2-1/4" | Suction | -- | 0-10 inches HG | B & W | 10-01000 | $352.00 | |
2-1/4" | Suction | -- | 0-10 inches HG | GA 4-5, RR 5 | 10-02359 | $362.00 | |
1-1/4" | Gyro Suction | A | 3-7 inches HG | GA 4.5-5.2, RR 4.5 & 5.2 | 10-01010 | $348.00 | |
1-1/4" | Gyro Suction | A | 3-7 inches HG | GA 4.75-5.25, RR 4.75 & 5.25 | 10-02465 | $379.00 | |
1-1/4" | Gyro Suction | A | 3-7 inches HG | GA 4.5-5.0 | 10-02466 | $377.00 | |
1-1/4" | Gyro Suction | A | 2-6 inches HG | GA 3.8-4.4, RR 3.8 & 4.4 | 10-02467 | $377.00 | |
1-1/4" | Suction | B | 3-7 inches HG | B & W | 10-02358 | $367.00 | |
1-1/4" | Gyro Suction | A | 2-6 inches HG | GA 4.0-5.0 | 10-02468 | $377.00 | |
1-1/4" | Gyro Suction | A | 2-6 inches HG | GA 4.5-5.4, YA 2.0-4.5, RR 6.0 | 10-02469 | $376.00 | |
1-1/4" | Gyro Suction | A | 2-6 inches HG | GA 3.5-5.0, RR 3.5 & 5.0 | 10-02470 | $377.00 | |
1-1/4" | Suction Source | B | 0-10 inches HG | B & W | 10-02471 | $377.00 | |
1" | Gyro Suction | -- | 3-7 inches HG | B & W | 10-02361 | $303.00 | |
1" | Gyro Suction (FAA PMA Certified) | -- | 3-7 inches HG | GA 4.5-5.4 | 10-00311 | $331.00 | |
1" | Gyro Suction | -- | 3-7 inches HG | GA 3.5-5.0, RR 3.5 & 5.0 | 10-02464 | $313.00 |

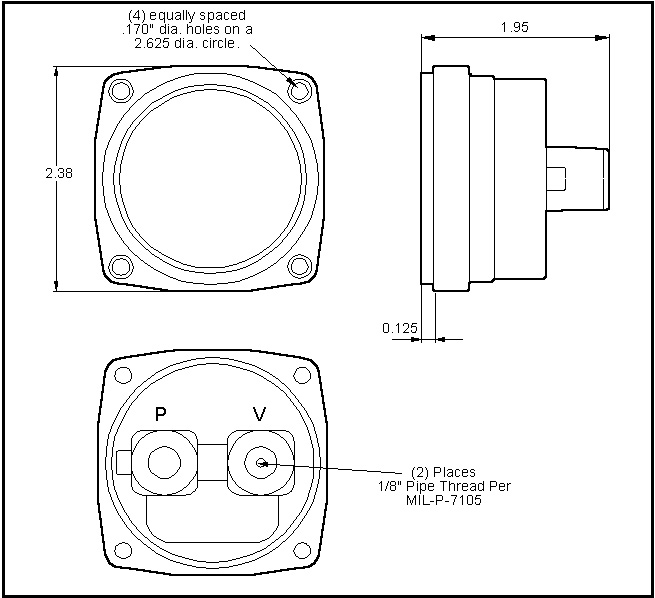

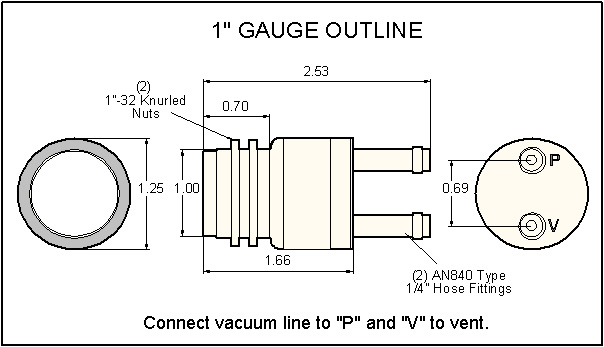

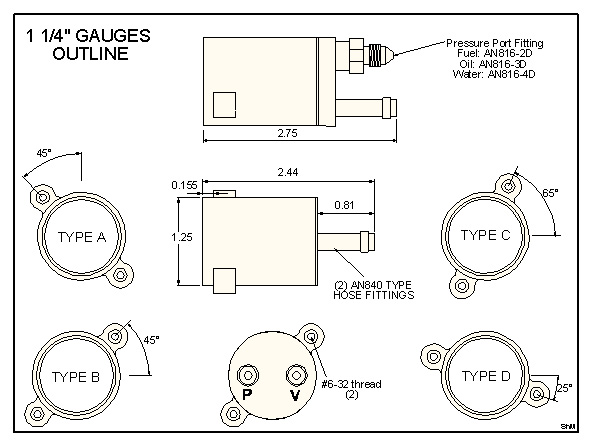

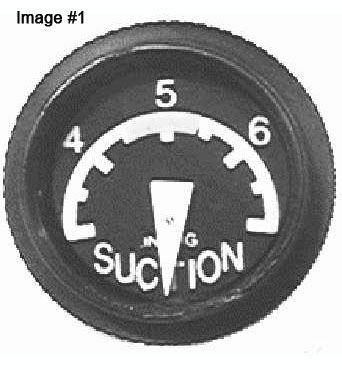

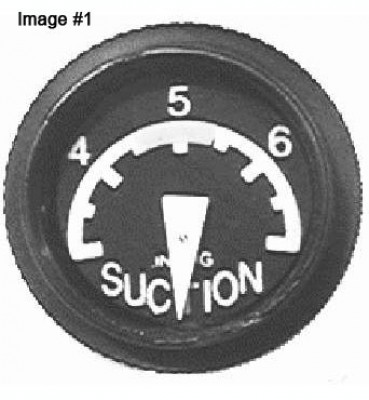

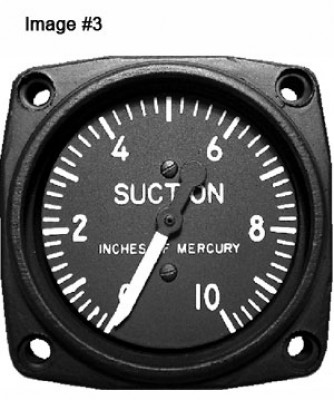

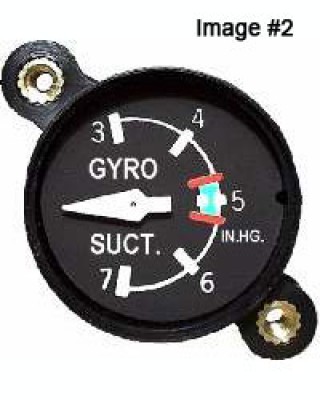

1 inch (Refer to Image#1) UMA Gyro Suction Case: Molded ABS Plastic. Weight: 1.4 oz. 1-1/4 inch (Refer to Image #2) UMA Gyro Suction Case: Molded ABS Plastic. Weight: 1.4 oz. 2-1/4 inch (Refer to Image #3) UMA Gyro Suction Case: Cast Aluminum Weight: 4.7 oz. Mounting Information Click Here for 1 inch mounting diagram Click Here for 1-1/4 inch mounting diagram Click Here for 2-1/4 inch mounting diagram For Gauge "type" please see the mounting diagram above |
UMA 1 SUCTION GAUGE 3-7 IN HG GREEN ARC 4.5-5.4
dropped right in the little Cessna 150. quick and easy. hardest part is getting the old hoses off.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The fitting on the back of the instrument is 1/8".
P - Pressure | V - Vent
You can find the mounting diagrams in the overview tab for more information. The size 1/8" pipe thread in both places.
This suction gauge does not have any certification.
