Westach Cylinder Head Temperature (CHT) Gauges Non-TSO

From $140.75 to $156.75
Description Part Number Price Buy

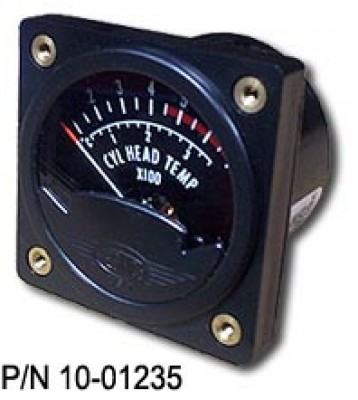

Westach 2-1/4 Square CHT 100-650F 2A1 Non-TSO
10-01235
$156.75
Quantity

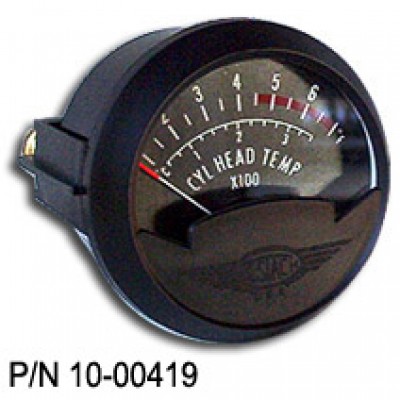

Westach 2 Round CHT 100-700F 2C1 With Marking Non-TSO
10-00419
$140.75
Quantity
Westach 2-1/4 CHT Square Gauge 25-375C 2A1-2 Non-TSO
10-01260
$156.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Westach Cylinder Head Temperature CHT. Warns of overheating. Multiple switching available.

p/n 10-01235 Range: 100-700° F
p/n 10-00419: Cylinder Head Temp Gauge Range: 100F - 700F, requires J type thermocouple (not included).
p/n 10-01260 Range: 25-375° C

Made in USA
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Works perfectly

Clay C Verified Purchase

Westach 2-1/4 Square CHT 100-650F 2A1 Non-TSO

April 20, 2023

as advertised

Gerald Verified Purchase

Westach 2-1/4 Square CHT 100-650F 2A1 Non-TSO

February 1, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Which thermocouple do we need for the Westach Cylinder Head Temperature Gauge part# 10-01235?

The Westach Cylinder Head Temperature Gauge is for use with a 48" type J"712 series thermocouple.

Q: Does the 10-00419 gauge feature temperature compensation?

Per Westach, the Cylinder Head Temperature CHT Gauge does not feature temperature compensation.

Q: Is the thermocouple included with these Westach CHT Gauges? Is it the bayonet type or spark plug gasket type?

No, this gauge does not include the probe. Please see the type J Westach thermocouple senders.

Q: How do you connect it to power and to the sender?

You connect the two via the connector kit with the unit.

Q: Will this Westach CHT gauge work on a 24 volt system?

This instrument is self-powered and does not require an external power input.

Q: Westach Cylinder Head Temperature Gauge 2A2 thermocouple required?

For use with 48" type J 712 series thermocouple.

Q: Is the part # 10-01235 back lit?

No, P/N 10-01235 is not back lit.

Q: Can this CHT be used on certified aircraft?

No, these gauges are not TSO approved and are intended for installation in experimental aircraft only.
